Stock Status: 1x unit in stock

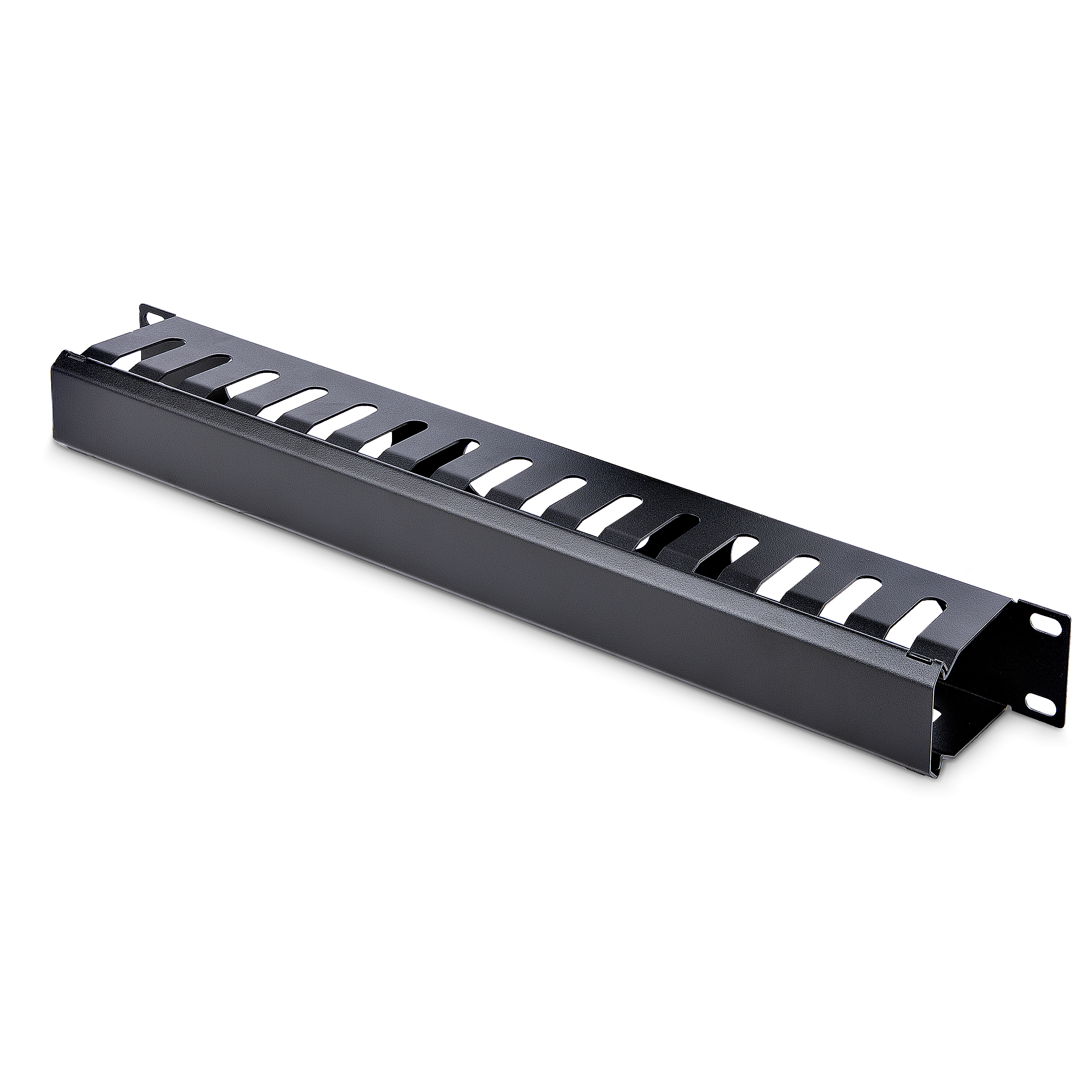

Organize cables in your server rack or cabinet with a horizontal, covered cable ductThe CMDUCT1UX 1U Finger Duct Cable Management Panel mounts to a standard 19" 2 or 4-post rack to help you organize horizontal cabling, through a covered cable duct.The cable organizer features a removable top cover that makes it easy to add or remove bundled cables quickly. The duct also offers a series of fingers on either side, as well as pass-through holes at the back to help you route your cables where you need them, and reduce cable strain in the process.Made of high-quality steel, the cable manager is a durable solution for your server room or wiring closet. For easy installation, this horizontal cable organizer comes complete a set of M6 screws.Backed by a StarTech.com 2-year warranty.The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
72 mm |
| Depth |
483 mm |
| Height |
44 mm |
| Weight |
700 g |
| Features |
| Type |
Cable management panel |
| Product colour |
Black |
| Housing material |
Steel |
| Rack capacity |
1U |
| Compliance industry standards |
EIA RS310-D |
| Certification |
CE |
| Country of origin |
China |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging content |
| Screws included |
Y |
| Screw type |
M5, M6 |
| Number of screws |
4 |
| Cage nuts included |
Y |
| Number of cage nuts |
4 |
| Washers included |
Y |
| Number of washers included |
4 |
| Logistics data |
| Master (outer) case width |
565 mm |
| Master (outer) case length |
640 mm |
| Master (outer) case height |
460 mm |
| Products per master (outer) case |
16 pc(s) |
| Harmonized System (HS) code |
85389099 |
| Packaging data |
| Package width |
545 mm |
| Package depth |
105 mm |
| Package height |
145 mm |
| Package weight |
1.2 kg |
Features
StarTech.com Horizontal 1U Server Rack Cable Management Finger Duct w/ Cover - 19" Network Rack Wire Duct Raceway Panel - Slotted Wire Duct. Type: Cable management panel, Product colour: Black, Housing material: Steel. Width: 72 mm, Depth: 483 mm, Height: 44 mm. Package width: 545 mm, Package depth: 105 mm, Package height: 145 mm. Screw type: M5, M6. Master (outer) case width: 565 mm, Master (outer) case length: 640 mm, Master (outer) case height: 460 mm
Product Description
Organize cables in your server rack or cabinet with a horizontal, covered cable ductThe CMDUCT1UX 1U Finger Duct Cable Management Panel mounts to a standard 19" 2 or 4-post rack to help you organize horizontal cabling, through a covered cable duct.The cable organizer features a removable top cover that makes it easy to add or remove bundled cables quickly. The duct also offers a series of fingers on either side, as well as pass-through holes at the back to help you route your cables where you need them, and reduce cable strain in the process.Made of high-quality steel, the cable manager is a durable solution for your server room or wiring closet. For easy installation, this horizontal cable organizer comes complete a set of M6 screws.Backed by a StarTech.com 2-year warranty.The StarTech.com Advantage
