startech Startech.com 4pt Pcie Sata3 Raid Card Hyperduo Ssd Pexsat34rh - AD01
[PEXSAT34RH]

Name: startech Startech.com 4pt Pcie Sata3 Raid Card Hyperduo Ssd Pexsat34rh - AD01
Brand: STARTECH
SKU: PEXSAT34RH
Price: 74.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: PEXSAT34RH

Manufacturer: STARTECH

Condition: New

Short Description:

startech Startech.com 4pt Pcie Sata3 Raid Card Hyperduo Ssd Pexsat34rh

£74.00
£88.80 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

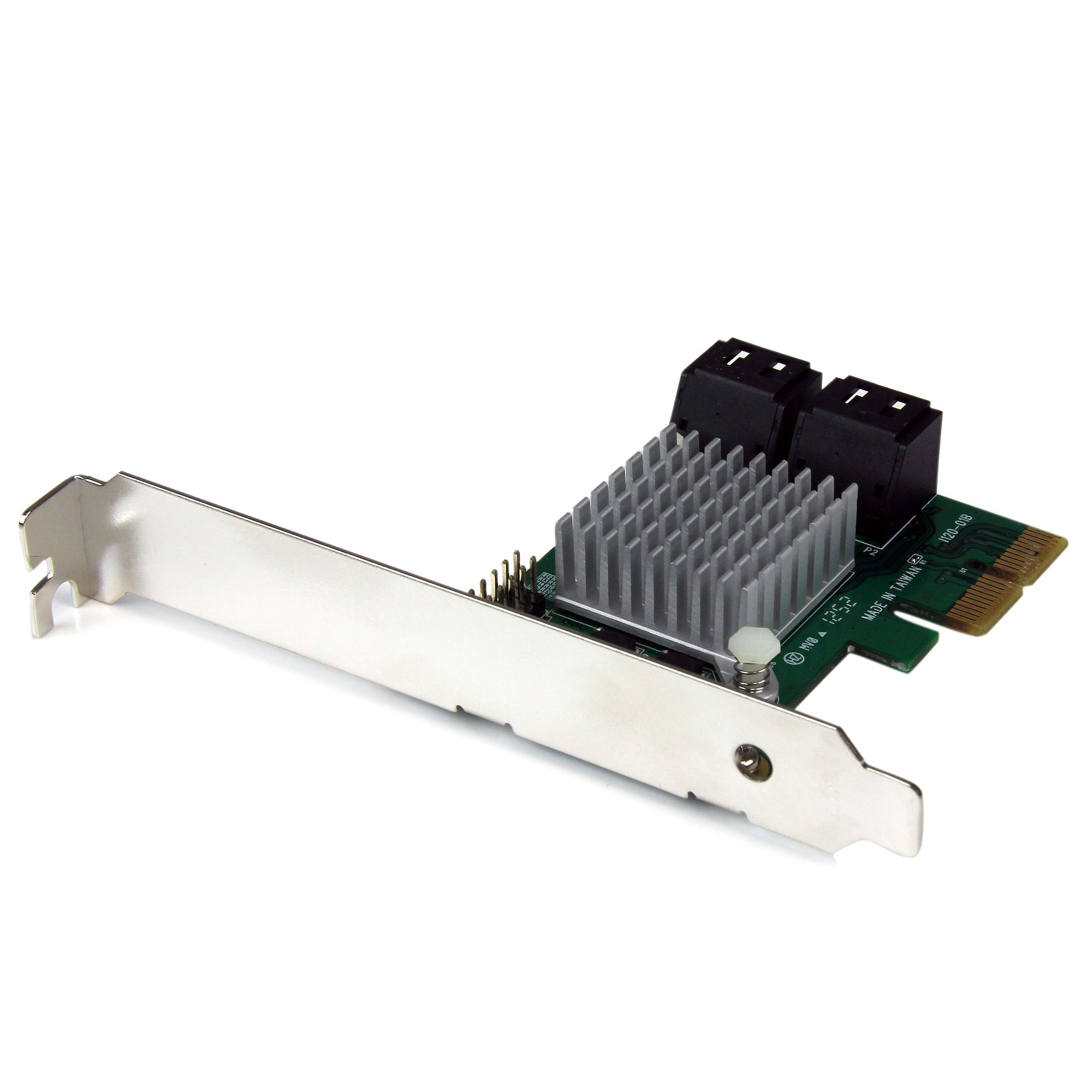

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs). Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support. The StarTech.com Advantage - Leverage SSD performance and standard HDD capacity with HyperDuo technology - Maximize system capability with SATA III connection speeds - Fit any standard or low profile chassis with included brackets

Reviews

Specs

Weight & dimensions
Width	120 mm
Depth	70 mm
Height	20 mm
Weight	49 g
Package width	145 mm
Package depth	175 mm
Package height	32 mm
Package weight	141 g
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Ports & interfaces
Supported storage drive interfaces	Serial ATA, Serial ATA III
Host interface	PCI Express
PCI Express slots version	2.0
Internal SATA ports quantity	4
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterpr
Mac compatibility	Y
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other features
Manual	Y
Drivers included	Y
PCI Card form factor	Full-height (low-profile)
Performance
RAID levels	0, 1, 10, JBOD
Data transfer rate	6 Gbit/s
SSD support	Y
Chipset	Marvell - 88SE9230
Logical block addressing (LBA) support	48 bit
Technical details
Sustainability compliance	Y
Sustainability certificates	CE, RoHS
Logistics data
Master (outer) case width	381 mm
Master (outer) case length	488 mm
Master (outer) case height	321 mm
Products per master (outer) case	60 pc(s)
Harmonized System (HS) code	84733080

Features

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering. Supported storage drive interfaces: Serial ATA, Serial ATA III, Host interface: PCI Express. RAID levels: 0, 1, 10, JBOD, Data transfer rate: 6 Gbit/s, Chipset: Marvell - 88SE9230. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 120 mm, Depth: 70 mm, Height: 20 mm. Master (outer) case width: 381 mm, Master (outer) case length: 488 mm, Master (outer) case height: 321 mm

Product Description

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs). Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support. The StarTech.com Advantage - Leverage SSD performance and standard HDD capacity with HyperDuo technology - Maximize system capability with SATA III connection speeds - Fit any standard or low profile chassis with included brackets
