Stock Status: 1x unit in stock

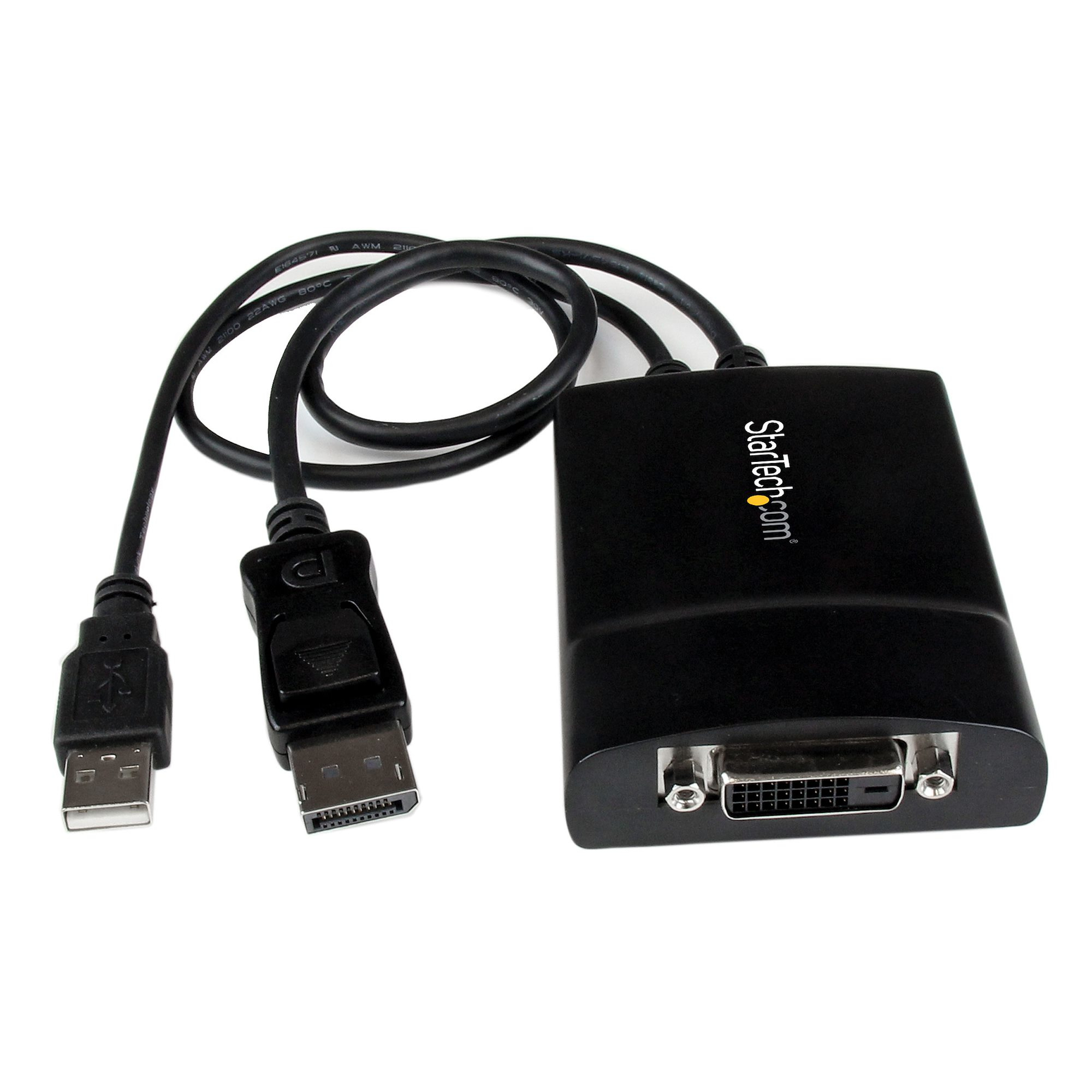

Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applicationsThe DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.Back by StarTech.com 3-year warranty, with free lifetime technical support.The StarTech.com Advantage
Specs
| Features |
| Cable length |
0.37 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Power source |
USB |
| HDCP |
Y |
| DisplayPort version |
1.2 |
| Dual Link DVI |
Y |
| Maximum resolution |
2560 x 1600 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum refresh rate |
120 Hz |
| HBR2 support |
Y |
| Product colour |
Black |
| Converter type |
Active video converter |
| Certification |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Weight & dimensions |
| Weight |
160 g |
| Width |
64 mm |
| Depth |
549 mm |
| Height |
22 mm |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
337 mm |
| Master (outer) case length |
497 mm |
| Master (outer) case height |
220 mm |
| Products per master (outer) case |
28 pc(s) |
| Packaging data |
| Package width |
174 mm |
| Package depth |
143 mm |
| Package height |
35 mm |
| Package weight |
232 g |
| Sustainability |
| Sustainability certificates |
CE, RoHS |
Features
StarTech.com DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector. Cable length: 0.37 m, Connector 1: DisplayPort, Connector 2: DVI-D. Sustainability certificates: CE, RoHS. Weight: 160 g, Width: 64 mm, Depth: 549 mm. Package width: 174 mm, Package depth: 143 mm, Package height: 35 mm. Master (outer) case width: 337 mm, Master (outer) case length: 497 mm, Master (outer) case height: 220 mm
Product Description
Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applicationsThe DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.Back by StarTech.com 3-year warranty, with free lifetime technical support.The StarTech.com Advantage
