Stock Status: 1x unit in stock
Share a keyboard, mouse and HDMI monitor between 2 multimedia computers

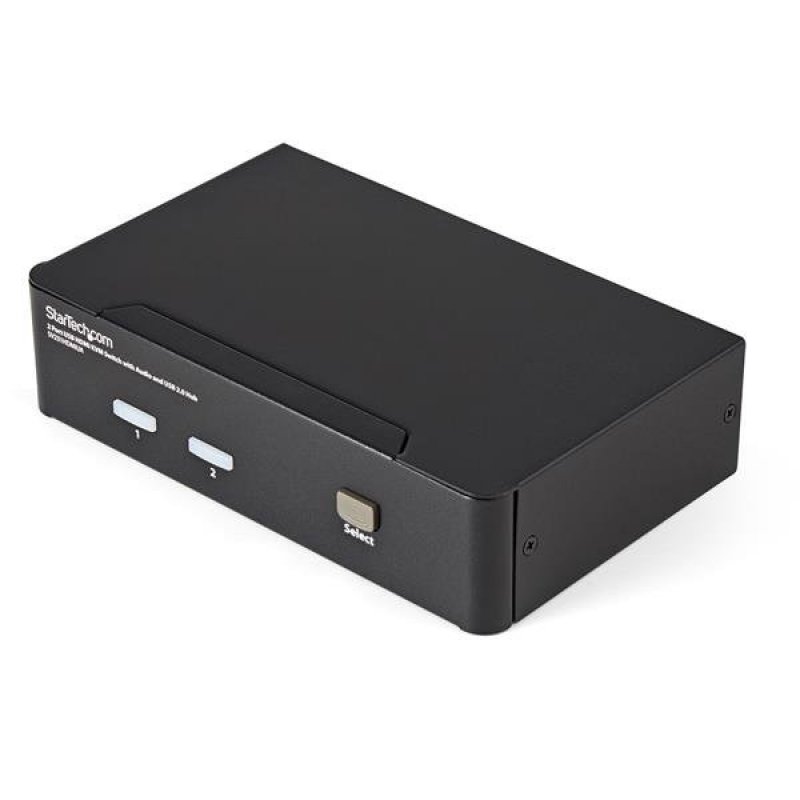

The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC
- Versatile audio support for both HDMI audio and 3.5mm analog audio
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity |
4 |
| Headphone outputs |
3 |
| Number of microphone inputs |
3 |
| Weight & dimensions |
| Width |
125 mm |
| Depth |
70 mm |
| Height |
40 mm |
| Weight |
634 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| AC input voltage |
100 - 240 V |
| DC input voltage |
12 V |
| Input current |
0.8 A |
| Output current |
1.5 A |
| Power consumption (typical) |
18 W |
| Power plug type |
Type M |
| Display |
| On Screen Display (OSD) |
N |
| Packaging content |
| Manual |
Y |
| AC adapter included |
Y |
| Rubber feet |
Y |
| Other features |
| Connectivity technology |
Wired |
| Dimensions (WxDxH) |
124.8 x 70 x 40 mm |
| Ports quantity |
2 |
| Power requirements |
AC 110 - 240 V |
| I/O ports |
1x HDMI (F)
4x USB A (F)
6x 3.5mm (F)
2x USB B (F)
2x mini-HDMI (F) |
| Design |
| Rack mounting |
N |
| Product colour |
Black |
| Mean time between failures (MTBF) |
126813 h |
| Certification |
R0HS |
| Performance |
| HD type |
Full HD |
| Maximum resolution |
1920 x 1200 pixels |
| Daisy chain |
N |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Packaging data |
| Package width |
188 mm |
| Package depth |
250 mm |
| Package height |
100 mm |
| Package weight |
1.1 kg |
Features
StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels. Product colour: Black, Mean time between failures (MTBF): 126813 h, Certification: R0HS. AC input voltage: 100 - 240 V, DC input voltage: 12 V, Input current: 0.8 A. Width: 125 mm, Depth: 70 mm, Height: 40 mm
Product Description
Share a keyboard, mouse and HDMI monitor between 2 multimedia computers
The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC
- Versatile audio support for both HDMI audio and 3.5mm analog audio
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
