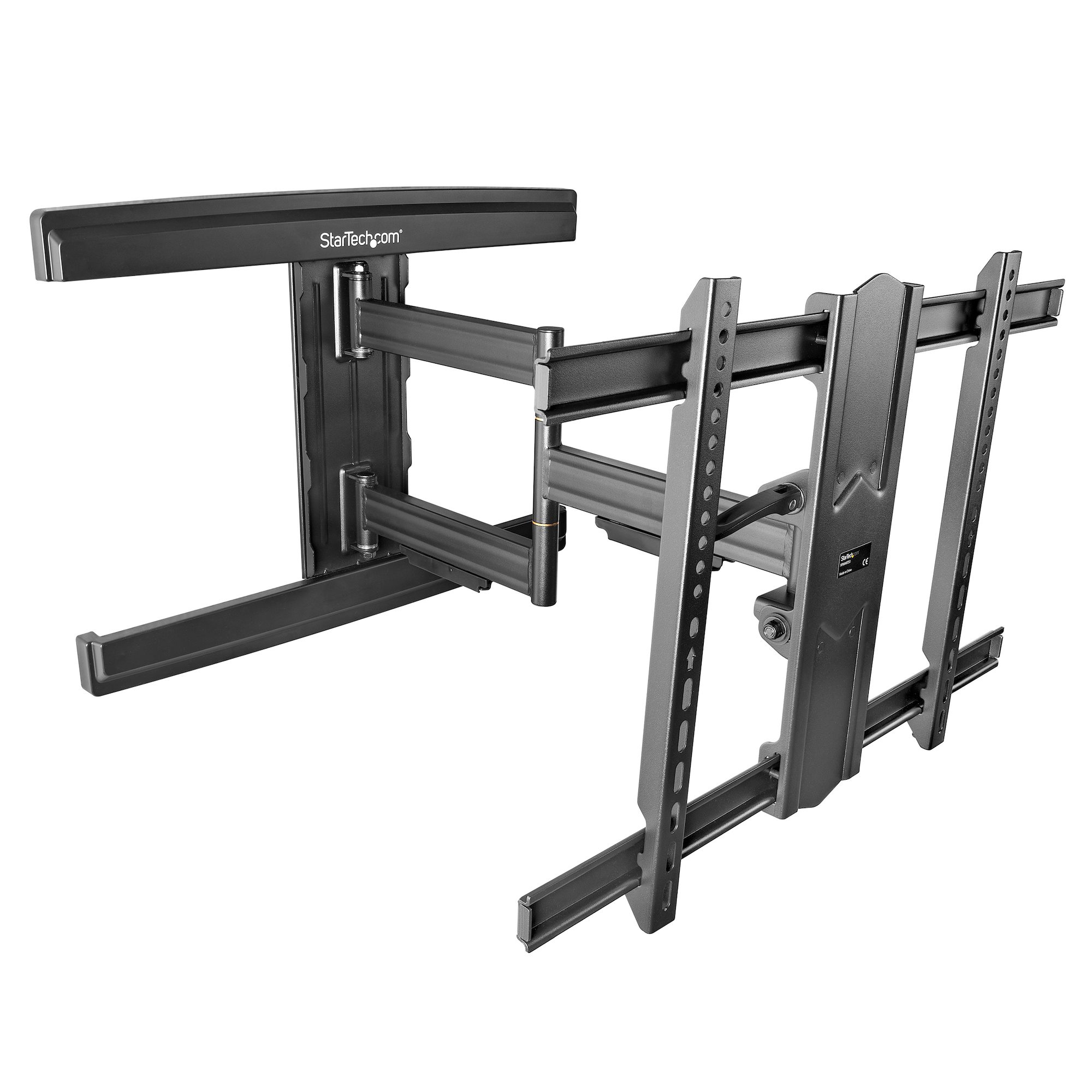

Display Wall Mount | Steel | For up to 80" Displays
With its contemporary design, featuring a long extension arm with a large swivel range, this full motion TV wall mount for large-screen displays is the perfect choice for versatile viewing. You can extend the swiveling arm out to adjust your screen position, making it easy to view your display from numerous angles within the room.
Save Space
This adjustable wall mount TV bracket is ideal for a meeting space, lobby, boardroom, classroom or other venues. The monitor mount provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while freeing up valuable space.?
Robust Steel Construction
Engineered from high-grade steel, the flat-screen TV wall mount securely supports VESA mount displays, including curved TVs, 37" to 80" with a weight capacity of 110 lb. (50 kg).
Full-Motion Adjustment
With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 25.5" (65 cm) to adjust the position of your display. Swivel the arm with ease, up to 90 degrees to the left or right, to position your TV for comfortable viewing.
You can also retract the arm back, to nest against the wall. With its low-profile design, the articulating TV wall mount enables your display to sit just 2.8" (70 mm) from the wall.
Find the Right Viewing Angle
Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare.
The tilting TV wall mount also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after you've installed it, to ensure your display is level.
Easy to Install
The universal swivel TV wall mount is easy to install. The television mounting brackets for flat screen displays feature a post-installation lateral shift, to help adjust and center the mount on the wall, even with off-center studs. Cable management keeps cables neatly organized.
FPWARTS1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- LARGE 80" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 80 inch (110 lb/50 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-3° LCD screen level adjustment & arms allow low-profile at 2.8" (70 mm) from wall or extend to 25.5" (650 mm)
- LATERAL ADJUSTMENT: Full motion TV wall mount w/ post-install lateral shifting lets you center the display on a wall or corner, w/ 16"/24" off-centered studs w/ range of 45.8"/1.1m from left to right
Specs
| Weight & dimensions |
| Width |
465 mm |
| Depth (max) |
65 cm |
| Height |
935 mm |
| Weight |
13 kg |
| Packaging data |
| Package width |
546 mm |
| Package depth |
740 mm |
| Package height |
95 mm |
| Package weight |
14.2 kg |
| Mounting |
| Maximum weight capacity |
50 kg |
| Maximum screen size |
2.03 m (80") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 100 mm |
| Maximum VESA mount |
600 x 400 mm |
| Minimum screen size |
94 cm (37") |
| Panel mounting interface |
200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 |
| Number of displays supported |
1 |
| Ergonomics |
| Tilt angle range |
-15 - 2° |
| Swivel angle range |
-90 - 90° |
| Pivot angle |
-90 - 90° |
| Cable management |
Y |
| Distance to the wall (max) |
65 cm |
| Distance to the wall (min) |
7 cm |
| Other features |
| Screw type |
M5, M6, M8 |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Certification |
CE, REACH |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging content |
| Decorative cover included |
Y |
| Number of decorative covers included |
2 pc(s) |
| Anchors included |
Y |
| Number of anchors included |
6 |
| Washers included |
Y |
| Wrench type |
Hexagonal wrench |
| Number of washers included |
14 |
| Spacer included |
Y |
| Number of spacers included |
16 |
| Screws included |
Y |
| Number of screws |
30 |
| Manual |
Y |
| Logistics data |
| Master (outer) case width |
560 mm |
| Master (outer) case length |
745 mm |
| Master (outer) case height |
210 mm |
| Products per master (outer) case |
2 pc(s) |
| Harmonized System (HS) code |
85299097 |
Features
StarTech.com TV Wall Mount for up to 80 inch (110lb) VESA Mount Displays - Low Profile Full Motion Universal TV Wall Mount Bracket - Heavy Duty Adjustable Tilt/Swivel Articulating Arm. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -15 - 2°, Swivel angle range: -90 - 90°, Distance to the wall (min): 7 cm, Distance to the wall (max): 65 cm. Product colour: Black
