startech Startech.com Usb-c Multiport Adapter 4k 60hz Hdmi Pd Dkt31ch2cpd3 - AD01
[DKT31CH2CPD3]

Name: startech Startech.com Usb-c Multiport Adapter 4k 60hz Hdmi Pd Dkt31ch2cpd3 - AD01
Brand: STARTECH
SKU: DKT31CH2CPD3
Price: 53.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: DKT31CH2CPD3

Manufacturer: STARTECH

Condition: New

Short Description:

startech Startech.com Usb-c Multiport Adapter 4k 60hz Hdmi Pd Dkt31ch2cpd3

£53.00
£63.60 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

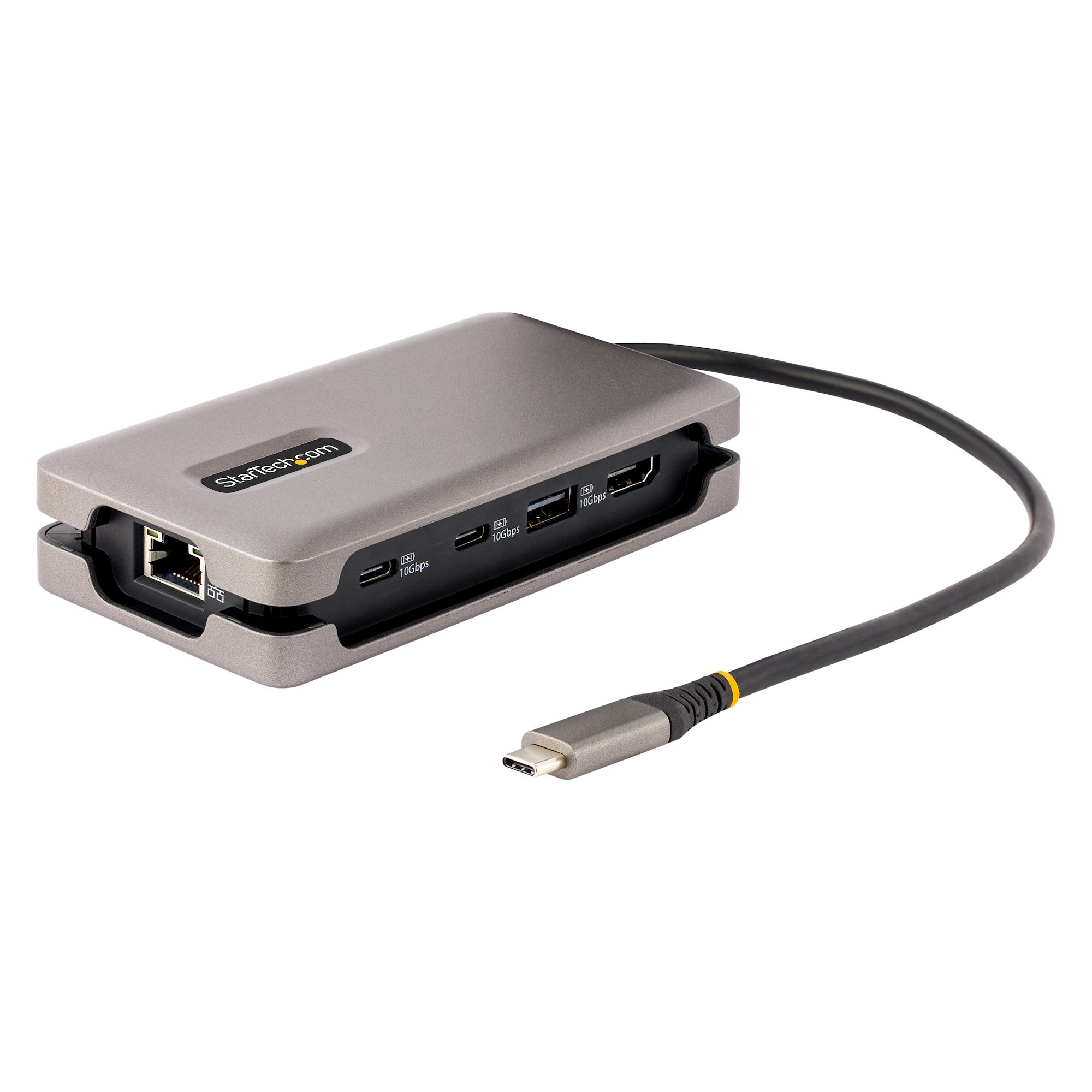

4K 60Hz HDMI | 100W PD Pass-Through | 12" (30cm) Cable | 3-Port USB Hub (10Gbps)This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.Enhance ProductivityThe portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.Host ConnectionMaximum ResolutionDP 1.4 Alternate ModeUp to 4K 60HzDP 1.2 Alternate ModeUp to 4K 30HzConnect and Charge Your USB DevicesThe USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.Portable ConnectivityFor use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:• Advanced Windows Layout Utility: Setup and save custom windows layouts.• Mac Address Pass-Through Utility: To improve network security.• USB Event Monitoring Utility: To track and log connected USB devices• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThis product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Reviews

Specs

Weight & dimensions
Width	64 mm
Depth	124 mm
Height	26 mm
Weight	93 g
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
HDMI ports quantity	1
Microphone in	N
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Y
Power
Power source type	USB
Power consumption (typical)	15 W
Other features
Cable length	0.3 m
Chipset	Realtek - RTD2172L, Realtek - RTL8153B, VIA - VL822, VIA - VL103
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Networking
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Full duplex	Y
Performance
Product colour	Grey
Card reader integrated	N
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
High Dynamic Range (HDR) supported	Y
LED indicators	Y
UASP support	Y
Housing material	Plastic
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Linux operating systems supported	Y
Mobile operating systems supported	Android, iPadOS
Other operating systems supported	Chrome
Packaging data
Package width	143 mm
Package depth	172 mm
Package height	30 mm
Package weight	149 g
Logistics data
Products per master (outer) case	70 pc(s)
Master (outer) case width	465 mm
Master (outer) case length	335 mm
Master (outer) case height	440 mm
Sustainability
Sustainability compliance	Y
Sustainability certificates	CE, RoHS

Features

StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cable, Laptop Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power consumption (typical): 15 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mobile operating systems supported: Android, iPadOS

Product Description

4K 60Hz HDMI | 100W PD Pass-Through | 12" (30cm) Cable | 3-Port USB Hub (10Gbps)This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.Enhance ProductivityThe portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.Host ConnectionMaximum ResolutionDP 1.4 Alternate ModeUp to 4K 60HzDP 1.2 Alternate ModeUp to 4K 30HzConnect and Charge Your USB DevicesThe USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.Portable ConnectivityFor use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:• Advanced Windows Layout Utility: Setup and save custom windows layouts.• Mac Address Pass-Through Utility: To improve network security.• USB Event Monitoring Utility: To track and log connected USB devices• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThis product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
