Stock Status: 1x unit in stock

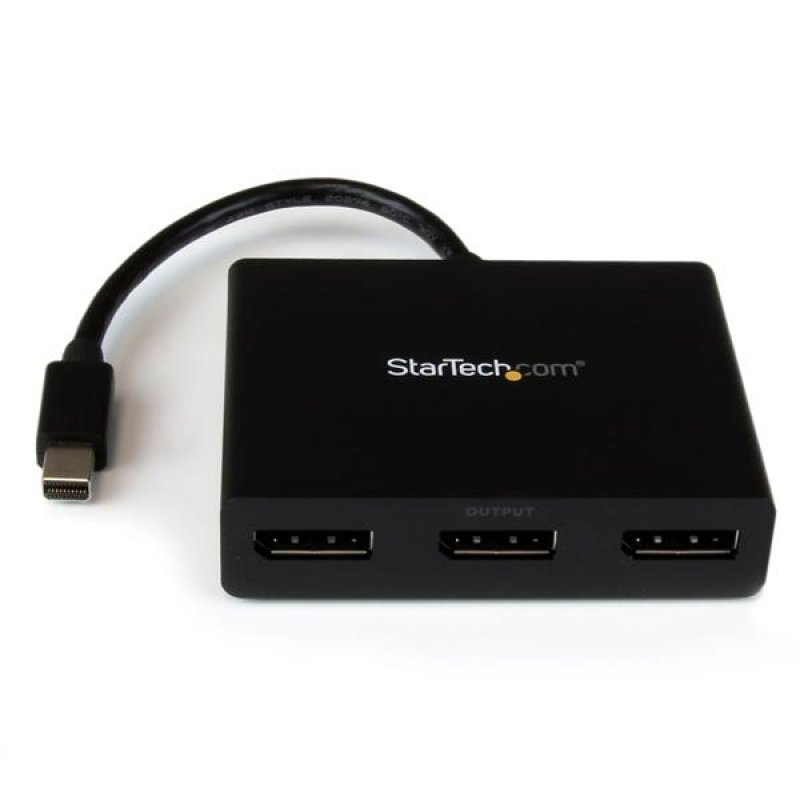

This MST hub lets you connect three DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won’t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
Works with any monitor, television or projector
With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
The MSTMDP123DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specs
| Technical details |
| Plug and Play |
Y |
| Housing material |
Plastic |
| Sustainability certificates |
RoHS |
| Packaging content |
| Manual |
Y |
| AC adapter included |
Y |
| Included power plug types |
AU,EU,NA,UK |
| Ports & interfaces |
| Video ports quantity |
3 |
| Video port type |
Mini DisplayPort |
| Connector(s) |
Mini-DisplayPort |
| Video out |
3x DisplayPort |
| Weight & dimensions |
| Dimensions (WxDxH) |
78 x 200 x 20 mm |
| Weight |
87 g |
| Package length |
24.2 cm |
| Package width |
154 mm |
| Package height |
66 mm |
| Package weight |
600 g |
| Width |
78 mm |
| Depth |
386 mm |
| Height |
20 mm |
| Power |
| Input voltage |
110 - 240 V |
| Input current |
0.5 A |
| Output voltage |
5 V |
| Output current |
3 A |
| Power consumption (typical) |
15 W |
| AC input voltage |
110 - 240 V |
| Colour |
| Product colour |
Black |
| Video |
| Supported graphics resolutions |
1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |
| Maximum resolution |
3840 x 2160 pixels |
| Packaging data |
| Package length |
24.2 cm |
| Package width |
228 mm |
| Package height |
55 mm |
| Package weight |
400 g |
| Package depth |
155 mm |
| Certificates |
| Certification |
CE, FCC, RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| System requirements |
| Windows operating systems supported |
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
| Logistics data |
| Master (outer) case width |
33.7 cm |
| Master (outer) case length |
49.6 cm |
| Master (outer) case height |
22.4 cm |
| Quantity per master (outer) case |
10 pc(s) |
| Products per master (outer) case |
10 pc(s) |
| Features |
| Maximum resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| Housing material |
Plastic |
| Supported graphics resolutions |
1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160 |
| Plug and Play |
Y |
| Certification |
CE, FCC, RoHS |
| Windows operating systems supported |
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
| RoHS compliance |
Y |
| Cable length |
0.19 m |
Features
StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP. Video port type: Mini DisplayPort, Video out: 3x DisplayPort. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Plastic. AC input voltage: 110 - 240 V, Input current: 0.5 A, Output voltage: 5 V. Width: 78 mm, Depth: 386 mm, Height: 20 mm. Package width: 228 mm, Package depth: 155 mm, Package height: 55 mm
Product Description
This MST hub lets you connect three DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won’t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
Works with any monitor, television or projector
With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
The MSTMDP123DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 2-year StarTech.com warranty and free lifetime technical support.
