Stock Status: 1x unit in stock

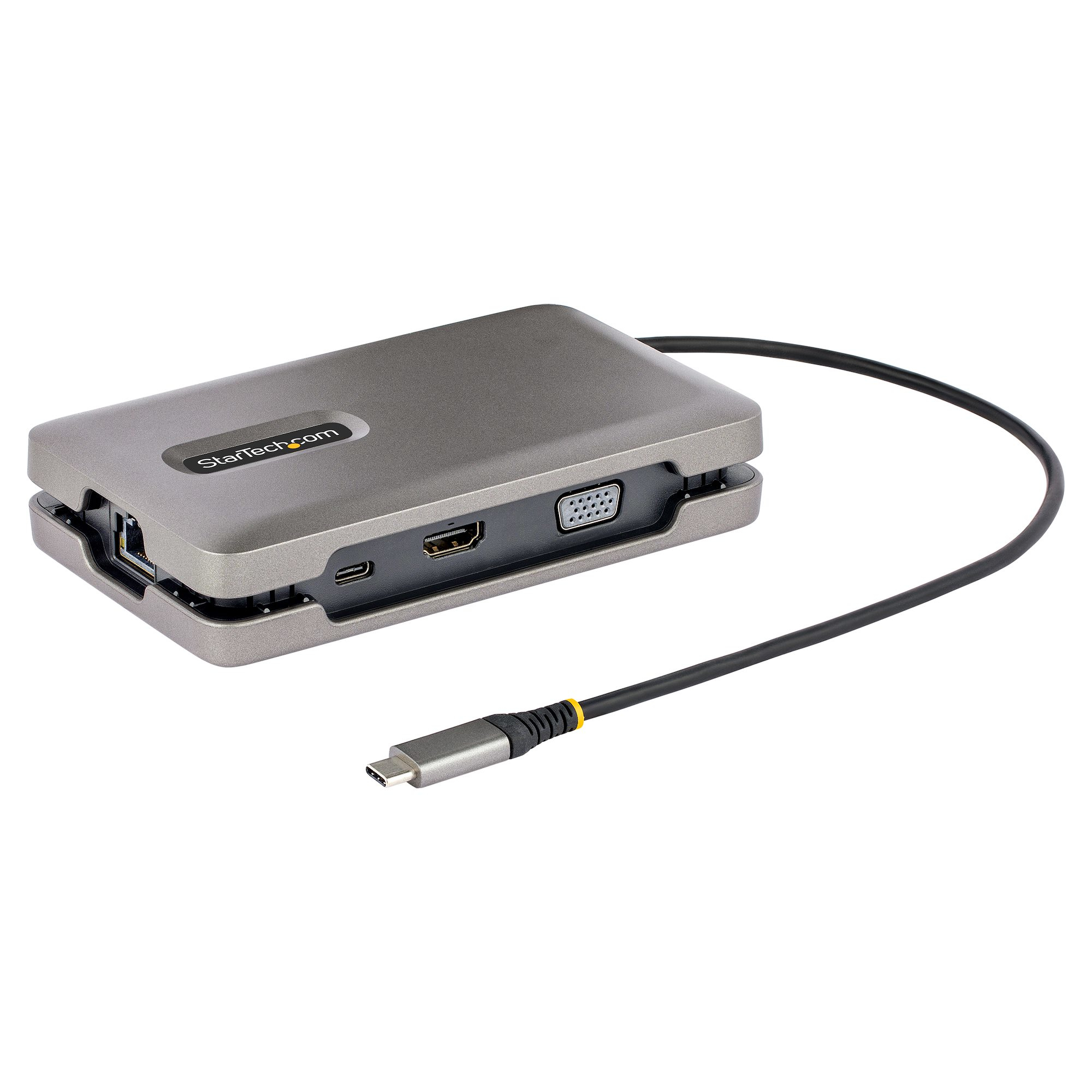

Portable Docking Station | Up to 4K 60Hz HDMI | VGA | GbE | Thunderbolt™ 3 & 4 CompatibleThis USB-C™ Multiport Adapter/Docking Station with DisplayPort™ 1.4 (Alt Mode) and Multi-Stream Transport (MST), features three video output options (HDMI, VGA and USB-C video) to support a single or multi-monitor workstation. The USB-C video port supports USB 3.2 Gen 2 (10Gbps) with 10W of power, to connect a USB-C monitor or a USB-C peripheral. In addition, the Docking Station also features a 2-Port USB-A 3.2 Gen 2 (10 Gbps) Hub, a Gigabit Ethernet port, and providing advanced charging through a USB Power Delivery (PD) 3.0 pass-through port. The Multiport Adapter connects to a laptop's USB-C or Thunderbolt 3/4™ port, using the integrated 10-inch (25cm) USB-C cable.Versatile, High-Performance Video via MSTThe compact USB Type-C Docking Station features three video output options to turn your laptop into a single or multi-monitor workstation.HDMI PortProvides HDR video with resolutions up to 4K 60Hz.VGA PortProvides analog video with resolutions up to 1080p 60Hz.USB-C PortProvides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter.The advanced video versatility of this Multiport Adapter, makes it suitable for a wide variety of applications:• Connect a portable USB-C monitor as an extended display, to obtain a high resolution external monitor during on-the-go travel between an office desk, home office, hot desk, or the boardroom.• Connect a USB-C peripheral to the downstream 10Gbps USB-C port, while using the HDMI and/or VGA ports to connect external monitor(s) as extended display(s).• Connect multiple external monitors as extended displays, using any combination of the two video ports, to create a high-productivity workstation. USB-C video adapters (sold separately) can be used to connect HDMI, DVI, VGA, or DisplayPort monitors to the USB-C video port.This Docking Station utilizes MST to obtain video versatility. Video performance is based upon the number of attached monitors and the host computer's video controller. Consult the manufacturer of the host computer to determine MST video performance. StarTech.com performs rigorous performance benchmarks with all major host computer video controllers. The video performance results of our testing are listed below:HDMI Port - Single MonitorUSB-C DP Alt Mode Port - Single MonitorVGA Port - Single MonitorMaximum Resolution Dual Display (MST)DisplayPort 1.2 Alt ModeIntel Ice Lake 11th Gen and Previous Generation Processors4K 30Hz4K 30Hz1080p1080p + 1080pDisplayPort 1.4 Alt ModeIntel Tiger Lake, Alder Lake, and Later Generation Processors4K 30Hz4K 30Hz1080p4K 30Hz + 1080pDisplayPort 1.4 Alt ModeDiscrete GPU4K 60Hz4K 60HZ1080p4K 30Hz + 4K30Hz (HDMI & USB-C)Notes:• This chart displays maximum performance capabilities. Performance varies depending on system configuration. Check with your host computer manufacturer to determine expected video performance.• A laptop with a discrete GPU is recommended for maximum performance.Connect Your DevicesThe USB 3.2 Gen 2 (10Gbps) hub features two USB-A ports and one USB-C port, for connecting your USB devices. The downstream USB-C port can be used to connect a monitor, or USB-C peripheral with up to 10W (5V/2A) of power, to power or charge your peripherals.Multiple Use CasesA versatile docking solution for use at an office desk, home office, hot desk, or in the boardroom. It's portable enough to be carried in a bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the USB Power Delivery pass-through port - for full laptop and USB-C peripheral charging. The lightweight docking station features a built-in 10 in (25 cm) USB-C host cable for added setup flexibility and to reduce port strain with laptop connection elevated off desktop surface.Charge Your Laptop and PeripheralsWith support for USB PD 3.0 (100W - 80W charging, 20W reserved for multiport adapter), the Multiport Adapter enables charging of the host computer and peripherals connected to the USB-C port. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. PD 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).Reliable Network ConnectivityThe Gigabit Ethernet port ensures reliable wired network access. Support for Wake-on-LAN (WoL) enables remote booting of the host computer.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : Setup and save custom windows layouts.•MAC Address Pass-Through Utility : Improve network security.•USB Event Monitoring Utility : Track and log connected USB devices.•Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThis product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
83 mm |
| Depth |
144 mm |
| Height |
28 mm |
| Weight |
170 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity |
1 |
| Microphone in |
N |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB Power Delivery |
Y |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.0b |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Y |
| Power |
| Power source type |
USB |
| Power consumption (typical) |
12 W |
| Packaging content |
| Quick start guide |
Y |
| Other features |
| Cable length |
0.25 m |
| Chipset |
Genesys Logic - GL3590, Genesys Logic - GL9510-UFP, Genesys Logic - GL9510-DFP, Realtek - RTD2142, Realtek - RTL8153 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Full duplex |
Y |
| Performance |
| Product colour |
Grey |
| Card reader integrated |
N |
| Data transfer rate |
10 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Maximum analog resolution |
1920 x 1200 pixels |
| Maximum refresh rate |
60 Hz |
| High Dynamic Range 10 (HDR10) |
Y |
| LED indicators |
Activity, Link |
| UASP support |
Y |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Other operating systems supported |
Chrome |
| Packaging data |
| Package width |
144 mm |
| Package depth |
207 mm |
| Package height |
38 mm |
| Package weight |
160 g |
| Logistics data |
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
425 mm |
| Master (outer) case length |
230 mm |
| Master (outer) case height |
330 mm |
| Sustainability |
| Sustainability certificates |
CE, RoHS |
Features
StarTech.com USB-C Multiport Adapter with USB-C DP Alt Mode Video Output/4K HDMI 2.0/VGA, USB-C Dual Monitor Docking Station, 100W PD Pass-Through, USB Type C Mini Dock/MST Adapter Hub. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power consumption (typical): 12 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Other operating systems supported: Chrome
Product Description
Portable Docking Station | Up to 4K 60Hz HDMI | VGA | GbE | Thunderbolt™ 3 & 4 CompatibleThis USB-C™ Multiport Adapter/Docking Station with DisplayPort™ 1.4 (Alt Mode) and Multi-Stream Transport (MST), features three video output options (HDMI, VGA and USB-C video) to support a single or multi-monitor workstation. The USB-C video port supports USB 3.2 Gen 2 (10Gbps) with 10W of power, to connect a USB-C monitor or a USB-C peripheral. In addition, the Docking Station also features a 2-Port USB-A 3.2 Gen 2 (10 Gbps) Hub, a Gigabit Ethernet port, and providing advanced charging through a USB Power Delivery (PD) 3.0 pass-through port. The Multiport Adapter connects to a laptop's USB-C or Thunderbolt 3/4™ port, using the integrated 10-inch (25cm) USB-C cable.Versatile, High-Performance Video via MSTThe compact USB Type-C Docking Station features three video output options to turn your laptop into a single or multi-monitor workstation.HDMI PortProvides HDR video with resolutions up to 4K 60Hz.VGA PortProvides analog video with resolutions up to 1080p 60Hz.USB-C PortProvides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter.The advanced video versatility of this Multiport Adapter, makes it suitable for a wide variety of applications:• Connect a portable USB-C monitor as an extended display, to obtain a high resolution external monitor during on-the-go travel between an office desk, home office, hot desk, or the boardroom.• Connect a USB-C peripheral to the downstream 10Gbps USB-C port, while using the HDMI and/or VGA ports to connect external monitor(s) as extended display(s).• Connect multiple external monitors as extended displays, using any combination of the two video ports, to create a high-productivity workstation. USB-C video adapters (sold separately) can be used to connect HDMI, DVI, VGA, or DisplayPort monitors to the USB-C video port.This Docking Station utilizes MST to obtain video versatility. Video performance is based upon the number of attached monitors and the host computer's video controller. Consult the manufacturer of the host computer to determine MST video performance. StarTech.com performs rigorous performance benchmarks with all major host computer video controllers. The video performance results of our testing are listed below:HDMI Port - Single MonitorUSB-C DP Alt Mode Port - Single MonitorVGA Port - Single MonitorMaximum Resolution Dual Display (MST)DisplayPort 1.2 Alt ModeIntel Ice Lake 11th Gen and Previous Generation Processors4K 30Hz4K 30Hz1080p1080p + 1080pDisplayPort 1.4 Alt ModeIntel Tiger Lake, Alder Lake, and Later Generation Processors4K 30Hz4K 30Hz1080p4K 30Hz + 1080pDisplayPort 1.4 Alt ModeDiscrete GPU4K 60Hz4K 60HZ1080p4K 30Hz + 4K30Hz (HDMI & USB-C)Notes:• This chart displays maximum performance capabilities. Performance varies depending on system configuration. Check with your host computer manufacturer to determine expected video performance.• A laptop with a discrete GPU is recommended for maximum performance.Connect Your DevicesThe USB 3.2 Gen 2 (10Gbps) hub features two USB-A ports and one USB-C port, for connecting your USB devices. The downstream USB-C port can be used to connect a monitor, or USB-C peripheral with up to 10W (5V/2A) of power, to power or charge your peripherals.Multiple Use CasesA versatile docking solution for use at an office desk, home office, hot desk, or in the boardroom. It's portable enough to be carried in a bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the USB Power Delivery pass-through port - for full laptop and USB-C peripheral charging. The lightweight docking station features a built-in 10 in (25 cm) USB-C host cable for added setup flexibility and to reduce port strain with laptop connection elevated off desktop surface.Charge Your Laptop and PeripheralsWith support for USB PD 3.0 (100W - 80W charging, 20W reserved for multiport adapter), the Multiport Adapter enables charging of the host computer and peripherals connected to the USB-C port. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. PD 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).Reliable Network ConnectivityThe Gigabit Ethernet port ensures reliable wired network access. Support for Wake-on-LAN (WoL) enables remote booting of the host computer.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : Setup and save custom windows layouts.•MAC Address Pass-Through Utility : Improve network security.•USB Event Monitoring Utility : Track and log connected USB devices.•Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThis product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
