Stock Status: 1x unit in stock

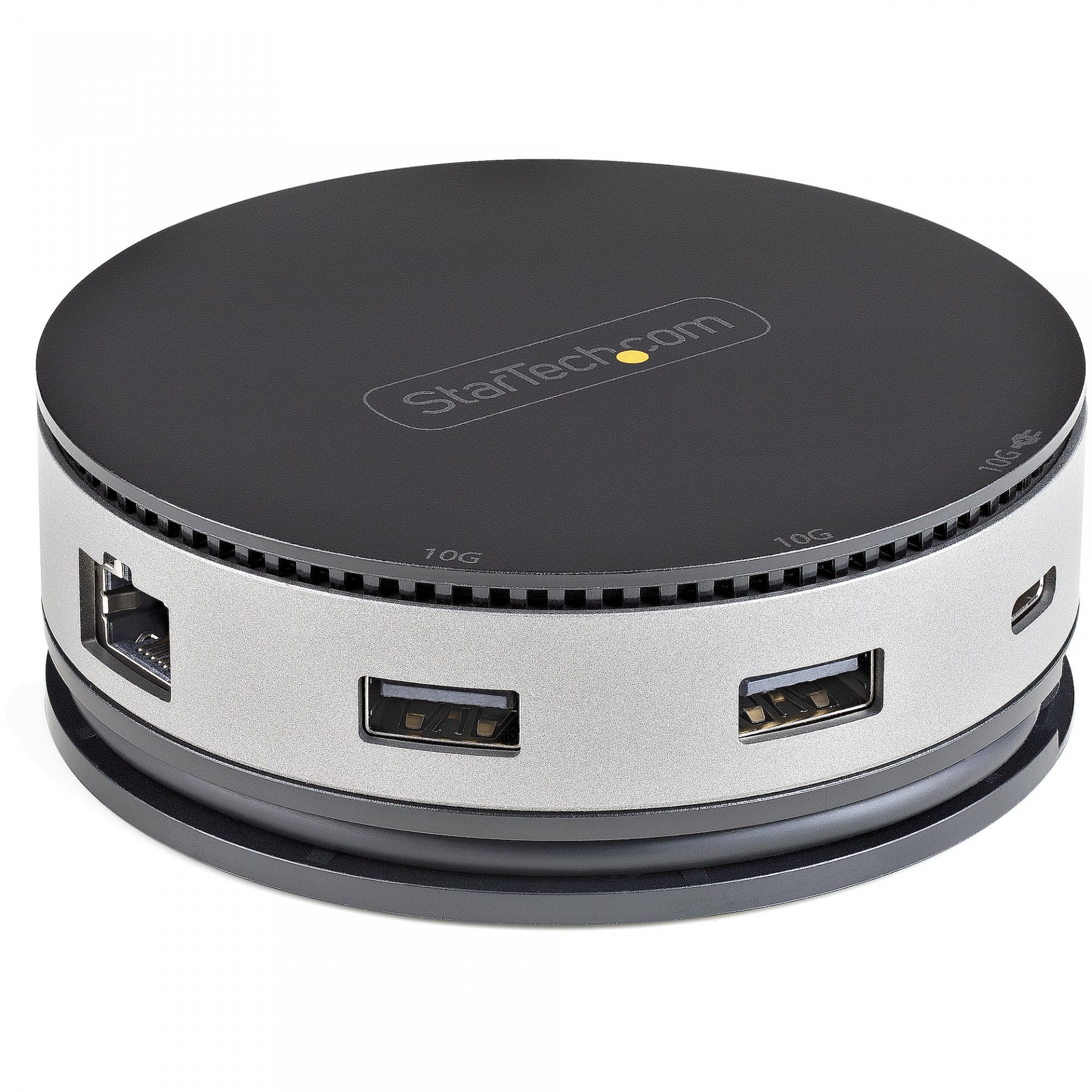

USB-C Docking Station | USB 3.1 Gen 2 | 4K 60Hz HDMI or DisplayPort | 1080p VGA | 75W PD Pass Through | 3 Port USB Hub
This?USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility,?turns your USB-C or Thunderbolt 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet?into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections
HDMI, DisplayPort, VGA video options
10Gbps USB-C & USB-A peripheral ports
Attached 24cm (10 in) USB-C host cable
Three Video Output Options
This?USB-C multiport adapter?features HDMI, DisplayPort, and VGA ports providing you with three ?single?video output options for your?workstation setup or boardroom presentations including support for an ultra-wide monitor.
HDMI (Up to 4K 60Hz with DP 1.4 and HDMI 2.0 HDR)
DisplayPort (Up to 4K 60Hz with DP 1.4)
VGA (Up to 1080p)
Designed for Portability & Ease of Use
The USB-C travel dock features a compact circular design and an attached extended length 24cm (10 in.) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15W for docking station & rest for charging).
Installation is fast and simple, with native support in most operating systems, and at only 7 ounces (198 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase with a convenient wraparound cable.
Essential Port Configuration
In addition to the video outputs, the portable USB-C dock gives you two 10Gbps USB-A ports and one 10Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.
The StarTech.com Advantage
- HIGH PERFORMANCE MINI DOCK: Compact USB-C mobile adapter (USB 3.1 Gen 2 10Gbps) supporting a single display with three video options; HDMI or DisplayPort (Up to 4K 60Hz with DP 1.4 or HDMI 2.0 HDR) or VGA (Up to 1080p)
- 4K 60HZ WITH DP 1.4 ALT-MODE: 4K 60Hz on hosts that support DP 1.4 Alt-Mode and HBR3 w/ DSC enabled laptops (min. Intel 11th Gen) or up to 4K 30Hz resolution on host devices that support DP 1.2 Alt-Mode
- BUILT-IN USB HUB: This USB C multiport adapter features an integrated USB 3.2/3.1 Gen 2 hub with 2x USB-A and 1x USB-C downstream ports supporting speeds up to 10 Gbps; includes a gigabit Ethernet port
Specs
| Weight & dimensions |
| Width |
90 mm |
| Depth |
90 mm |
| Height |
32.5 mm |
| Weight |
201 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity |
1 |
| Microphone in |
N |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB Power Delivery |
Y |
| USB Power Delivery up to |
75 W |
| VGA (D-Sub) ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Packaging content |
| Quick start guide |
Y |
| Other features |
| Cable length |
0.254 m |
| Chipset |
Genesys Logic GL9510, Genesys Logic GL3590, Realtek RTL8153, Realtek RTD2142S |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Performance |
| Product colour |
Black, Grey |
| Card reader integrated |
N |
| Data transfer rate |
10 Gbit/s |
| Maximum digital resolution |
3840 x 2160 pixels |
| Technical details |
| Harmonized System (HS) code |
84733020 |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Mobile operating systems supported |
Android, iOS |
| Other operating systems supported |
Chrome |
| Packaging data |
| Package width |
133 mm |
| Package depth |
145 mm |
| Package height |
37 mm |
| Package weight |
278 g |
| Logistics data |
| Products per master (outer) case |
48 pc(s) |
| Master (outer) case width |
300 mm |
| Master (outer) case length |
555 mm |
| Master (outer) case height |
255 mm |
| Sustainability |
| Sustainability certificates |
CE, RoHS |
Features
StarTech.com USB C Multiport Adapter - USB 3.1 Gen 2 10Gbps Type-C Mini Dock with 4K 60Hz HDMI/DisplayPort or 1080p VGA - 75W PD Passthrough, 3-Port USB Hub, GbE - Mobile Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 75 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u. Product colour: Black, Grey, Data transfer rate: 10 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Mobile operating systems supported: Android, iOS. Sustainability certificates: CE, RoHS
Product Description
USB-C Docking Station | USB 3.1 Gen 2 | 4K 60Hz HDMI or DisplayPort | 1080p VGA | 75W PD Pass Through | 3 Port USB Hub
This?USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility,?turns your USB-C or Thunderbolt 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet?into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections
HDMI, DisplayPort, VGA video options
10Gbps USB-C & USB-A peripheral ports
Attached 24cm (10 in) USB-C host cable
Three Video Output Options
This?USB-C multiport adapter?features HDMI, DisplayPort, and VGA ports providing you with three ?single?video output options for your?workstation setup or boardroom presentations including support for an ultra-wide monitor.
HDMI (Up to 4K 60Hz with DP 1.4 and HDMI 2.0 HDR)
DisplayPort (Up to 4K 60Hz with DP 1.4)
VGA (Up to 1080p)
Designed for Portability & Ease of Use
The USB-C travel dock features a compact circular design and an attached extended length 24cm (10 in.) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15W for docking station & rest for charging).
Installation is fast and simple, with native support in most operating systems, and at only 7 ounces (198 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase with a convenient wraparound cable.
Essential Port Configuration
In addition to the video outputs, the portable USB-C dock gives you two 10Gbps USB-A ports and one 10Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.
The StarTech.com Advantage
- HIGH PERFORMANCE MINI DOCK: Compact USB-C mobile adapter (USB 3.1 Gen 2 10Gbps) supporting a single display with three video options; HDMI or DisplayPort (Up to 4K 60Hz with DP 1.4 or HDMI 2.0 HDR) or VGA (Up to 1080p)
- 4K 60HZ WITH DP 1.4 ALT-MODE: 4K 60Hz on hosts that support DP 1.4 Alt-Mode and HBR3 w/ DSC enabled laptops (min. Intel 11th Gen) or up to 4K 30Hz resolution on host devices that support DP 1.2 Alt-Mode
- BUILT-IN USB HUB: This USB C multiport adapter features an integrated USB 3.2/3.1 Gen 2 hub with 2x USB-A and 1x USB-C downstream ports supporting speeds up to 10 Gbps; includes a gigabit Ethernet port
