Stock Status: 1x unit in stock

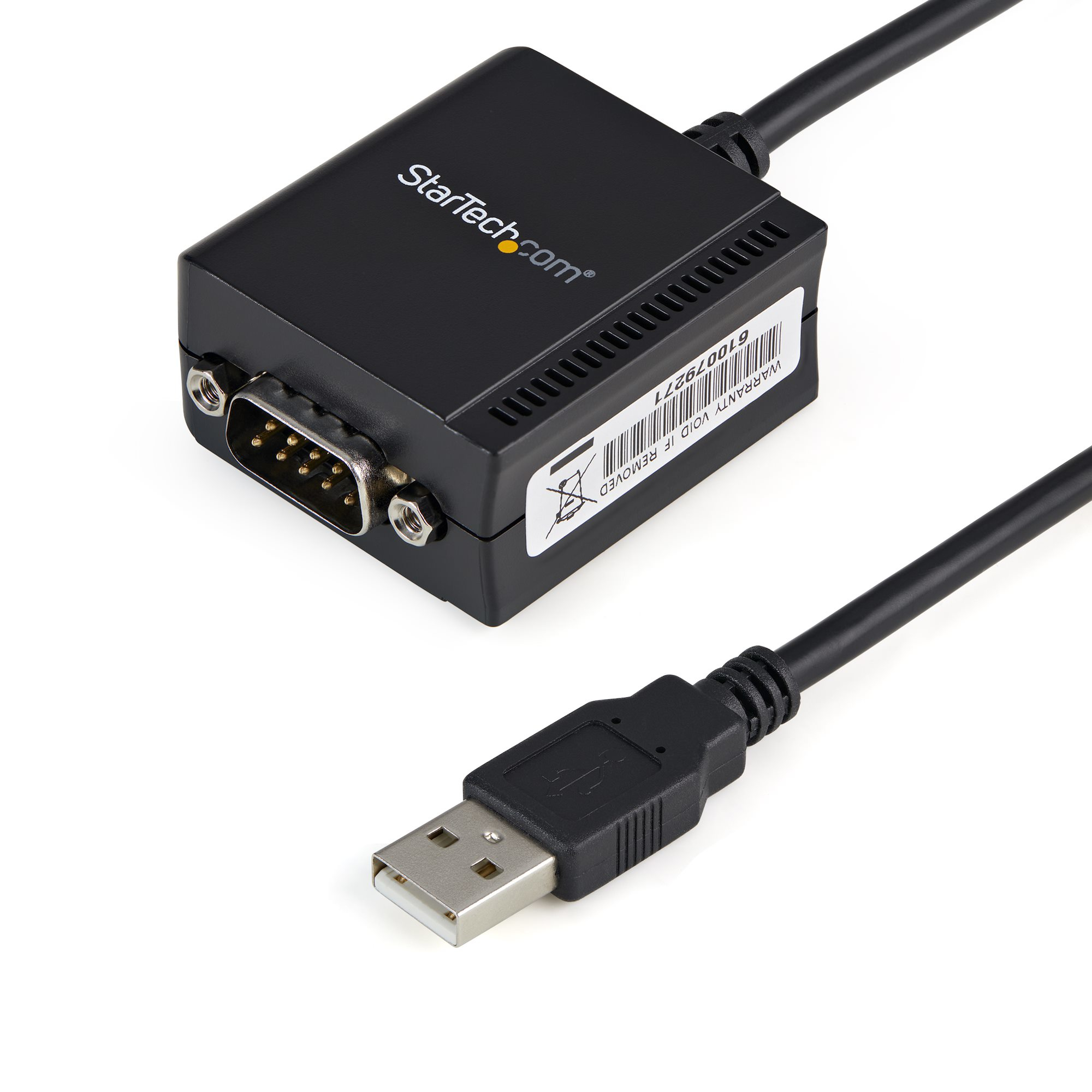

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
- Portable USB-Powered design requires no bulky power adapter or outlet
- Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices
Specs
| Ports & interfaces |
| Connector 1 |
DB-9 |
| Connector 2 |
USB 2.0 A |
| Gender |
Male/Male |
| Connector gender |
Male/Male |
| Cable length |
0.2 m |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Packaging data |
| Package width |
145 mm |
| Package depth |
175 mm |
| Package height |
32 mm |
| Package weight |
176 g |
| Weight & dimensions |
| Width |
41.5 mm |
| Height |
22 mm |
| Length |
4.5 cm |
| Weight |
90 g |
| Depth |
45 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Relative humidity |
5 - 95% |
| Packaging content |
| Manual |
Y |
| Drivers included |
Y |
| Performance |
| Chipset |
FTDI - FT232RL |
| Data bits |
7,8 |
| Stop bits |
1,2 |
| Baud rate |
115.2 Kbit/s |
| FIFO (First In, First Out) |
256 B |
| Compatible operating systems |
- Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
- Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
- Mac OS 10.6 to 10.14
- Linux 2.4.x to 4.11.x LTS |
| Parity bit |
Even, Mark, N, Odd, Space |
| Product colour |
Black |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
| Design |
| Colour of product |
Black |
| Cable length |
0.2 m |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
| Product colour |
Black |
| Technical details |
| Sustainability certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention. Connector 1: DB-9, Connector 2: USB 2.0 A, Cable length: 0.2 m. Product colour: Black
Product Description
The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
- Portable USB-Powered design requires no bulky power adapter or outlet
- Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices
