Stock Status: 1x unit in stock
Single monitor (HDMI or VGA) or dual-mirrored (HDMI/VGA) video adapter with audio and power delivery pass-through

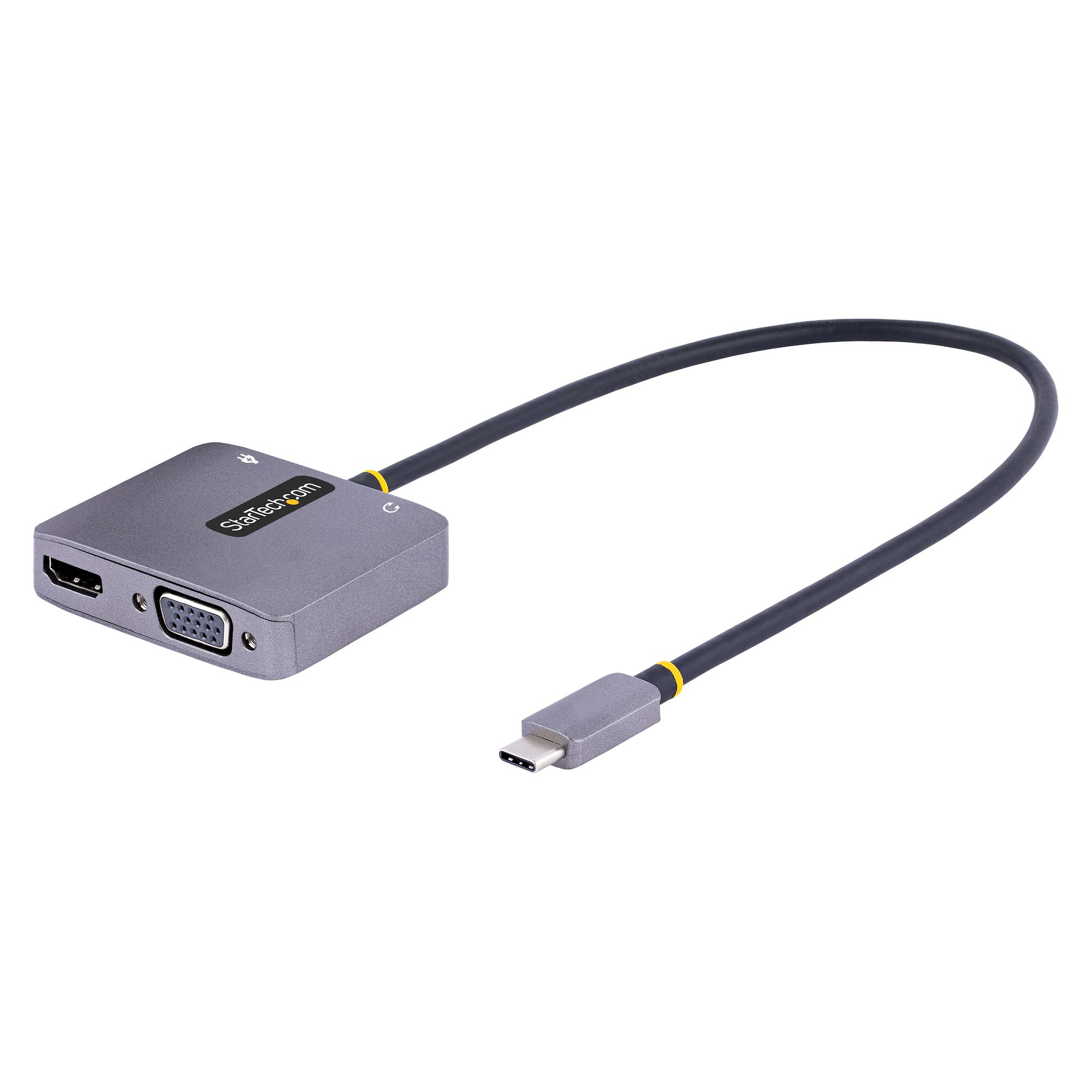

This USB-C™ Multiport Video Adapter offers a portable solution for connecting USB Type-C devices to HDMI and/or VGA displays, with up to 100W of Power Delivery.
Versatile Video Connectivity
This Multiport Adapter supports a single HDMI display at resolutions up to 4K 60Hz, a single VGA display at resolutions of up to 1920x1200 60Hz or dual-mirrored HDMI and VGA displays at resolutions of up to 1080p. The 3.5mm audio port can be used for connecting speakers while presenting with a VGA projector/display, or headphones.
Extended Cable Length
The adapter is equipped with an extra-long 12 inch (30cm) attached cable, providing an extended reach, to reduce port and connector strain on 2-in-1 devices, tablets, or laptops on risers/stands.
Power Delivery
The USB C to HDMI and VGA Adapter is bus powered for easy use while traveling. Optionally, connect a USB-C power adapter and charge your laptop using the Power Delivery 3.0 pass-through feature, supporting up to 100W charging.
Connectivity for Any Laptop
The USB Type-C Display Adapter is compatible with USB-C DisplayPort Alt-mode, Thunderbolt 3, and Thunderbolt 4 enabled laptops, Ultrabooks, Chromebooks, and MacBooks. Plug and play (driver/software free) compatibility with any operating system such as Windows, macOS, iPadOS, Chrome OS, and Linux.
Note:
The 3.5mm audio output will not be active unless a display is connected to the product. This adapter does not support MST or dual extended displays.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
60 mm |
| Depth |
45 mm |
| Height |
14 mm |
| Weight |
41 g |
| Performance |
| DVI output |
No |
| HDMI output |
Yes |
| DisplayPort output |
No |
| Number of displays supported |
2 |
| USB connector type |
USB Type-C |
| USB connector gender |
Male |
| USB connector form factor |
Straight |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Maximum transfer distance |
30 m |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| VGA (D-Sub) output |
Yes |
| HDMI version |
2.0b |
| Maximum resolution |
3840 x 2160 pixels |
| Refresh rate at maximum resolution |
60 Hz |
| Maximum resolution (HDMI) |
3840 x 2160 pixels |
| Maximum analog resolution |
1920 x 1200 pixels |
| Audio output channels |
7.1 channels |
| Design |
| Product colour |
Grey |
| Integrated USB cable |
Yes |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Logistics data |
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case width |
530 mm |
| Master (outer) case length |
330 mm |
| Master (outer) case height |
310 mm |
| Harmonized System (HS) code |
84733020 |
| Packaging data |
| Package width |
175 mm |
| Package depth |
145 mm |
| Package height |
30 mm |
| Package weight |
245 g |
Features
StarTech.com USB C Video Adapter, USB C to HDMI VGA Multiport Adapter, 3.5mm Audio, 4K 60Hz HDR, 100W PD Pass-Through, Thunderbolt 3/4 Compatible - USB C Display Travel Adapter. USB connector type: USB Type-C, USB connector gender: Male, USB connector form factor: Straight. Product colour: Grey. Width: 60 mm, Depth: 45 mm, Height: 14 mm. Package width: 175 mm, Package depth: 145 mm, Package height: 30 mm. Products per master (outer) case: 60 pc(s), Master (outer) case width: 530 mm, Master (outer) case length: 330 mm
Product Description
Single monitor (HDMI or VGA) or dual-mirrored (HDMI/VGA) video adapter with audio and power delivery pass-through
This USB-C™ Multiport Video Adapter offers a portable solution for connecting USB Type-C devices to HDMI and/or VGA displays, with up to 100W of Power Delivery.
Versatile Video Connectivity
This Multiport Adapter supports a single HDMI display at resolutions up to 4K 60Hz, a single VGA display at resolutions of up to 1920x1200 60Hz or dual-mirrored HDMI and VGA displays at resolutions of up to 1080p. The 3.5mm audio port can be used for connecting speakers while presenting with a VGA projector/display, or headphones.
Extended Cable Length
The adapter is equipped with an extra-long 12 inch (30cm) attached cable, providing an extended reach, to reduce port and connector strain on 2-in-1 devices, tablets, or laptops on risers/stands.
Power Delivery
The USB C to HDMI and VGA Adapter is bus powered for easy use while traveling. Optionally, connect a USB-C power adapter and charge your laptop using the Power Delivery 3.0 pass-through feature, supporting up to 100W charging.
Connectivity for Any Laptop
The USB Type-C Display Adapter is compatible with USB-C DisplayPort Alt-mode, Thunderbolt 3, and Thunderbolt 4 enabled laptops, Ultrabooks, Chromebooks, and MacBooks. Plug and play (driver/software free) compatibility with any operating system such as Windows, macOS, iPadOS, Chrome OS, and Linux.
Note:
The 3.5mm audio output will not be active unless a display is connected to the product. This adapter does not support MST or dual extended displays.
