Stock Status: 1x unit in stock
USB Type-C Adapter Cable | 8K 30Hz | Thunderbolt 3 | HBR3

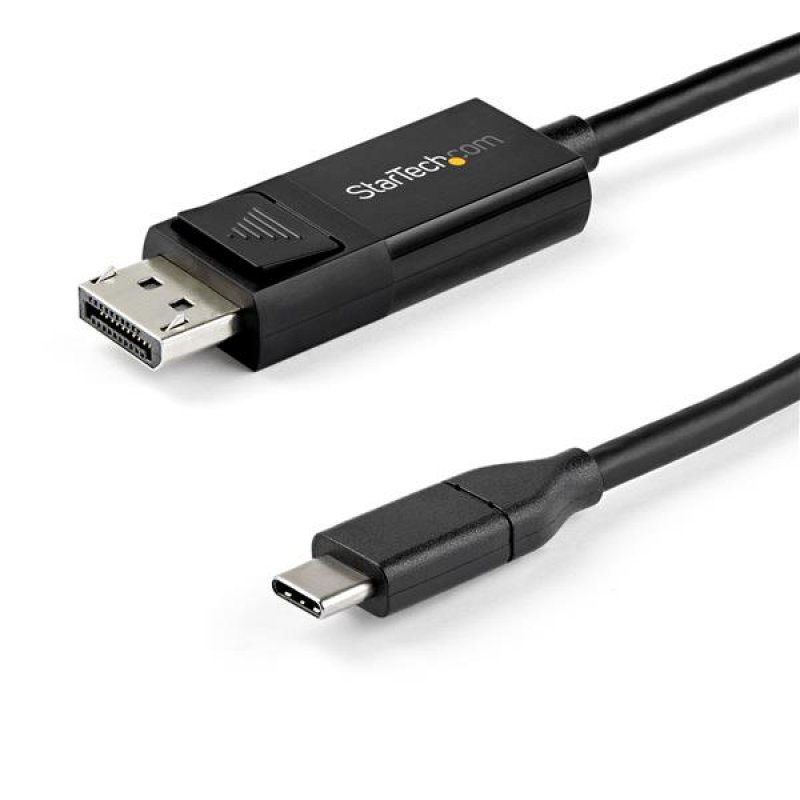

This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C (or Thunderbolt 3) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Unparalleled Performance with Support for 8K 30Hz
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.
CDP2DP142MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:
Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
The StarTech.com Advantage
- HIGH PERFORMANCE: Reversible USB-C to DisplayPort 1.4 cable or DP to USB-C cable supports 8K 60Hz/4K 120Hz/HDR/DisplayHDR/ HBR3/Display Stream Compression (DSC)/HDCP 2.2/1.4
- Thunderbolt 3 compatible
- REVERSIBLE CABLE: This 6.6ft/2m DisplayPort to USB-C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display
Specs
| Features |
| Cable length |
2 m |
| Connector 1 |
USB Type-C |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| DisplayPort version |
1.4 |
| Maximum resolution |
7680 x 4320 pixels |
| Maximum refresh rate |
30 Hz |
| Product colour |
Black |
| Chipset |
Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170 |
| Supported audio channels |
7.1 |
| Certification |
CE, FCC, REACH |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Weight & dimensions |
| Weight |
79 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Logistics data |
| Master (outer) case width |
23 cm |
| Master (outer) case length |
50 cm |
| Master (outer) case height |
21 cm |
| Quantity per master (outer) case |
80 pc(s) |
| Products per master (outer) case |
80 pc(s) |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
125 mm |
| Package depth |
225 mm |
| Package height |
25 mm |
| Package weight |
85 g |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 6ft (2m) USB C to DisplayPort 1.4 Cable 8K 60Hz/4K - Bidirectional DP to USB-C or USB-C to DP Reversible Video Adapter Cable -HBR3/HDR/DSC - USB Type C/TB3 Monitor Cable. Cable length: 2 m, Connector 1: USB Type-C, Connector 2: DisplayPort. Sustainability certificates: RoHS. Weight: 79 g. Quantity per pack: 1 pc(s), Package width: 125 mm, Package depth: 225 mm. Master (outer) case width: 23 cm, Master (outer) case length: 50 cm, Master (outer) case height: 21 cm
Product Description
USB Type-C Adapter Cable | 8K 30Hz | Thunderbolt 3 | HBR3
This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C (or Thunderbolt 3) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Unparalleled Performance with Support for 8K 30Hz
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.
CDP2DP142MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:
Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
The StarTech.com Advantage
- HIGH PERFORMANCE: Reversible USB-C to DisplayPort 1.4 cable or DP to USB-C cable supports 8K 60Hz/4K 120Hz/HDR/DisplayHDR/ HBR3/Display Stream Compression (DSC)/HDCP 2.2/1.4
- Thunderbolt 3 compatible
- REVERSIBLE CABLE: This 6.6ft/2m DisplayPort to USB-C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display
