Stock Status: 1x unit in stock
Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz

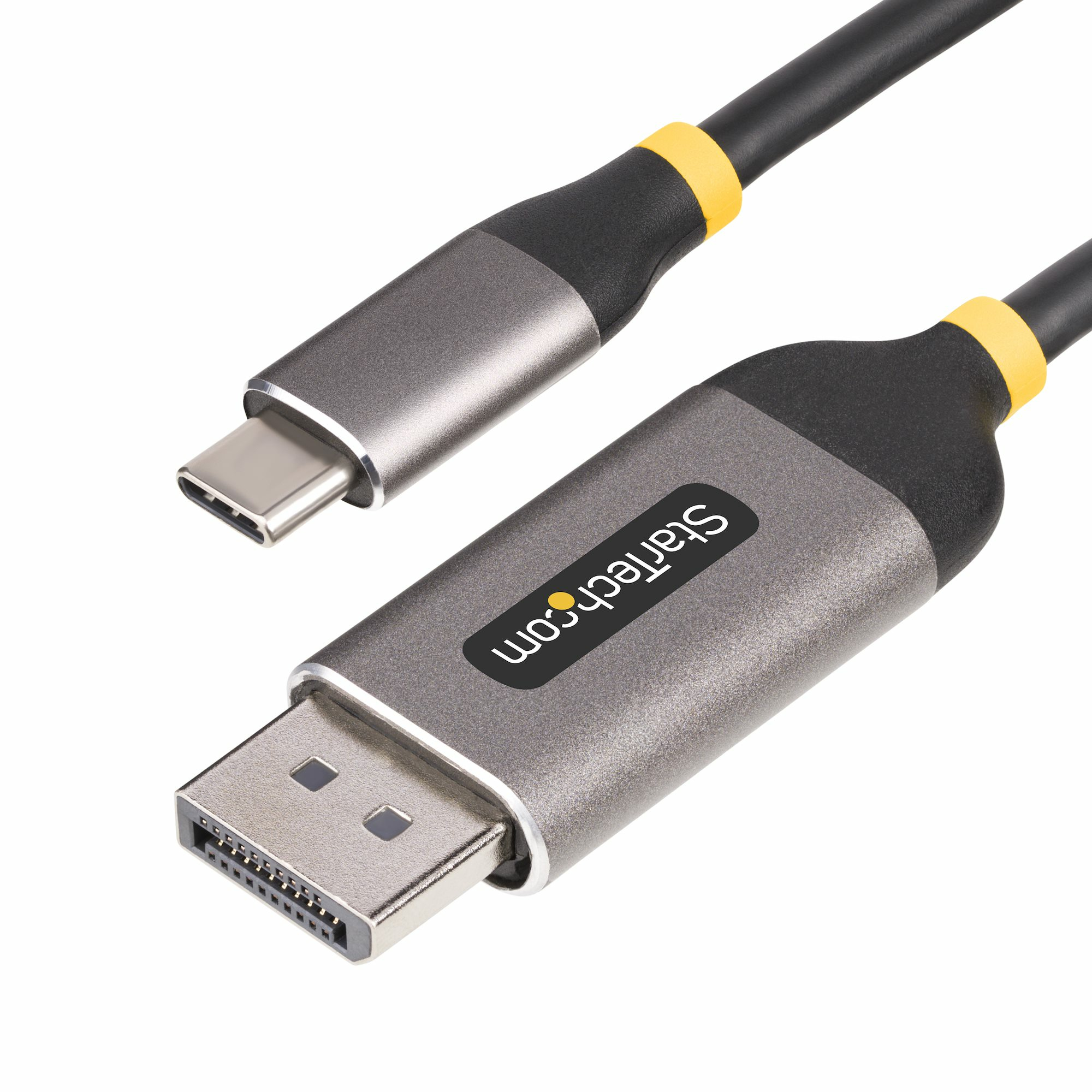

Connect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.
High-Resolution HDR Video
This USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.
Hardware Platform
Single Monitor
DisplayPort Alt Mode
Intel 11th Gen & Later Processors
8K 60Hz or 4K 144Hz*
DisplayPort 1.4
Nvidia RTX3000 and AMD RX6000 or later
8K 60Hz or 4K 144Hz
DisplayPort 1.4
Intel 10th Gen & Earlier
4K 60Hz
DisplayPort 1.4
Apple M1/M2/M3 + Pro & Max
4K 60Hz**
DisplayPort 1.4
*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later
**Apple MacBook's with M1/M2/M3 Pro/Max silicon do not support 8K 60Hz over USB-C DP Alt Mode
Universal Compatibility
The USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Thoughtfully Designed
Combining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).
The StarTech.com Advantage
Specs
| Features |
| Cable length |
3 m |
| Connector 1 |
USB Type-C |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDCP |
Yes |
| HDCP version |
1.4/2.2/2.3 |
| DisplayPort version |
1.4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 ( |
| Bandwidth |
32400 MB/s |
| Maximum refresh rate |
144 Hz |
| Refresh rate at maximum resolution |
60 Hz |
| Product colour |
Black, Grey |
| Chipset |
VL103 |
| Jacket material |
Thermoplastic elastomer (TPE) |
| Cable type |
Round cable |
| Plug and Play |
Yes |
| Latching connectors |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Cable diameter |
4.3 mm |
| Weight |
111 g |
| Logistics data |
| Master (outer) case width |
300 mm |
| Master (outer) case length |
300 mm |
| Master (outer) case height |
350 mm |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Package width |
150 mm |
| Package depth |
100 mm |
| Package height |
100 mm |
| Package weight |
80 g |
| Certification |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com 10ft (3m) USB-C to DisplayPort Adapter Cable, 8K 60Hz, 4K 144Hz, HDR, USB Type-C to DP 1.4 Video Converter Cable, USB4/Thunderbolt 3/4 Compatible. Cable length: 3 m, Connector 1: USB Type-C, Connector 2: DisplayPort. Compliance certificates: RoHS. Cable diameter: 4.3 mm, Weight: 111 g. Package width: 150 mm, Package depth: 100 mm, Package height: 100 mm. Master (outer) case width: 300 mm, Master (outer) case length: 300 mm, Master (outer) case height: 350 mm
Product Description
Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz
Connect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.
High-Resolution HDR Video
This USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.
Hardware Platform
Single Monitor
DisplayPort Alt Mode
Intel 11th Gen & Later Processors
8K 60Hz or 4K 144Hz*
DisplayPort 1.4
Nvidia RTX3000 and AMD RX6000 or later
8K 60Hz or 4K 144Hz
DisplayPort 1.4
Intel 10th Gen & Earlier
4K 60Hz
DisplayPort 1.4
Apple M1/M2/M3 + Pro & Max
4K 60Hz**
DisplayPort 1.4
*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later
**Apple MacBook's with M1/M2/M3 Pro/Max silicon do not support 8K 60Hz over USB-C DP Alt Mode
Universal Compatibility
The USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Thoughtfully Designed
Combining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).
