Stock Status: 1x unit in stock

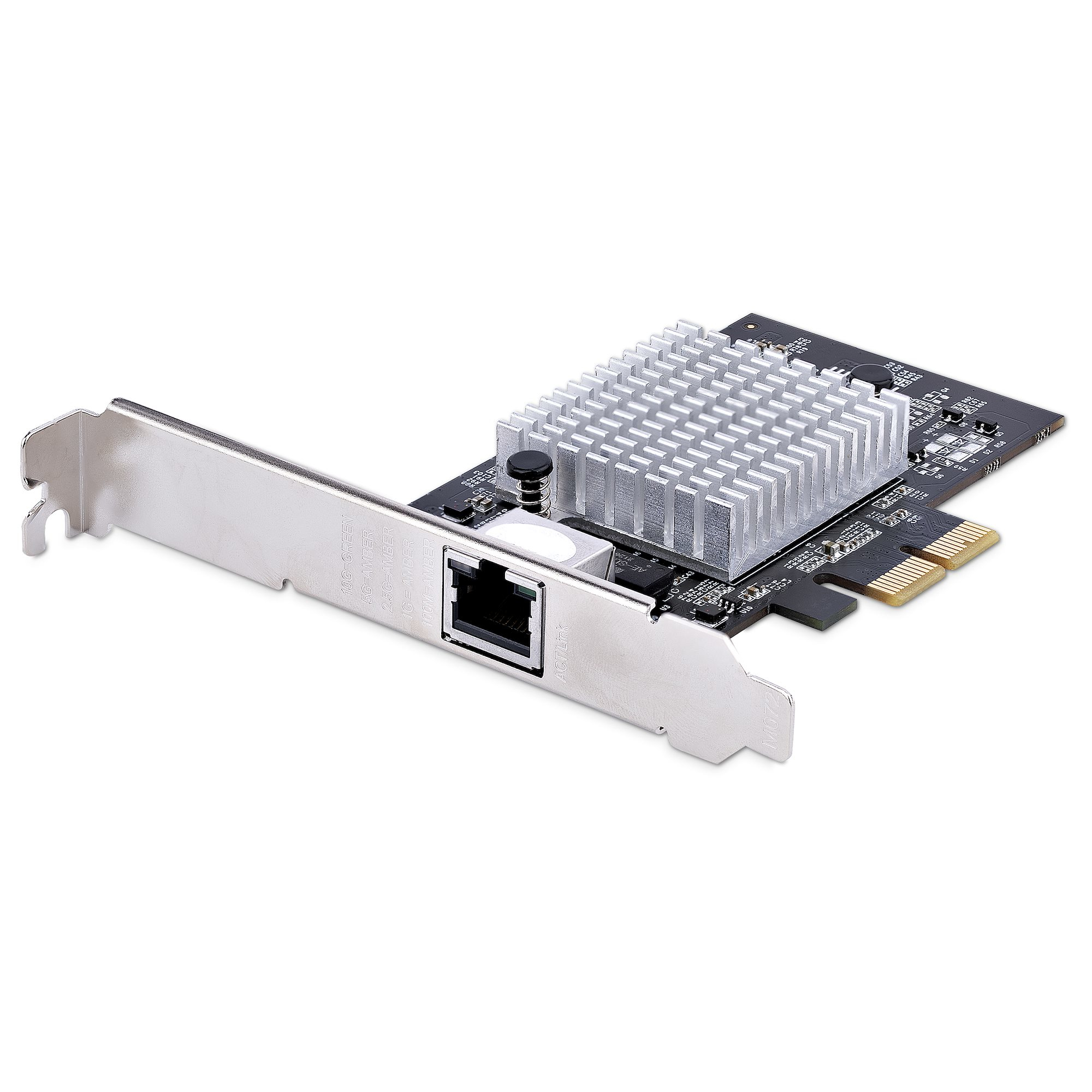

Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CSInstall this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Juniper®.Increased Network SpeedsThis PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.Enhance Existing HardwareThe Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Specs
| Networking |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN |
Y |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000,2500,5000,10000 Mbit/s |
| Cabling technology |
10GBase-T |
| Auto MDIX IEEE |
Y |
| Full duplex |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
16000 |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Y |
| Weight & dimensions |
| Width |
107 mm |
| Depth |
121 mm |
| Height |
22 mm |
| Weight |
70 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCIe |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| PCI version |
3.0 |
| PCI Card form factor |
Full-height (low-profile) |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Design |
| Internal |
Y |
| Component for |
PC |
| Product colour |
Black |
| LED indicators |
Y |
| Logistics data |
| Master (outer) case width |
445 mm |
| Master (outer) case length |
375 mm |
| Master (outer) case height |
320 mm |
| Products per master (outer) case |
40 pc(s) |
| Packaging data |
| Package width |
210 mm |
| Package depth |
145 mm |
| Package height |
35 mm |
| Package weight |
120 g |
| Packaging content |
| Mounting brackets included |
Y |
| Quick installation guide |
Y |
Features
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T. Internal. Connectivity technology: Wired, Host interface: PCIe, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black
Product Description
Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CSInstall this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Juniper®.Increased Network SpeedsThis PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.Enhance Existing HardwareThe Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
