Stock Status: 1x unit in stock

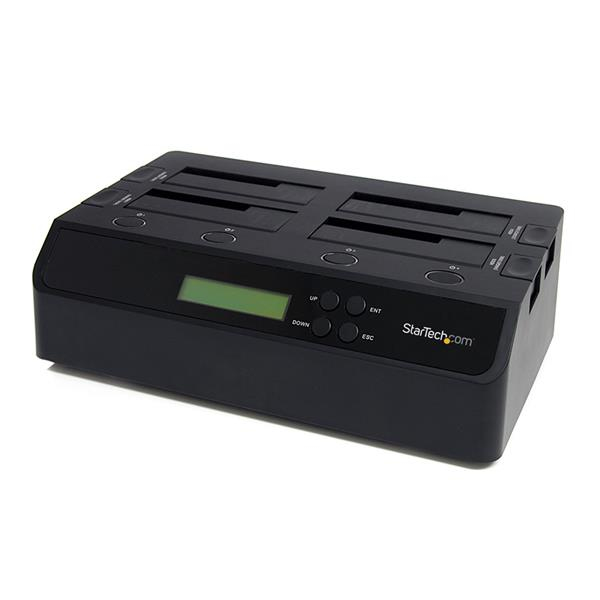

Duplicate one SATA Hard Drive onto three Hard Drives simultaneously
The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.
Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.
Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP).
The StarTech.com Advantage
- Create 3 exact copies of a source SATA drive simultaneously, without having to connect to a computer
- Access up to 4 SATA hard drives simultaneously over a single USB 3.0 or eSATA connection
- Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drive type
Specs
| Technical details |
| Product type |
HDD duplicator |
| Number of simultaneous copies |
3 copies |
| Interface |
USB/eSATA |
| Duplicator operating modes |
Copy |
| USB connector type |
USB Type-B |
| Product colour |
Black |
| Housing material |
Plastic |
| Maximum supported storage capacity |
16 TB |
| Plug and Play |
Y |
| Chipset |
JMicron - JMB394 + JMS539 |
| Number of fans |
2 fan(s) |
| Fan diameter |
6 cm |
| Port multiplier |
Y |
| LED indicators |
Activity, Power |
| Sustainability certificates |
RoHS |
| Weight & dimensions |
| Dimensions (WxDxH) |
285 x 170 x 94 mm |
| Weight |
1.1 kg |
| Operating system/software |
| Compatible operating systems |
Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, Linux |
| Software |
| Compatible operating systems |
Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, Linux |
| Power |
| Power consumption (typical) |
78 W |
| AC input voltage |
110-240 V |
| Output voltage |
12 V |
| Output current |
6.5 A |
| Included power plug types |
EU,NA,UK |
| Hard drive |
| Supported HDD sizes |
2.5,3.5" |
| Supported HDD interfaces |
Serial ATA, Serial ATA II |
| Operational conditions |
| Operating relative humidity (H-H) |
8 - 90% |
| Operating temperature (T-T) |
5 - 80 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Display |
| Display |
LCD |
| Packaging data |
| Package weight |
2.73 kg |
| Package height |
215 mm |
| Package length |
34 cm |
| Package width |
170 mm |
| Cables included |
SATA,USB,eSATA |
| AC adapter included |
Y |
| Manual |
Y |
| Certificates |
| RoHS compliance |
Y |
| Certification |
CE |
Features
StarTech.com 4 Bay USB 3.0 eSATA to SATA Standalone 1:3 HDD Hard Drive Duplicator Dock. Supported HDD sizes: 2.5,3.5", Supported HDD interfaces: Serial ATA, Serial ATA II. Compatible operating systems: Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008.... Power consumption (typical): 78 W, AC input voltage: 110-240 V, Output voltage: 12 V. Dimensions (WxDxH): 285 x 170 x 94 mm, Weight: 1.1 kg. Display: LCD
Product Description
Duplicate one SATA Hard Drive onto three Hard Drives simultaneously
The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.
Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.
Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP).
The StarTech.com Advantage
- Create 3 exact copies of a source SATA drive simultaneously, without having to connect to a computer
- Access up to 4 SATA hard drives simultaneously over a single USB 3.0 or eSATA connection
- Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drive type
