Stock Status: 1x unit in stock

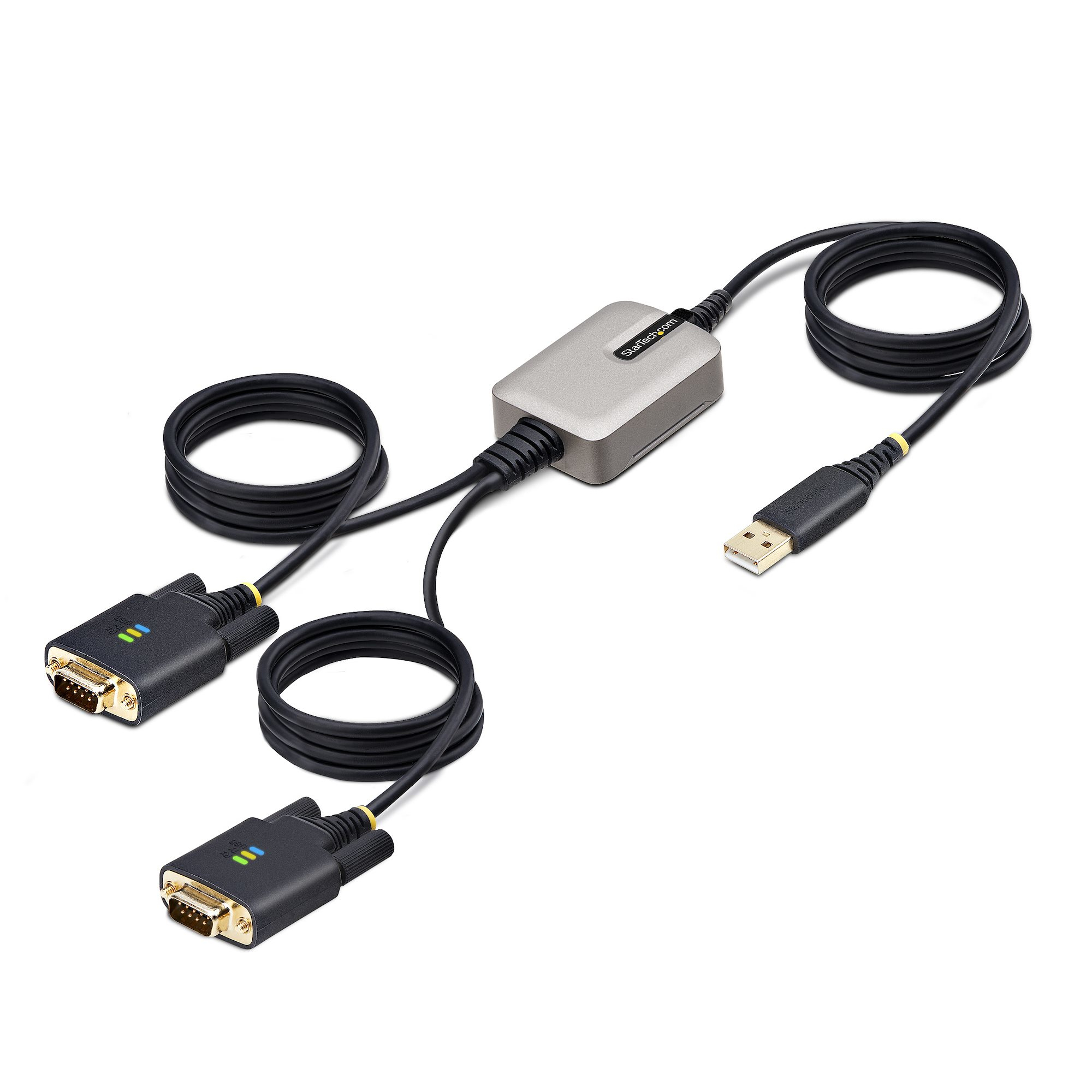

Add two RS232 serial ports to a laptop or desktop, using an available USB-A portAdd RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 13ft (4m) straight through 2-Port USB to Serial Adapter Cable.Serial Port ExpansionThe Dual-Port USB Serial Adapter adds two RS-232 serial DB/DE-9 (male) connectors to a desktop or laptop via a single USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.LED IndicatorsData transmission and reception LED indicators for each port on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.Seamless ConnectivityThe adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.Built To LastThe rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity. The included mounting bracket allows the hub of the serial adapter to be mounted to a desired surface.The StarTech.com Advantage
Specs
| Ports & interfaces |
| Connector 1 |
USB-A |
| Connector 2 |
2 x DB-9 RS-232 |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Cable length |
4 m |
| USB version |
2.0 |
| Packaging data |
| Package width |
225 mm |
| Package depth |
155 mm |
| Package height |
55 mm |
| Package weight |
290 g |
| Weight & dimensions |
| Width |
45 mm |
| Depth |
4000 mm |
| Height |
20 mm |
| Weight |
280 g |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 80 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Relative humidity |
0 - 95% |
| Packaging content |
| Manual |
Yes |
| Performance |
| Product colour |
Black, Grey |
| Cable jacket material |
Thermoplastic elastomer (TPE) |
| Data transfer rate |
0.48 Gbit/s |
| Chipset |
FTDI - FT2232H |
| Data bits |
7, 8 |
| Stop bits |
1, 2 |
| Baud rate |
921.6 Kbit/s |
| Parity bit |
Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) |
4048 B |
| LED indicators |
Yes |
| Compatible operating systems |
Windows 7, 8/8.1, 10, 11
Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.9 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 4.15.x+- LTS Versions
Chrome OS |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case width |
585 mm |
| Master (outer) case length |
330 mm |
| Master (outer) case height |
250 mm |
| Sustainability |
| Sustainability certificates |
RoHS |
| Sustainability compliance |
Yes |
Features
StarTech.com 13ft (4m) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction. Connector 1: USB-A, Connector 2: 2 x DB-9 RS-232, Cable length: 4 m. Product colour: Black, Grey
Product Description
Add two RS232 serial ports to a laptop or desktop, using an available USB-A portAdd RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 13ft (4m) straight through 2-Port USB to Serial Adapter Cable.Serial Port ExpansionThe Dual-Port USB Serial Adapter adds two RS-232 serial DB/DE-9 (male) connectors to a desktop or laptop via a single USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.LED IndicatorsData transmission and reception LED indicators for each port on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.Seamless ConnectivityThe adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.Built To LastThe rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity. The included mounting bracket allows the hub of the serial adapter to be mounted to a desired surface.The StarTech.com Advantage
