Stock Status: 1x unit in stock

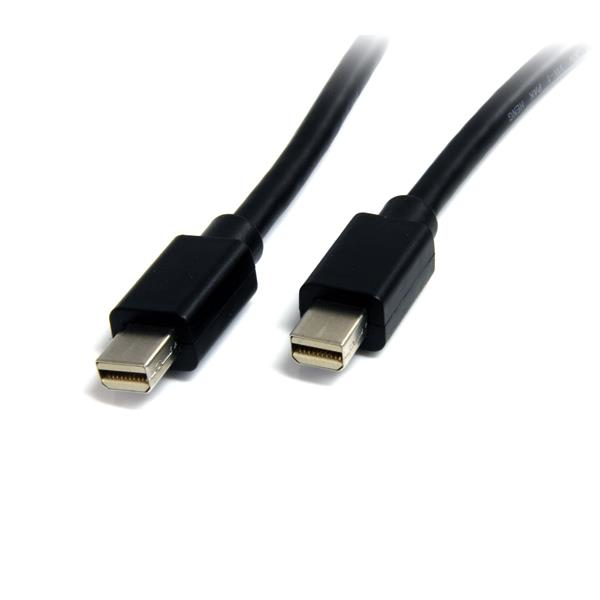

The MDISP1M 1m Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDISP1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
The StarTech.com Advantage
- Guaranteed reliability
Specs
| Features |
| Cable length |
1 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
Mini DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Nickel |
| Product colour |
Black |
| Cable rating |
CMG (CM) |
| Cable shielding |
Aluminum mylar foil |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
32 |
| DisplayPort version |
1.2 |
| DisplayPort Content Protection (DPCP) |
Y |
| Bandwidth |
21600 MB/s |
| Maximum resolution |
4096 x 2160 pixels |
| Supported video modes |
720p,1080p,2160p |
| HDCP |
Y |
| Plug and Play |
Y |
| RoHS compliance |
Y |
| Number of conductors |
19 |
| Connector gender |
Male/Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| Multi-Stream Transport (MST) |
Y |
| Weight & dimensions |
| Weight |
39.9 g |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
10 mm |
| Package weight |
40.3 g |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Technical details |
| Sustainability certificates |
RoHS |
| Other features |
| Package length |
22 cm |
| Logistics data |
| Master (outer) case width |
32 cm |
| Master (outer) case length |
50 cm |
| Master (outer) case height |
21 cm |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Weight |
39.9 g |
| Quantity per pack |
1 pc(s) |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
12 mm |
| Package weight |
40.3 g |
| Package length |
22 cm |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 1m (3ft) Mini DisplayPort Cable - 4K x 2K Ultra HD Video - Mini DisplayPort 1.2 Cable - Mini DP to Mini DP Cable for Monitor - mDP Cord works with Thunderbolt 2 Ports - M/M. Cable length: 1 m, Connector 1: Mini DisplayPort, Connector 2: Mini DisplayPort. Sustainability certificates: RoHS. Weight: 39.9 g, Quantity per pack: 1 pc(s), Package width: 200 mm. Master (outer) case width: 32 cm, Master (outer) case length: 50 cm, Master (outer) case height: 21 cm
Product Description
The MDISP1M 1m Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDISP1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
The StarTech.com Advantage
- Guaranteed reliability
