Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPortâ„¢-equipped laptop and a standard DP monitor

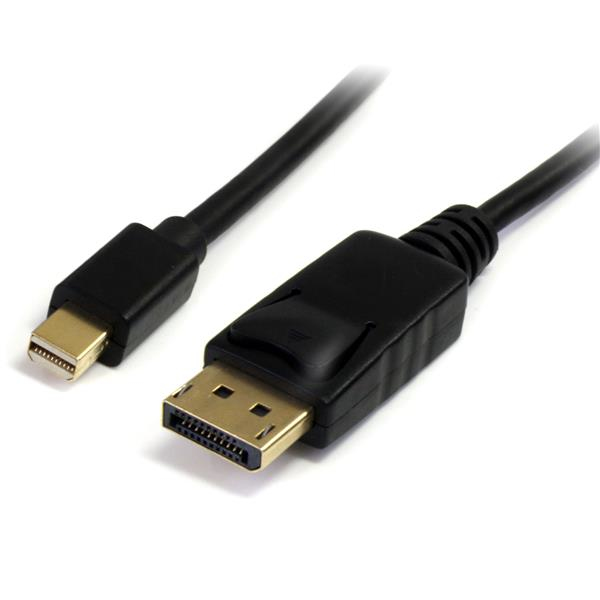

The MDP2DPMM1M 1m Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
- Latching DisplayPort connector prevents accidental disconnection
- Cost-effective solution for adding a standard DisplayPort connection to your Mini Displayport-equipped PC or Mac®
- Guaranteed reliability
Specs
| Features |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Colour of product |
Black |
| Product colour |
Black |
| Cable length |
1 m |
| Maximum resolution |
3840 x 2160 pixels |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Nickel |
| DisplayPort version |
1.2 |
| Maximum refresh rate |
60 Hz |
| Cable rating |
CMG (CM) |
| Cable shielding |
Aluminum mylar foil |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
32 |
| Bandwidth |
21600 MB/s |
| Multi-Stream Transport (MST) |
Y |
| Number of conductors |
19 |
| Weight & dimensions |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
10 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
5 - 80% |
| Other features |
| Package length |
8.66 mm |
| Logistics data |
| Master (outer) case width |
32 cm |
| Master (outer) case length |
50 cm |
| Master (outer) case height |
21 cm |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
10 mm |
| Package length |
8.66 mm |
| Package weight |
52 g |
| Weight |
44 g |
| Quantity per pack |
1 pc(s) |
Features
StarTech.com 1m (3ft) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord. Cable length: 1 m, Connector 1: Mini DisplayPort, Connector 2: DisplayPort. Weight: 44 g, Quantity per pack: 1 pc(s), Package width: 200 mm. Master (outer) case width: 32 cm, Master (outer) case length: 50 cm, Master (outer) case height: 21 cm
Product Description
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPortâ„¢-equipped laptop and a standard DP monitor
The MDP2DPMM1M 1m Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
- Latching DisplayPort connector prevents accidental disconnection
- Cost-effective solution for adding a standard DisplayPort connection to your Mini Displayport-equipped PC or Mac®
- Guaranteed reliability
