Stock Status: 1x unit in stock
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included
Providing centralized control of up to eight servers, this 8-port rackmount KVM console?gives you?easy access?to your?systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution?

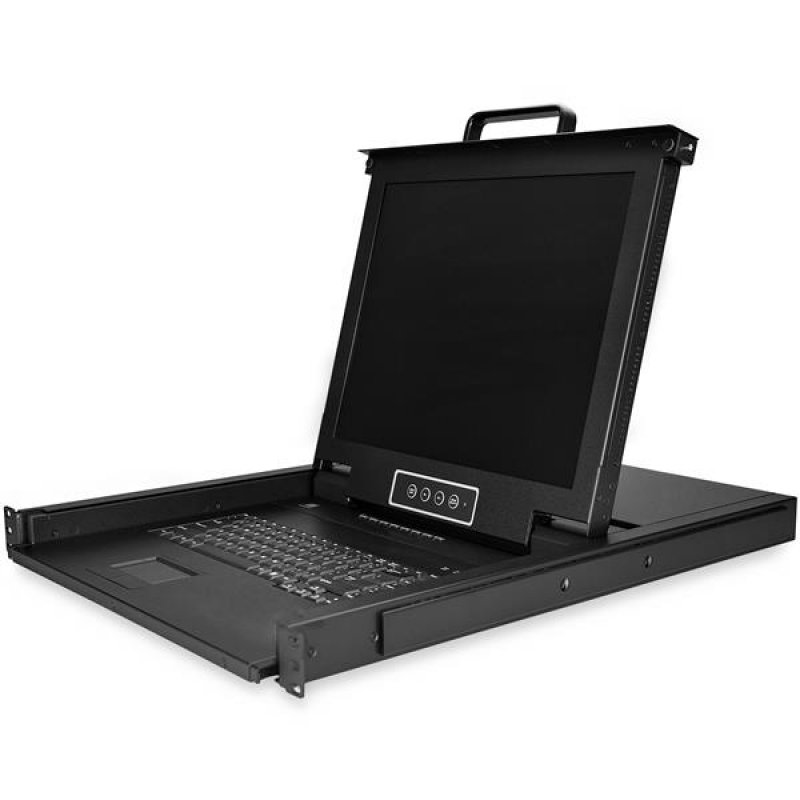

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This?8-port?KVM console?comes with everything?you need to set up right out of the box:?
8 VGA KVM Cables
Mounting Rails
M5 Cage Nuts and Screws
Simple System Integration
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support
The StarTech.com Advantage
- Maximize your server rack space with a 1U rackmount design
- Intuitive system integration with direct support for up to 8 servers
- Ready to use with built-in touchpad and keyboard
Specs
| Certificates |
| Certification |
CE, FCC, UL, REACH |
| Weight & dimensions |
| Width |
448 mm |
| Height |
619 mm |
| Depth |
43 mm |
| Weight |
13.3 kg |
| Mounting depth (min) |
56 cm |
| Mounting depth (max) |
90 cm |
| Technical details |
| Material |
Steel |
| Mean time between failures (MTBF) |
50000 h |
| Product colour |
Black |
| Operating relative humidity (H-H) |
10 - 80% |
| Rack mounting |
Y |
| Daisy chain |
N |
| Key lock |
N |
| LED indicators |
Y |
| Sustainability certificates |
CE, RoHS, UL ECOLOGO |
| Rack capacity |
1U |
| IP control |
N |
| Display |
| Display diagonal |
43.2 cm (17") |
| Display resolution |
1280 x 1024 pixels |
| Display |
TFT LCD |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
170° |
| Viewing angle, vertical |
160° |
| On Screen Display (OSD) |
Y |
| Pixel pitch |
0.264 x 0.264 mm |
| Aspect ratio |
5:4 |
| Display type |
LCD |
| Response time |
5 ms |
| Display number of colours |
16.78 million colours |
| Power |
| Power consumption (typical) |
13 W |
| AC adapter input voltage |
100 - 240 V |
| Input current |
1.5 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Keyboard |
| Hot keys |
Y |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
8 |
| Keyboard port type |
PS/2 |
| Mouse port type |
PS/2 |
| Video port type |
VGA |
| USB 2.0 Type-A ports quantity |
2 |
| Packaging data |
| Package weight |
19 kg |
| Package width |
615 mm |
| Package depth |
765 mm |
| Package height |
185 mm |
| Packaging content |
| Cables included |
KVM |
| Screws included |
Y |
| Number of screws |
8 |
| Cage nuts included |
Y |
| Number of cage nuts |
8 |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Manual |
Y |
| Logistics data |
| Master (outer) case width |
76.7 cm |
| Master (outer) case length |
61.7 cm |
| Master (outer) case height |
18.2 cm |
| Products per master (outer) case |
1 pc(s) |
Features
StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display: TFT LCD. Keyboard port type: PS/2, Mouse port type: PS/2, Video port type: VGA. Power consumption (typical): 13 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Width: 448 mm, Height: 619 mm, Depth: 43 mm. Package weight: 19 kg, Package width: 615 mm, Package depth: 765 mm
Product Description
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included
Providing centralized control of up to eight servers, this 8-port rackmount KVM console?gives you?easy access?to your?systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution?
The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This?8-port?KVM console?comes with everything?you need to set up right out of the box:?
8 VGA KVM Cables
Mounting Rails
M5 Cage Nuts and Screws
Simple System Integration
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support
The StarTech.com Advantage
- Maximize your server rack space with a 1U rackmount design
- Intuitive system integration with direct support for up to 8 servers
- Ready to use with built-in touchpad and keyboard
