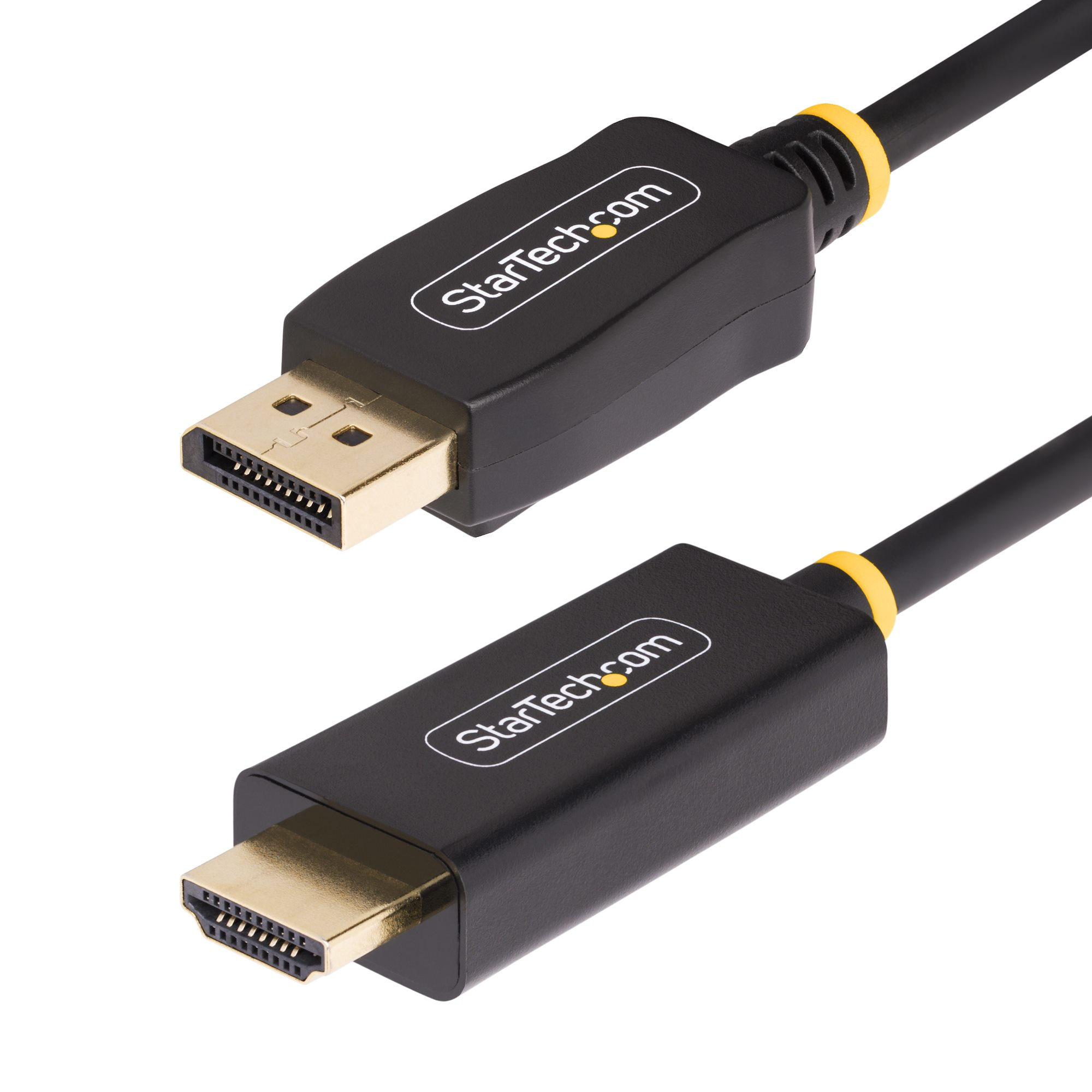

Connect a DisplayPort source to an HDMI display up to 6.6ft (2m) away, with support for up to 4K 60Hz HDR video
Connect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 6.6-foot (2-meter) Active DisplayPort to HDMI Adapter Cable.
4K 60Hz HDR Capabilities
HDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.
Compatibility
The Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.
Designed and Built for IT Professionals
Integrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.
The StarTech.com Advantage
Specs
| Features |
| Cable length |
2 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Gold |
| HDMI version |
2.0b |
| HDCP |
Yes |
| HDCP version |
1.4/2.3 |
| DisplayPort version |
1.4 |
| High Dynamic Range (HDR) supported |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Supported graphics resolutions |
2048 x 1536 (QXGA), 3840 x 2160, 2560 x 1440, 4096 x 2160, 1920 x 1200 (WUXGA), 3072 x 1728, 3200 x 1800 |
| Bandwidth |
18000 MB/s |
| Maximum refresh rate |
120 Hz |
| Refresh rate at maximum resolution |
60 Hz |
| Product colour |
Black |
| Chipset |
Synaptics - VMR7100 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable type |
Round cable |
| Colour depth |
10 bit |
| Colour sampling |
4:4:4 |
| Supported audio channels |
7.1 |
| Converter type |
Active video converter |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Cable diameter |
5 mm |
| Weight |
82 g |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Master (outer) case width |
300 mm |
| Master (outer) case length |
400 mm |
| Master (outer) case height |
300 mm |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
170 mm |
| Package depth |
200 mm |
| Package height |
10 mm |
| Package weight |
85 g |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com 6.6ft (2m) DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to HDMI 2.0b, Active Video Converter, DisplayPort Desktop to HDMI Monitor. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: HDMI Type A (Standard). Cable diameter: 5 mm, Weight: 82 g. Quantity per pack: 1 pc(s), Package width: 170 mm, Package depth: 200 mm. Master (outer) case width: 300 mm, Master (outer) case length: 400 mm, Master (outer) case height: 300 mm
Product Description
Connect a DisplayPort source to an HDMI display up to 6.6ft (2m) away, with support for up to 4K 60Hz HDR video
Connect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 6.6-foot (2-meter) Active DisplayPort to HDMI Adapter Cable.
4K 60Hz HDR Capabilities
HDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.
Compatibility
The Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.
Designed and Built for IT Professionals
Integrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.
