Stock Status: 1x unit in stock
Connect fiber network devices for high-speed transfers with LSZH rated cable

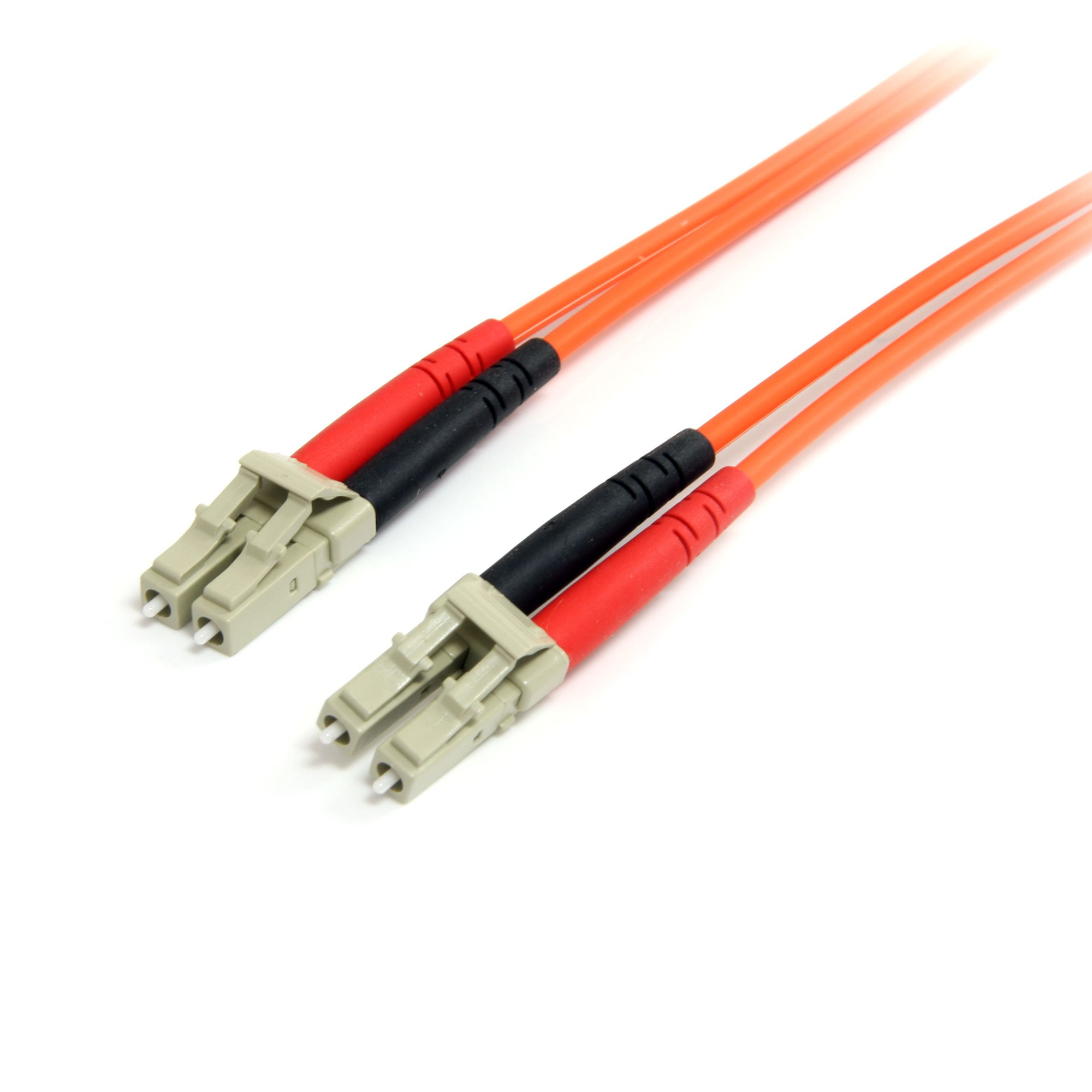

The FIBLCLC2 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated at both ends with LC (male) connectors, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our LC-LC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
Specs
| Weight & dimensions |
| Weight |
18 g |
| Features |
| Cable length |
2 m |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Orange |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fibre optic type |
OM1 |
| Full duplex |
Yes |
| Core diameter |
62.5 µm |
| Cladding diameter |
125 µm |
| Fiber mode structure |
Multi-mode |
| Logistics data |
| Master (outer) case width |
353 mm |
| Harmonized System (HS) code |
85447000 |
| Master (outer) case length |
480 mm |
| Master (outer) case height |
310 mm |
| Products per master (outer) case |
240 pc(s) |
| Packaging data |
| Package width |
201 mm |
| Package depth |
147 mm |
| Package height |
22 mm |
| Package weight |
30 g |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certification |
| Compliance certificates |
RoHS, CE |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
StarTech.com 2m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/LC. Cable length: 2 m, Fibre optic type: OM1, Connector 1: LC, Connector 2: LC, Core diameter: 62.5 µm, Full duplex
Product Description
Connect fiber network devices for high-speed transfers with LSZH rated cable
The FIBLCLC2 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated at both ends with LC (male) connectors, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our LC-LC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
