Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices

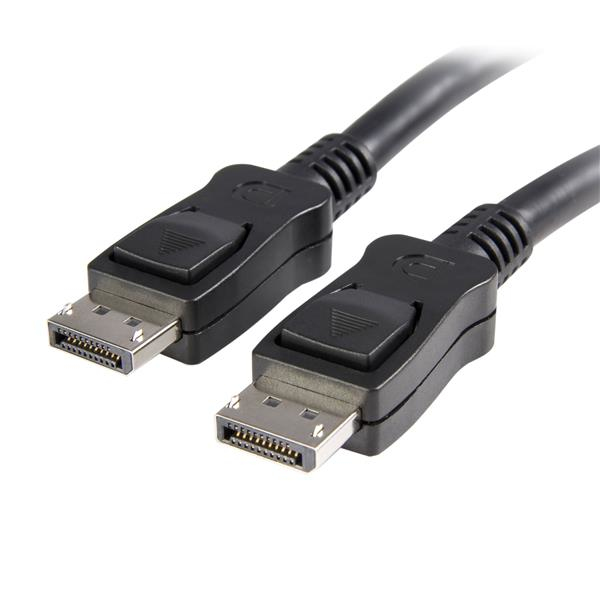

The DISPL3M 3m DisplayPort 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DISPL3M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The StarTech.com Advantage
- Prevent accidental disconnections with latched connectors
- Guaranteed reliability
Specs
| Features |
| Cable length |
3 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Nickel |
| Colour of product |
Black |
| Latching connectors |
Y |
| Cable rating |
CMG (CM) |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
28 |
| DisplayPort version |
1.2 |
| DisplayPort Content Protection (DPCP) |
Y |
| Bandwidth |
21600 MB/s |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP |
Y |
| Plug and Play |
Y |
| RoHS compliance |
Y |
| Number of conductors |
19 |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Weight & dimensions |
| Cable diameter |
7.3 mm |
| Weight |
210 g |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
10 mm |
| Package weight |
219 g |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Technical details |
| Sustainability certificates |
RoHS |
| Logistics data |
| Master (outer) case width |
33 cm |
| Master (outer) case length |
50 cm |
| Master (outer) case height |
28 cm |
| Products per master (outer) case |
50 pc(s) |
| Packaging data |
| Cable diameter |
7.3 mm |
| Weight |
210 g |
| Quantity per pack |
1 pc(s) |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
22 mm |
| Package weight |
219 g |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 3m (10ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Sustainability certificates: RoHS. Cable diameter: 7.3 mm, Weight: 210 g, Quantity per pack: 1 pc(s). Master (outer) case width: 33 cm, Master (outer) case length: 50 cm, Master (outer) case height: 28 cm
Product Description
Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices
The DISPL3M 3m DisplayPort 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DISPL3M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The StarTech.com Advantage
- Prevent accidental disconnections with latched connectors
- Guaranteed reliability
