Stock Status: 1x unit in stock
Add flexibility to your rack by expanding or reducing the equipment mounting depth by 4 inches

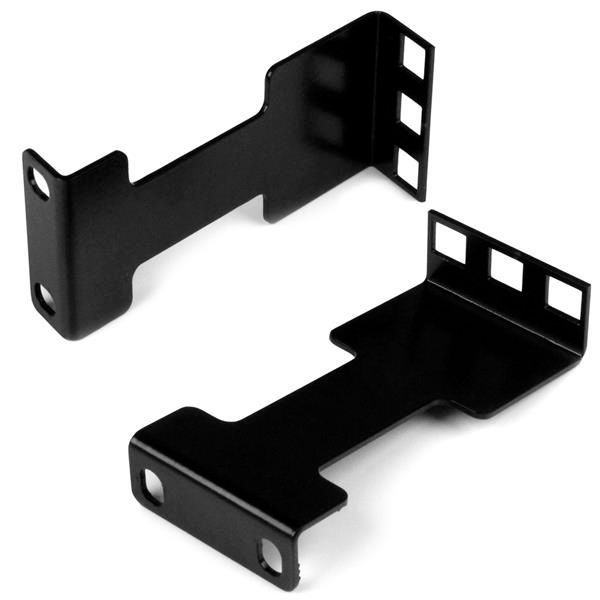

This depth adapter kit lets you extend or reduce the mounting depth of one rack unit (1U) in your server rack by up to four inches. If you're using the adapter kit in a two post installation the extenders can support a total weight load of 10 lbs. (4.5 kg). If you're using the adapter kit in a four post installation, the extenders can support a total weight load of 90 lbs. (40 kg), you can even use two sets of extender brackets in a four post installation and achieve the same weight capacity performance.
This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Mount equipment that's too long, or too short
You can use this adapter kit to mount equipment in your server rack that's up to four inches longer or shorter than the rack's mounting depth.
Save money by mounting all of your equipment in one rack
With this adapter kit, you can customize your server rack to support different mounting depths, so you have the freedom to mount equipment of different depths in the same rack. It’s a cost-saving, hassle-free way to consolidate your equipment into a single rack, so you have one server rack to manage instead of two.
Cable management flexibility
The depth adapter kit can also be used to help manage cables. You can mount equipment 4” in from the rails, to prevent cables from protruding from the rack. You can use the rail depth adapter to mount equipment that has high density cabling, such as patch panels, PDUs or network switches, to minimize the effects of cable strain and provide easier access to the cables.
The RDA1U is backed by a 2-year warranty and free lifetime technical support.
Specs
| Weight & dimensions |
| Width |
45 mm |
| Depth |
101 mm |
| Height |
21 mm |
| Weight |
104.6 g |
| Features |
| Type |
Depth adapter |
| Product colour |
Black |
| Maximum weight capacity |
40 kg |
| Rack capacity |
1U |
| Certification |
TAA, CE, REACH |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Screws included |
Yes |
| Number of screws |
4 |
| Cage nuts included |
Yes |
| Number of cage nuts |
4 |
| Logistics data |
| Master (outer) case width |
242 mm |
| Master (outer) case length |
304 mm |
| Master (outer) case height |
238 mm |
| Products per master (outer) case |
60 pc(s) |
| Harmonized System (HS) code |
85389099 |
| Packaging data |
| Quantity per pack |
2 pc(s) |
| Package width |
125 mm |
| Package depth |
220 mm |
| Package height |
20 mm |
| Package weight |
146.7 g |
Features
StarTech.com Server Rack Depth Extender - 1U - 4in / 10 cm - TAA Compliant - Recessed Rack Adapter - Rack Mount Adapter Kit - Network Rack Extender. Type: Depth adapter, Product colour: Black. Quantity per pack: 2 pc(s). Weight: 104.6 g
Product Description
Add flexibility to your rack by expanding or reducing the equipment mounting depth by 4 inches
This depth adapter kit lets you extend or reduce the mounting depth of one rack unit (1U) in your server rack by up to four inches. If you're using the adapter kit in a two post installation the extenders can support a total weight load of 10 lbs. (4.5 kg). If you're using the adapter kit in a four post installation, the extenders can support a total weight load of 90 lbs. (40 kg), you can even use two sets of extender brackets in a four post installation and achieve the same weight capacity performance.
This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Mount equipment that's too long, or too short
You can use this adapter kit to mount equipment in your server rack that's up to four inches longer or shorter than the rack's mounting depth.
Save money by mounting all of your equipment in one rack
With this adapter kit, you can customize your server rack to support different mounting depths, so you have the freedom to mount equipment of different depths in the same rack. It’s a cost-saving, hassle-free way to consolidate your equipment into a single rack, so you have one server rack to manage instead of two.
Cable management flexibility
The depth adapter kit can also be used to help manage cables. You can mount equipment 4” in from the rails, to prevent cables from protruding from the rack. You can use the rail depth adapter to mount equipment that has high density cabling, such as patch panels, PDUs or network switches, to minimize the effects of cable strain and provide easier access to the cables.
The RDA1U is backed by a 2-year warranty and free lifetime technical support.
