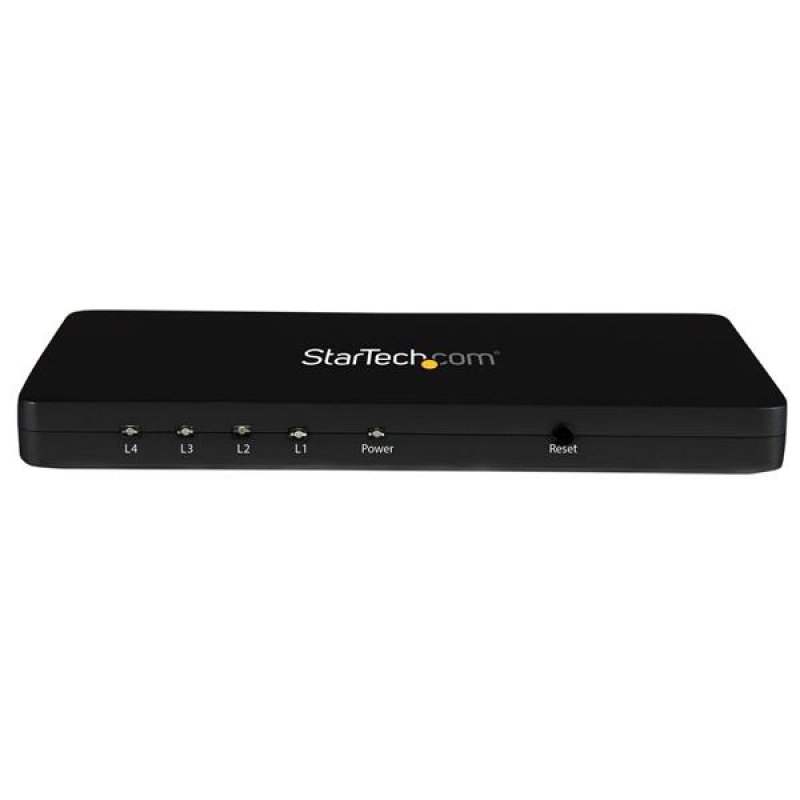

The ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio / video source devices, such as a computer, Blu-ray player or cable TV set-top box.
With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.
Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.
Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.
The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- Take advantage of 4K (Ultra HD) video with compact HDMI 4K splitter enabling you to handle the latest devices and displays
- Ensure your splitter stays where you put it with a solid aluminum housing, unlike lighter plastic splitters that get dragged out of place by attached HDMI cables
- Ensure an ideal video output with EDID emulation
Specs
| Technical details |
| HDMI version |
1.4 |
| Housing material |
Aluminium |
| Supported audio channels |
7.1 |
| Audio support |
Y |
| Sustainability certificates |
RoHS |
| Packaging content |
| Manual |
Y |
| AC adapter included |
Y |
| Included power plug types |
AU,EU,NA,UK |
| Ports & interfaces |
| Video ports quantity |
4 |
| Video port type |
HDMI |
| HDMI version |
1.4 |
| Video out |
4x HDMI |
| Weight & dimensions |
| Dimensions (WxDxH) |
84 x 139 x 14 mm |
| Weight |
280 g |
| Package length |
21.8 cm |
| Package width |
148 mm |
| Package height |
52 mm |
| Package weight |
600 g |
| Width |
85 mm |
| Depth |
140 mm |
| Height |
12 mm |
| Power |
| Input voltage |
100 - 240 V |
| Input current |
0.35 A |
| Output voltage |
5 V |
| Output current |
1 A |
| Power consumption (typical) |
5 W |
| AC input voltage |
100 - 240 V |
| Illumination/Alarms |
| Power LED |
Y |
| LED indicators |
Activity,Power |
| Indication |
| Power LED |
Y |
| LED indicators |
Activity,Power |
| Colour |
| Colour of product |
Black |
| Product colour |
Black |
| Video |
| Supported graphics resolutions |
1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA) |
| Maximum resolution |
3840 x 2160 pixels |
| Full HD |
Y |
| HD-Ready |
Y |
| Supported video modes |
720p,1080p,2160p |
| Packaging data |
| Package length |
21.8 cm |
| Package width |
300 mm |
| Package height |
95 mm |
| Package weight |
530 g |
| Package depth |
360 mm |
| Certificates |
| Certification |
CE, FCC, RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Features |
| Maximum resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| Housing material |
Aluminium |
| Full HD |
Y |
| HD-Ready |
Y |
| Supported graphics resolutions |
1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA) |
| Power LED |
Y |
| Supported video modes |
720p,1080p,2160p |
| LED indicators |
Activity, Power |
| Certification |
CE, FCC, REACH |
| Maximum operating distance |
5 m |
| Maximum refresh rate |
30 Hz |
Features
StarTech.com 4K HDMI 4-Port Video Splitter – 1x4 HDMI Splitter w/ Solid Aluminum Housing – 4K 30Hz. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Aluminium. AC input voltage: 100 - 240 V, Input current: 0.35 A, Output voltage: 5 V. Width: 85 mm, Depth: 140 mm, Height: 12 mm. Package width: 300 mm, Package depth: 360 mm, Package height: 95 mm
Product Description
The ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio / video source devices, such as a computer, Blu-ray player or cable TV set-top box.
With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.
Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.
Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.
The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- Take advantage of 4K (Ultra HD) video with compact HDMI 4K splitter enabling you to handle the latest devices and displays
- Ensure your splitter stays where you put it with a solid aluminum housing, unlike lighter plastic splitters that get dragged out of place by attached HDMI cables
- Ensure an ideal video output with EDID emulation
