Stock Status: 1x unit in stock

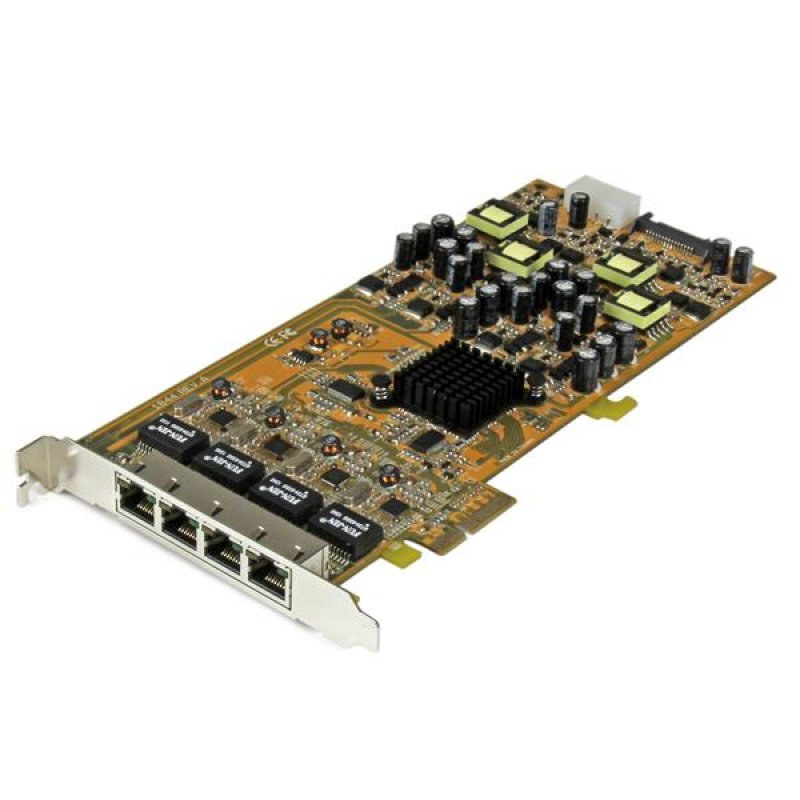

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer
The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
Specs
| Bandwidth |
| Data transfer rate (max) |
2000 Mbit/s |
| Buffer size |
48 KB |
| Full duplex |
Y |
| Maximum data transfer rate |
2000 Mbit/s |
| Networking |
| Networking standards |
IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Chipset |
RTL8111E |
| Ethernet LAN |
Y |
| Cabling technology |
10/100/1000BaseT(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Jumbo frames support |
Y |
| Maximum data transfer rate |
2000 Mbit/s |
| Wake-on-LAN ready |
Y |
| Auto MDIX IEEE |
Y |
| Full duplex |
Y |
| Jumbo frames |
9000 |
| System requirements |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Window |
| Linux operating systems supported |
Y |
| Server operating systems supported |
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Weight & dimensions |
| Package weight |
290 g |
| Width |
18 mm |
| Depth |
243 mm |
| Height |
120 mm |
| Weight |
102 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Internal |
Y |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
4 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of SATA power connectors |
1 |
| PCI Card form factor |
Full-height |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-40 - 75 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Power |
| Output voltage |
48 V |
| Certificates |
| Certification |
CE, FCC |
| RoHS compliance |
Y |
| Packaging content |
| Manual |
Y |
| Other features |
| Chipset |
RTL8111E |
| Buffer size |
48 KB |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of SATA power connectors |
1 |
| Jumbo frames |
9000 |
| Design |
| LED indicators |
Link, PoE |
| PCI Card form factor |
Full-height |
| Internal |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH, TAA |
| Chipset |
RTL8111E |
| Performance |
| Wake-on-LAN ready |
Y |
| Auto MDIX IEEE |
Y |
| Packaging data |
| Manual |
Y |
| Package weight |
428 g |
| Package width |
188 mm |
| Package depth |
296 mm |
| Package height |
66 mm |
| Drivers included |
Y |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging content |
| Manual |
Y |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s
Product Description
Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer
The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
