Stock Status: 1x unit in stock
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort-equipped laptop and a standard DP monitor

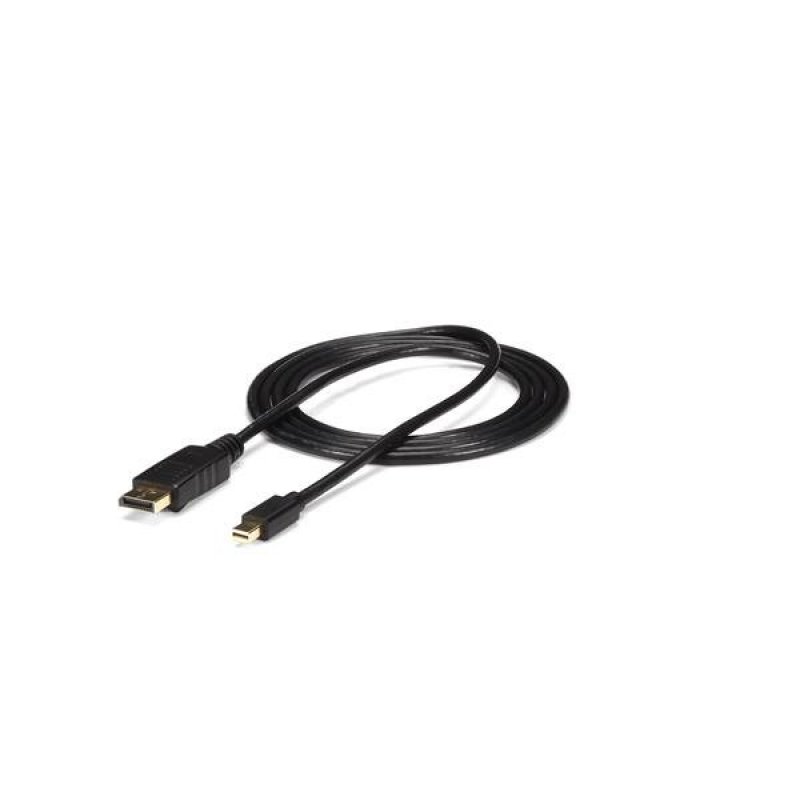

The MDP2DPMM6 6ft Mini DisplayPort to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM6 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note: Newer laptop and desktop computers (e.g. Apple) come equipped with Thunderbolt ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
- Latching DisplayPort connector prevents accidental disconnection
- Cost-effective solution for adding a standard DisplayPort connection to your Mini Displayport-equipped PC or Mac
- Guaranteed reliability
Specs
| Features |
| Cable length |
1.8 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Colour of product |
Black |
| Cable rating |
CMG (CM) |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
32 |
| DisplayPort version |
1.2 |
| DisplayPort Content Protection (DPCP) |
Y |
| Bandwidth |
21600 MB/s |
| Maximum resolution |
3840 x 2400 pixels |
| HDCP |
Y |
| Plug and Play |
Y |
| RoHS compliance |
Y |
| Number of conductors |
19 |
| Product colour |
Black |
| Certification |
CE, REA |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| Cable shielding |
Aluminum mylar foil |
| Multi-Stream Transport (MST) |
Y |
| Weight & dimensions |
| Cable diameter |
4.8 mm |
| Weight |
75 g |
| Package width |
15 mm |
| Package depth |
210 mm |
| Package height |
120 mm |
| Package weight |
90 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Technical details |
| Sustainability certificates |
RoHS |
| Logistics data |
| Master (outer) case width |
33 cm |
| Master (outer) case length |
50 cm |
| Master (outer) case height |
22 cm |
| Products per master (outer) case |
60 pc(s) |
| Packaging data |
| Cable diameter |
4.8 mm |
| Weight |
69 g |
| Quantity per pack |
1 pc(s) |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
11 mm |
| Package weight |
78 g |
| Sustainability |
| Sustainability certificates |
RoHS, CE |
Features
StarTech.com 6ft (2m) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord. Cable length: 1.8 m, Connector 1: Mini DisplayPort, Connector 2: DisplayPort. Sustainability certificates: RoHS, CE. Cable diameter: 4.8 mm, Weight: 69 g, Quantity per pack: 1 pc(s). Master (outer) case width: 33 cm, Master (outer) case length: 50 cm, Master (outer) case height: 22 cm
Product Description
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort-equipped laptop and a standard DP monitor
The MDP2DPMM6 6ft Mini DisplayPort to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM6 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note: Newer laptop and desktop computers (e.g. Apple) come equipped with Thunderbolt ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
- Latching DisplayPort connector prevents accidental disconnection
- Cost-effective solution for adding a standard DisplayPort connection to your Mini Displayport-equipped PC or Mac
- Guaranteed reliability
