Stock Status: 1x unit in stock
Facilitate a longer 8K connection without requiring an external power sourceConnect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this VESA-Certified Active DisplayPort 1.4 Cable. The active signal booster delivers reliable audio and 8K video output at up to 25ft (7.6m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.VESA-Certified DP8KFor seamless performance and compatibility between DisplayPort-enabled devices, the Active DisplayPort Cable is VESA Certified, for guaranteed DP 1.4 support and backward compatibility with DP 1.3/1.2Durable DesignThis long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.Supported DisplayPort 1.4 Features:This 8K DisplayPort cable supports all DP 1.4 features:• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display• HDCP 2.2 support• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps• High Dynamic Range 10 (HDR10)• Display Stream Compression 1.2 (DSC 1.2)• Multi-Stream Transport (MST) for daisy-chaining multiple monitors• 32 Uncompressed Digital Audio Channels• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versionsThe Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This VESA-certified DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.The StarTech.com Advantage
Specs
| Features |
| Cable length |
7.7 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
7680 x 4320 pixels |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Gold |
| DisplayPort version |
1.4 |
| Supported graphics resolutions |
3840 x 2160, 7680 x 4320 |
| Maximum refresh rate |
144 Hz |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Display Stream Compression (DSC) |
Yes |
| Display Stream Compression (DSC) version |
1.2 |
| Cable material |
Copper |
| Cable shielding |
Aluminum mylar foil |
| Jacket material |
Thermoplastic elastomer (TPE) |
| AWG wire size |
24/28 |
| Data transfer rate |
25.92 Gbit/s |
| Bandwidth |
32400 MB/s |
| HBR3 support |
Yes |
| Multi-Stream Transport (MST) |
Yes |
| Fire-resistance rating |
VW-1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Logistics data |
| Master (outer) case width |
430 mm |
| Master (outer) case length |
380 mm |
| Master (outer) case height |
290 mm |
| Products per master (outer) case |
20 pc(s) |
| Packaging data |
| Cable diameter |
7.5 mm |
| Package width |
330 mm |
| Package depth |
252 mm |
| Package height |
100 mm |
| Package weight |
500 g |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
RoHS |
Features

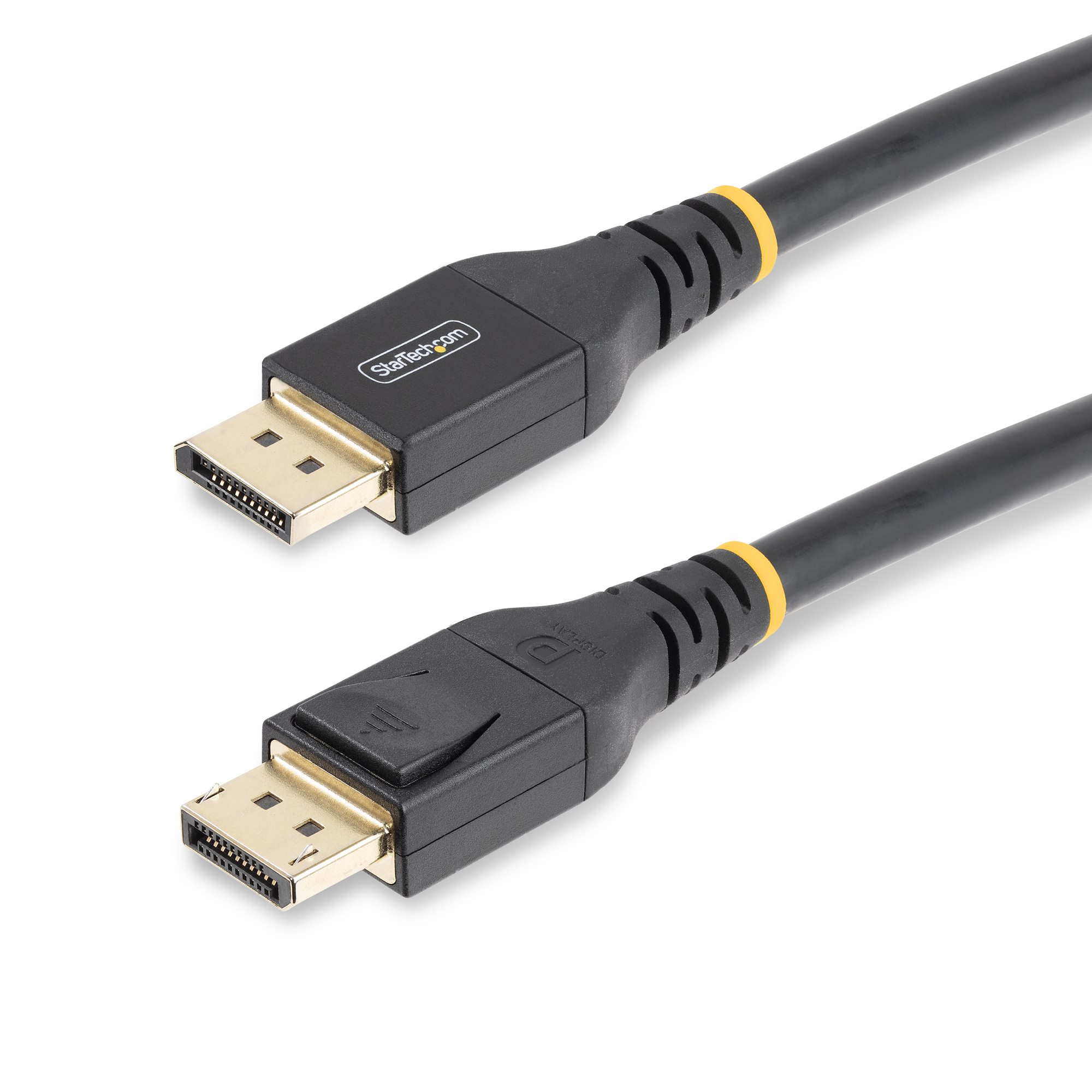

StarTech.com 25ft (7m) VESA-Certified Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M. Cable length: 7.7 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Sustainability certificates: RoHS. Cable diameter: 7.5 mm, Package width: 330 mm, Package depth: 252 mm. Master (outer) case width: 430 mm, Master (outer) case length: 380 mm, Master (outer) case height: 290 mm
Product Description
Facilitate a longer 8K connection without requiring an external power sourceConnect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this VESA-Certified Active DisplayPort 1.4 Cable. The active signal booster delivers reliable audio and 8K video output at up to 25ft (7.6m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.VESA-Certified DP8KFor seamless performance and compatibility between DisplayPort-enabled devices, the Active DisplayPort Cable is VESA Certified, for guaranteed DP 1.4 support and backward compatibility with DP 1.3/1.2Durable DesignThis long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.Supported DisplayPort 1.4 Features:This 8K DisplayPort cable supports all DP 1.4 features:• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display• HDCP 2.2 support• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps• High Dynamic Range 10 (HDR10)• Display Stream Compression 1.2 (DSC 1.2)• Multi-Stream Transport (MST) for daisy-chaining multiple monitors• 32 Uncompressed Digital Audio Channels• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versionsThe Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This VESA-certified DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.The StarTech.com Advantage
