Stock Status: 1x unit in stock
Control 2 high-resolution dual DisplayPort computers with a single console

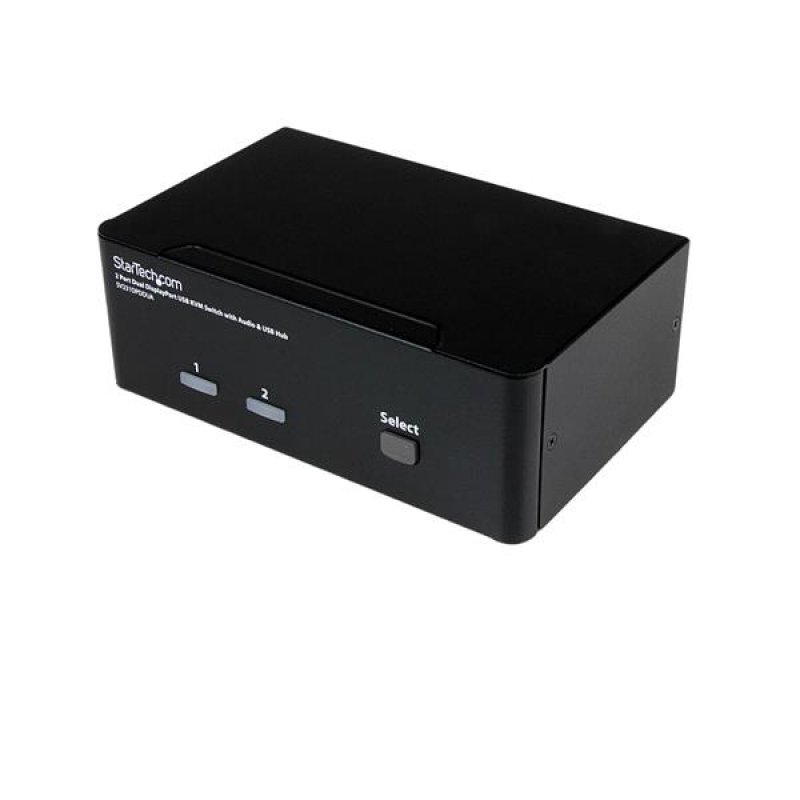

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| DisplayPorts quantity |
6 |
| Console USB ports quantity |
2 |
| USB hub |
Y |
| USB connector type |
USB Type-A |
| Audio connections |
Y |
| Headphone outputs |
3 |
| Number of microphone inputs |
3 |
| DC-in jack |
Y |
| Weight & dimensions |
| Width |
161 mm |
| Depth |
100 mm |
| Height |
57.5 mm |
| Weight |
734 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Networking |
| Ethernet LAN |
N |
| Power |
| AC input voltage |
110 - 240 V |
| Input current |
0.8 A |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power consumption (typical) |
18 W |
| External power adapter |
Y |
| Power plug type |
Type M |
| Compatible power plug types |
AU,EU,UK,US |
| Display |
| Built-in display |
N |
| On Screen Display (OSD) |
N |
| Packaging content |
| Manual |
Y |
| Other features |
| Audio support |
Y |
| IP control |
N |
| Design |
| Rack mounting |
N |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Y |
| Push button |
Y |
| Hot keys |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH, TAA |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2400 pixels |
| DDC2B support |
Y |
| Hot-Plug support |
Y |
| Daisy chain |
N |
| Number of users |
1 user(s) |
| Audio channels |
7.1 |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging data |
| Package width |
249 mm |
| Package depth |
187 mm |
| Package height |
100 mm |
| Package weight |
1.19 kg |
Features
StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2400 pixels, Number of users: 1 user(s). Product colour: Black, Housing material: Steel, Certification: CE, FCC, REACH, TAA. AC input voltage: 110 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Width: 161 mm, Depth: 100 mm, Height: 57.5 mm
Product Description
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
