Stock Status: 1x unit in stock
Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices

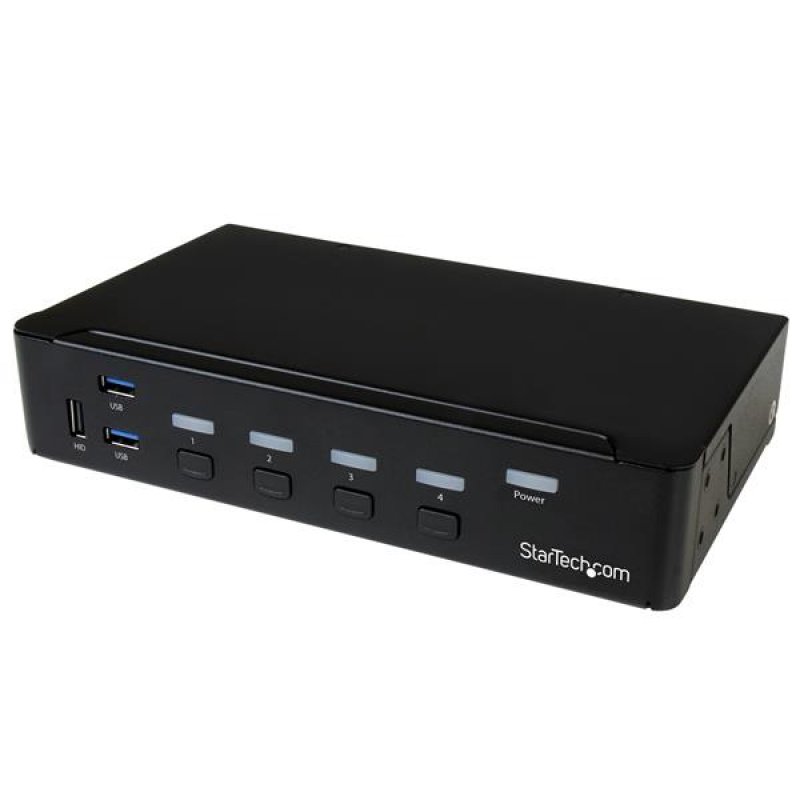

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
Astonishing picture quality
Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| HDCP |
Y |
| Console USB ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
3 |
| USB connector type |
USB Type-A |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Audio connections |
Y |
| Headphone outputs |
4 |
| DC-in jack |
Y |
| Weight & dimensions |
| Width |
130 mm |
| Depth |
220 mm |
| Height |
43 mm |
| Weight |
1.06 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Networking |
| Ethernet LAN |
N |
| Power |
| AC input voltage |
100-240 V |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power consumption (typical) |
18 W |
| Power plug type |
Type M |
| Compatible power plug types |
AU,EU,UK,US |
| Display |
| Built-in display |
N |
| Packaging content |
| Quick installation guide |
Y |
| Rubber feet |
Y |
| Other features |
| Audio support |
Y |
| IP control |
N |
| Design |
| Rack mounting |
Y |
| Product colour |
Black |
| LED indicators |
Link, Power |
| Hot keys |
Y |
| Certification |
CE, FCC, UL, PSE |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Plug and Play |
Y |
| Daisy chain |
N |
| Maximum operating distance |
10 m |
| Audio channels |
2.0 |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging data |
| Package width |
244 mm |
| Package depth |
297 mm |
| Package height |
85 mm |
| Package weight |
1.61 kg |
Features
StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Maximum operating distance: 10 m. Product colour: Black, LED indicators: Link, Power, Certification: CE, FCC, UL, PSE. AC input voltage: 100-240 V, Output voltage: 12 V, Output current: 1.5 A. Width: 130 mm, Depth: 220 mm, Height: 43 mm
Product Description
Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices
This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
Astonishing picture quality
Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support
