Connect your DVI Dual Link display to a DisplayPort video source, for high resolution applications

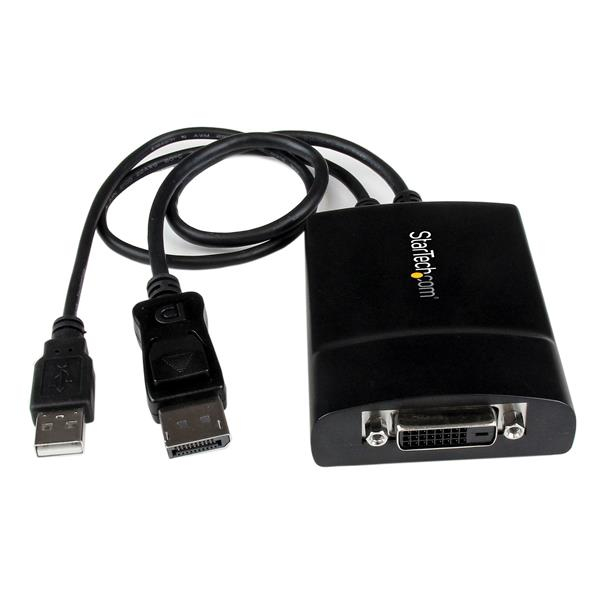

The DP2DVID2 DisplayPort to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
- Eliminates cost by making your DisplayPort video output compatible with an older, DVI-D (dual link) display
- Suitable for DisplayPort video cards not capable of outputting DVI signals (i.e. single mode DisplayPort)
Specs
| Weight & dimensions |
| Width |
64 mm |
| Depth |
549 mm |
| Height |
22 mm |
| Weight |
160 g |
| Power |
| USB powered |
Y |
| Packaging data |
| Quantity |
1 |
| Package width |
174 mm |
| Package depth |
143 mm |
| Package height |
35 mm |
| Package weight |
232 g |
| Other features |
| Converter type |
Active video converter |
| Maximum resolution |
2560 x 1600 pixels |
| Product colour |
Black |
| Housing material |
Plastic |
| Supported resolutions |
2560 x 1600 \n1920 x 1080 \n1920 x 1200 |
| RoHS compliance |
Y |
| Certification |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Features |
| Maximum resolution |
2560 x 1600 pixels |
| Maximum refresh rate |
120 Hz |
| Product colour |
Black |
| Converter type |
Active video converter |
| Certification |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Weight & dimensions |
| Weight |
160 g |
| Width |
64 mm |
| Depth |
549 mm |
| Height |
22 mm |
| Logistics data |
| Master (outer) case width |
33.7 cm |
| Master (outer) case length |
49.7 cm |
| Master (outer) case height |
22 cm |
| Products per master (outer) case |
28 pc(s) |
| Video |
| Maximum video resolution |
2560 x 1600 pixels |
| Video resolutions |
1920 x 1080,1920 x 1200,2560 x 1600 |
| Maximum refresh rate |
120 Hz |
| Ports & interfaces |
| Host interface |
DisplayPort |
| Output interface |
DVI-D |
| Audio |
| Audio support |
N |
| Packaging data |
| Package width |
174 mm |
| Package depth |
143 mm |
| Package height |
35 mm |
| Package weight |
232 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com DisplayPort to DVI Dual Link Active Video Adapter Converter - DP to DVI-D - 2560x1600. Maximum resolution: 2560 x 1600 pixels, Maximum refresh rate: 120 Hz, Product colour: Black. Sustainability certificates: RoHS. Weight: 160 g, Width: 64 mm, Depth: 549 mm. Package width: 174 mm, Package depth: 143 mm, Package height: 35 mm. Master (outer) case width: 33.7 cm, Master (outer) case length: 49.7 cm, Master (outer) case height: 22 cm
Product Description
Connect your DVI Dual Link display to a DisplayPort video source, for high resolution applications
The DP2DVID2 DisplayPort to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
- Eliminates cost by making your DisplayPort video output compatible with an older, DVI-D (dual link) display
- Suitable for DisplayPort video cards not capable of outputting DVI signals (i.e. single mode DisplayPort)
