Startech.com Dual Port Gigabit PCIe NIC ST1000SPEXD4 - CMS01
[ST1000SPEXD4]

Name: Startech.com Dual Port Gigabit PCIe NIC ST1000SPEXD4 - CMS01
Brand: startech.com
SKU: ST1000SPEXD4
Price: 81.00 GBP
Availability: InStock

Part Number: ST1000SPEXD4

Manufacturer: startech.com

Condition: New

Short Description:

Startech.com Dual Port Gigabit PCIe NIC ST1000SPEXD4

£81.00
£97.20 - Inc VAT

Stock Status: 1x unit in stock

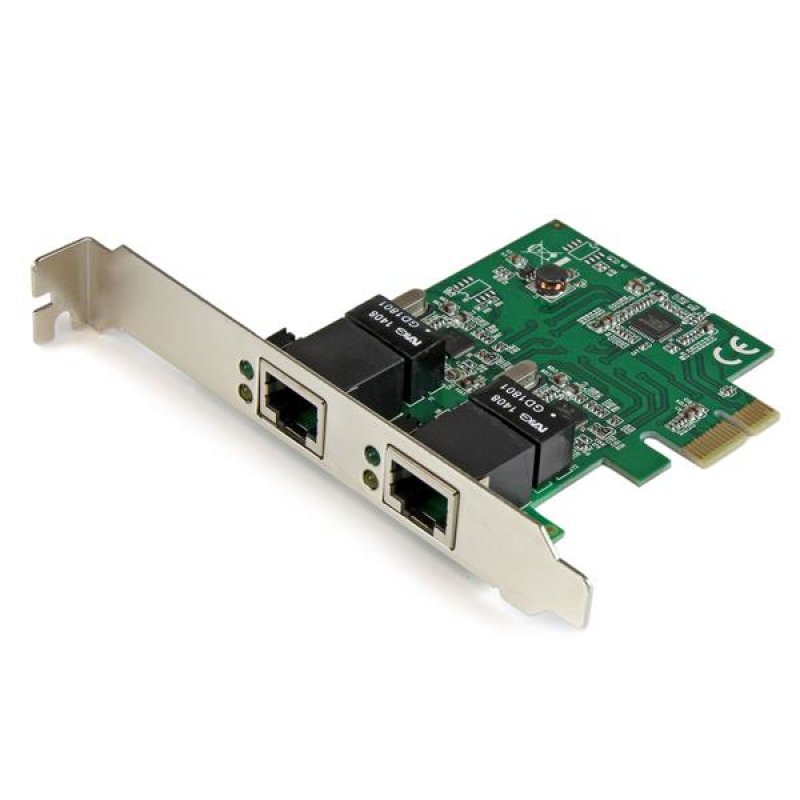

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
The StarTech.com Advantage
- Protect critical networked systems with a redundant and independent Gigabit port
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Maximize the networking efficiency of your virtualized server, with dedicated ports

Reviews

Specs

Bandwidth
Data transfer rate (max)	2000 Mbit/s
Full duplex	Y
Maximum data transfer rate	2000 Mbit/s
Networking
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Chipset	Realtek - RTL8111E, Asmedia - ASM1182E
Ethernet LAN	Y
Cabling technology	10/100/1000BaseT(X)
Ethernet interface type	Gigabit Ethernet
Flow control support	Y
Jumbo frames support	Y
VLAN tagging	Y
Jumbo frames	9000
Maximum data transfer rate	2000 Mbit/s
Wake-on-LAN ready	Y
Auto MDIX IEEE	Y
Full duplex	Y
System requirements
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Weight & dimensions
Width	18 mm
Depth	92.6 mm
Height	120 mm
Weight	51 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	133 g
Ports & interfaces
Connectivity technology	Wired
Internal	Y
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI version	2.0
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	0 - 100 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Certification	CE, FCC
RoHS compliance	Y
Packaging content
Manual	Y
Drivers included	Y
Low-profile bracket	Y
Other features
Chipset	Realtek - RTL8111E, Asmedia - ASM1182E
Flow control support	Y
Jumbo frames	9000
Design
LED indicators	Activity, Link
Internal	Y
RoHS compliance	Y
Certification	CE, FCC
Chipset	Realtek - RTL8111E, Asmedia - ASM1182E
Performance
Wake-on-LAN ready	Y
Auto MDIX IEEE	Y
Packaging data
Manual	Y
Drivers included	Y
Low-profile bracket	Y
Package width	170 mm
Package depth	143 mm
Package height	30 mm
Package weight	142 g
Technical details
Sustainability certificates	RoHS
Packaging content
Manual	Y
Sustainability
Sustainability certificates	RoHS

Related Products

Refurbished Printers

Features

StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s

Product Description

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
The StarTech.com Advantage
- Protect critical networked systems with a redundant and independent Gigabit port
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Maximize the networking efficiency of your virtualized server, with dedicated ports
