Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure

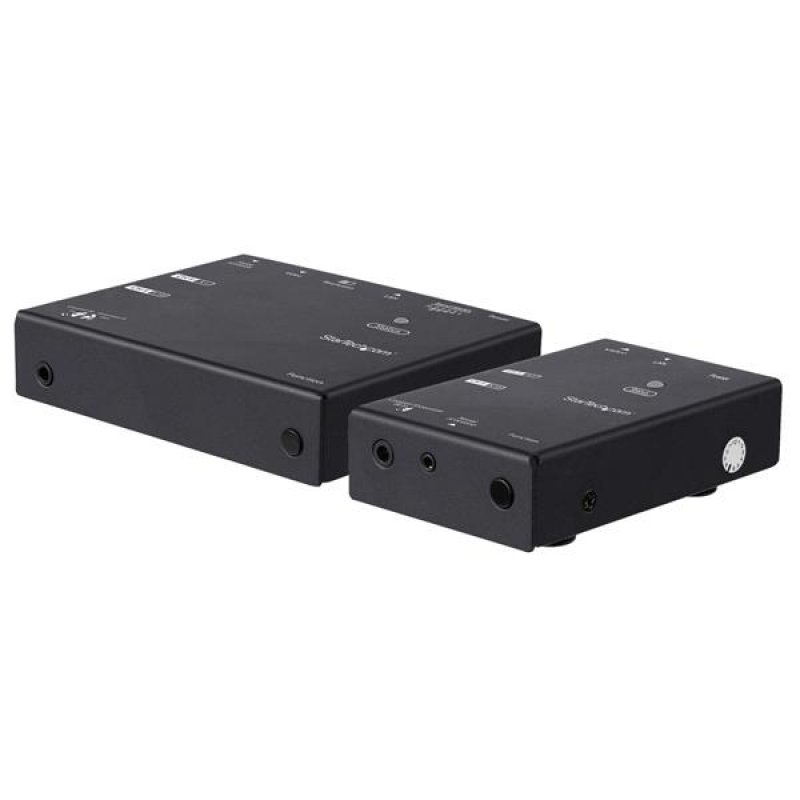

The HDMI over IP extender kit makes it easy for you to distribute HDMI to a remote display using your local area network. You can also use additional receivers (ST12MHDLNHR, sold separately) to distribute HDMI to multiple locations.
Save your network bandwidth with video compression
Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP kit uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements. Extending your HDMI signal using video compression saves your network resources, avoiding the hassle of a separate video network.
Customize your video distribution with a scalable solution
The HDMI over IP kit can be scaled to meet your specific needs. In a point-to-multipoint setup, you can route your HDMI signal to as many displays as you need, using additional receivers. For additional scalability, you can combine up to 99 different kits to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.
Get brilliant video at HD 1080p
The HDMI over IP kit maintains your HD video quality, supporting resolutions up to 1080p and making it easy to distribute dynamic digital signage throughout your site to attract customers.
The ST12MHDLNHK is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Efficiently distribute video throughout your site using your local area network
- Easily create your ideal digital signage with a versatile and scalable video distribution system
- Deliver brilliant HD quality video with 1080p support
Specs
| Technical details |
| Sustainability certificates |
RoHS |
| Ports & interfaces |
| Connectivity technology |
Wired |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| USB ports quantity |
2 |
| USB connector type |
Mini-USB B |
| Audio input |
3.5 mm |
| Audio output |
3.5 mm |
| Remote (IR) input |
1 |
| Remote (IR) output |
1 |
| Weight & dimensions |
| Weight |
3.2 kg |
| Packaging data |
| Package width |
92 mm |
| Package depth |
108 mm |
| Package height |
24 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| AC input voltage |
100 - 240 V |
| Operating voltage |
5 V |
| Input current |
0.3 A |
| Output current |
1 A |
| Packaging content |
| AC adapter included |
Y |
| Cables included |
LAN (RJ-45), Serial, USB |
| Included power plug types |
ANZ,EU,NA,UK |
| Manual |
Y |
| IR blaster included |
Y |
| IR receiver included |
Y |
| Remote control included |
Y |
| Mounting brackets included |
Y |
| Features |
| Type |
AV transmitter & receiver |
| Maximum resolution |
1920 x 100 pixels |
| Cable types supported |
Cat5e,Cat6 |
| Maximum transfer distance |
15 m |
| Maximum refresh rate |
60 Hz |
| Audio output channels |
2.0 channels |
| LED indicators |
Status |
| Supported video modes |
1080p |
| Material |
Aluminium |
| Rack mounting |
Y |
| Daisy chain |
Y |
| Rubber feet |
Y |
| Product colour |
Black |
| Certification |
CE, FCC, TAA, REACH |
Features
StarTech.com HDMI over IP Extender with Video Compression - 1080p. Type: AV transmitter & receiver, Maximum resolution: 1920 x 100 pixels, Cable types supported: Cat5e,Cat6. Connectivity technology: Wired, USB connector type: Mini-USB B, Audio input: 3.5 mm. AC input voltage: 100 - 240 V, Operating voltage: 5 V, Input current: 0.3 A. Weight: 3.2 kg. Package width: 92 mm, Package depth: 108 mm, Package height: 24 mm
Product Description
Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure
The HDMI over IP extender kit makes it easy for you to distribute HDMI to a remote display using your local area network. You can also use additional receivers (ST12MHDLNHR, sold separately) to distribute HDMI to multiple locations.
Save your network bandwidth with video compression
Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP kit uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements. Extending your HDMI signal using video compression saves your network resources, avoiding the hassle of a separate video network.
Customize your video distribution with a scalable solution
The HDMI over IP kit can be scaled to meet your specific needs. In a point-to-multipoint setup, you can route your HDMI signal to as many displays as you need, using additional receivers. For additional scalability, you can combine up to 99 different kits to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.
Get brilliant video at HD 1080p
The HDMI over IP kit maintains your HD video quality, supporting resolutions up to 1080p and making it easy to distribute dynamic digital signage throughout your site to attract customers.
The ST12MHDLNHK is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Efficiently distribute video throughout your site using your local area network
- Easily create your ideal digital signage with a versatile and scalable video distribution system
- Deliver brilliant HD quality video with 1080p support
