Stock Status: 1x unit in stock

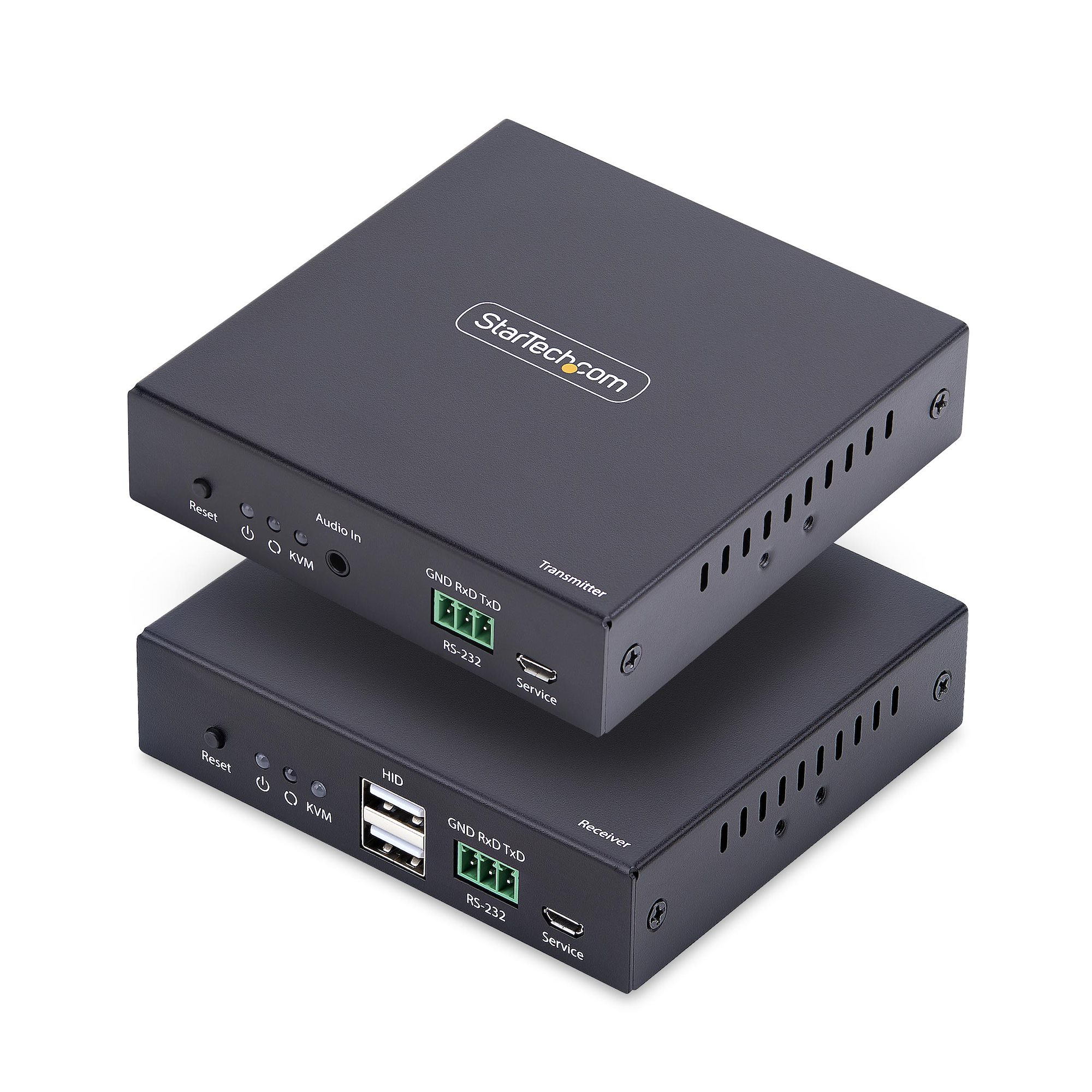

Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.
Professional-Grade Design
Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Packaging data |
| Package width |
240 mm |
| Package depth |
176 mm |
| Package height |
80 mm |
| Package weight |
1.1 kg |
| Power |
| Power plug type |
Type M |
| AC input voltage |
100 - 240 V |
| Input current |
0.3 A |
| AC adapter output voltage |
5 V |
| AC adapter output current |
2 A |
| Power consumption (transmitter) (max) |
10 W |
| Power consumption (receiver) (max) |
10 W |
| DC-in jack |
Yes |
| Features |
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Cable types supported |
Cat6 |
| Rack mounting |
No |
| Maximum digital resolution |
3840 x 2160 pixels |
| Maximum refresh rate |
60 Hz |
| On Screen Display (OSD) |
No |
| Product colour |
Black |
| LED indicators |
Yes |
| Transmitter |
| Transmitter video port type |
HDMI |
| Transmitter local video port |
Yes |
| Transmitter local video port type |
HDMI |
| RJ-45 ports quantity (transmitter) |
1 |
| Transmitter Micro-USB ports quantity |
1 |
| Receiver |
| Receiver local video port type |
HDMI |
| RJ-45 ports quantity (receiver) |
1 |
| Receiver Micro-USB ports quantity |
1 |
| Receiver USB Type-A ports quantity |
2 |
| Packaging content |
| AC adapter included |
Yes |
| Mounting bracket(s) included |
Yes |
| Included power plug types |
ANZ, EU, NA, UK |
| Ports & interfaces |
| USB port type |
USB Type-C |
| USB 2.0 ports quantity |
1 |
| HDMI version |
2.0 |
| RS-232 ports |
2 |
| PC Audio in |
Yes |
| PC Audio out |
Yes |
| Logistics data |
| Master (outer) case width |
380 mm |
| Master (outer) case length |
270 mm |
| Master (outer) case height |
420 mm |
| Products per master (outer) case |
10 pc(s) |
| Other features |
| Mean time between failures (MTBF) |
10000 h |
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
Features
StarTech.com HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB Over Ethernet/CAT6, AVoIP, Transmitter and Receiver Kit, Includes Mounting Kits. Type: Transmitter & receiver, Connectivity technology: Wired, Cable types supported: Cat6. Transmitter video port type: HDMI, Transmitter local video port type: HDMI. Receiver local video port type: HDMI. USB port type: USB Type-C. Power plug type: Type M, AC input voltage: 100 - 240 V, Input current: 0.3 A
Product Description
Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.
Professional-Grade Design
Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
