Stock Status: 1x unit in stock

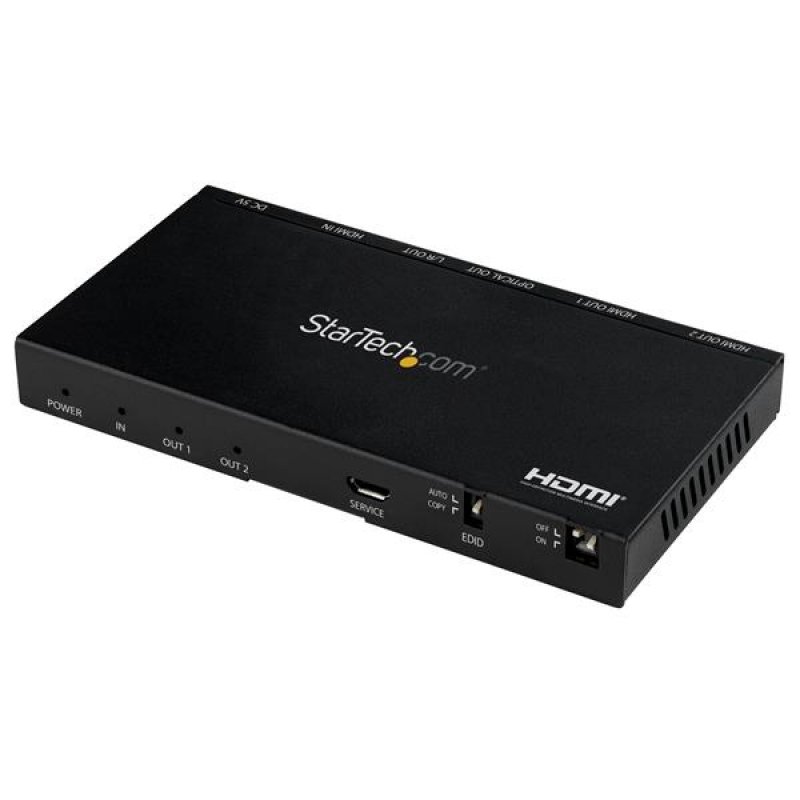

HDMI 2.0 Splitter | HDCP 2.2 | EDID Emulation | 7.1 Surround Sound | 2 Year Warranty
This 2-port HDMI splitter lets you connect your HDMI video source to two HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.
Supports True 4K at 60Hz
This 2 way HDMI splitter offers full support for your HDMI 2.0b equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color.
Widely Compatible
The HDMI 2.0 splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz, 1080p and 720p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application. With the built-in scaling function, the HDMI 1 in 2 out splitter can output to two displays at different resolutions simultaneously.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The ST122HD20 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Astonishing picture quality with support for 4K 60Hz and HDR
- Support for 7.1 surround sound audio
- Supports 4:4:4 chroma subsampling even at 4K 60Hz with bandwidth up to 18Gbps
Specs
| Weight & dimensions |
| Width |
115 mm |
| Depth |
205 mm |
| Height |
65 mm |
| Weight |
355 g |
| Packaging data |
| Package width |
200 mm |
| Package depth |
640 mm |
| Package height |
130 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Certificates |
| Certification |
CE, FCC, REACH |
| Power |
| AC adapter input voltage |
100 - 240 V |
| Power consumption (typical) |
5 W |
| Features |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Y |
| Ports & interfaces |
| HDMI in |
1 |
| Number of HDMI outputs |
2 |
| HDMI version |
2.0b |
| Audio output |
3.5 mm |
| Digital audio optical out |
1 |
| Audio |
| Supported audio channels |
7.1 |
| Video |
| Supported graphics resolutions |
1280 x 720 (HD 720),1920 x 1080 (HD 1080),3840 x 2160 |
| Maximum refresh rate |
60 Hz |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com 2-Port HDMI Splitter - 4K 60Hz with Built-In Scaler. Product colour: Black, Housing material: Metal. Supported graphics resolutions: 1280 x 720 (HD 720),1920 x 1080 (HD 1080),3840 x 2160, Maximum refresh rate: 60 Hz. HDMI version: 2.0b, Audio output: 3.5 mm. AC adapter input voltage: 100 - 240 V, Power consumption (typical): 5 W. Width: 115 mm, Depth: 205 mm, Height: 65 mm
Product Description
HDMI 2.0 Splitter | HDCP 2.2 | EDID Emulation | 7.1 Surround Sound | 2 Year Warranty
This 2-port HDMI splitter lets you connect your HDMI video source to two HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.
Supports True 4K at 60Hz
This 2 way HDMI splitter offers full support for your HDMI 2.0b equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color.
Widely Compatible
The HDMI 2.0 splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz, 1080p and 720p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application. With the built-in scaling function, the HDMI 1 in 2 out splitter can output to two displays at different resolutions simultaneously.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The ST122HD20 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Astonishing picture quality with support for 4K 60Hz and HDR
- Support for 7.1 surround sound audio
- Supports 4:4:4 chroma subsampling even at 4K 60Hz with bandwidth up to 18Gbps
