Stock Status: 1x unit in stock
10Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

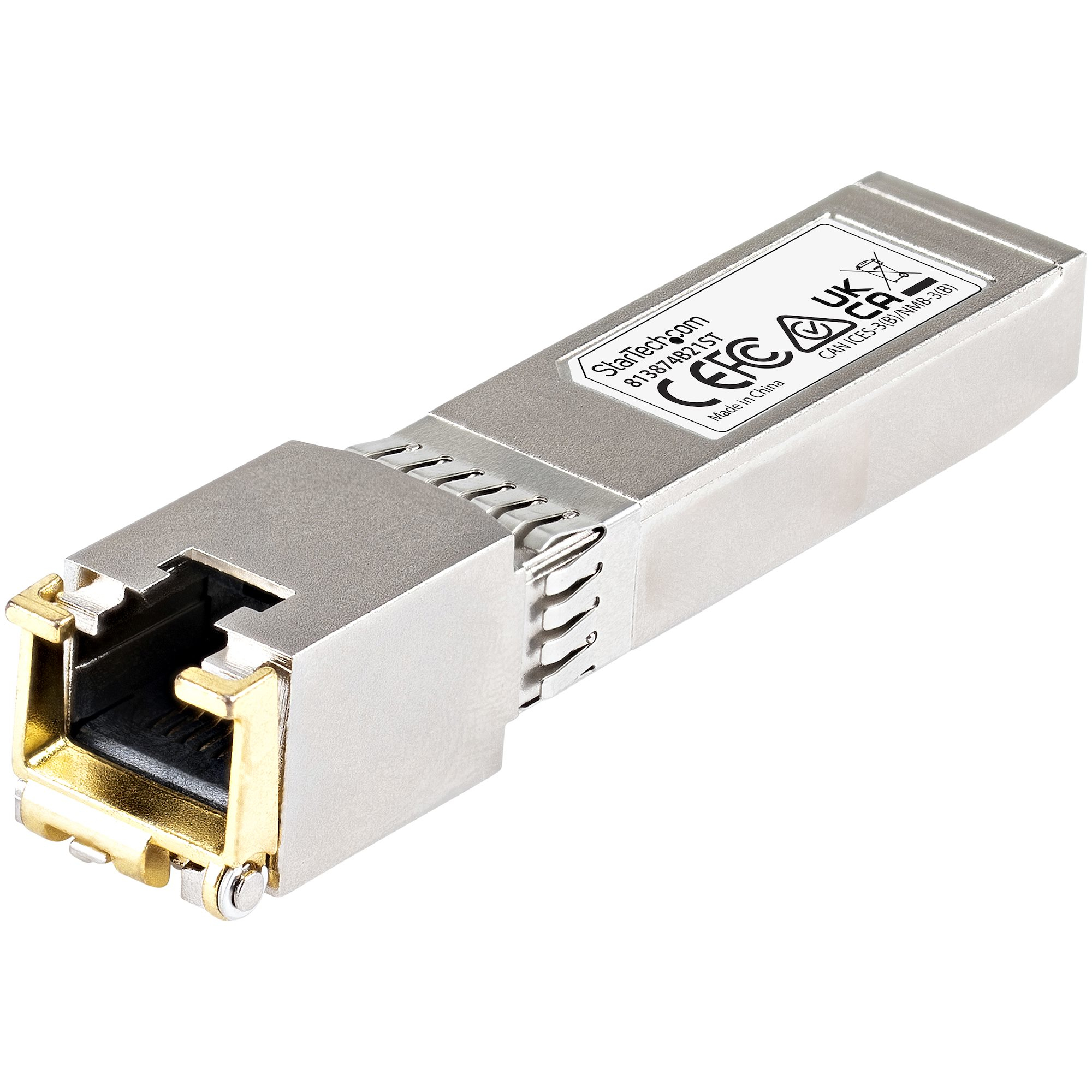

The 813874B21ST is an HPE 813874-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 4,598,430 hours
• Digital Diagnostics Monitoring (DDM): No
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 90 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
| Width |
13.4 mm |
| Depth |
69.8 mm |
| Height |
13.8 mm |
| Weight |
58 g |
| Power |
| Power consumption (typical) |
2.3 W |
| Performance |
| SFP transceiver type |
Copper |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Maximum transfer distance |
30 m |
| Networking standards |
IEEE 802.3an |
| Ethernet LAN (RJ-45) ports |
1 |
| Auto MDI/MDI-X |
Yes |
| Digital Diagnostics Monitoring (DDM) |
No |
| Features |
| Product colour |
Silver |
| Housing material |
Zinc steel |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
4598430 h |
| Brand compatibility |
HP |
| Logistics data |
| Master (outer) case width |
340 mm |
| Master (outer) case length |
638 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
290 mm |
| Products per master (outer) case |
150 pc(s) |
| Country of origin |
China |
| Packaging data |
| Package width |
75 mm |
| Package depth |
120 mm |
| Package height |
33 mm |
| Package weight |
31 g |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, FCC |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class. SFP transceiver type: Copper, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Zinc steel, Mean time between failures (MTBF): 4598430 h. Power consumption (typical): 2.3 W. Compliance certificates: RoHS, Certification: CE, FCC. Width: 13.4 mm, Depth: 69.8 mm, Height: 13.8 mm
Product Description
10Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty
The 813874B21ST is an HPE 813874-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 4,598,430 hours
• Digital Diagnostics Monitoring (DDM): No
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
