Stock Status: 1x unit in stock
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
Perform bidirectional cloning between M.2 NVMe and 2.5/3.5" SATA SSDs/HDDs without a computer, using this M.2 NVMe to SATA Drive Duplicator. The standalone sector-by-sector duplication supports SATA III (6Gbps) and works with any file format.

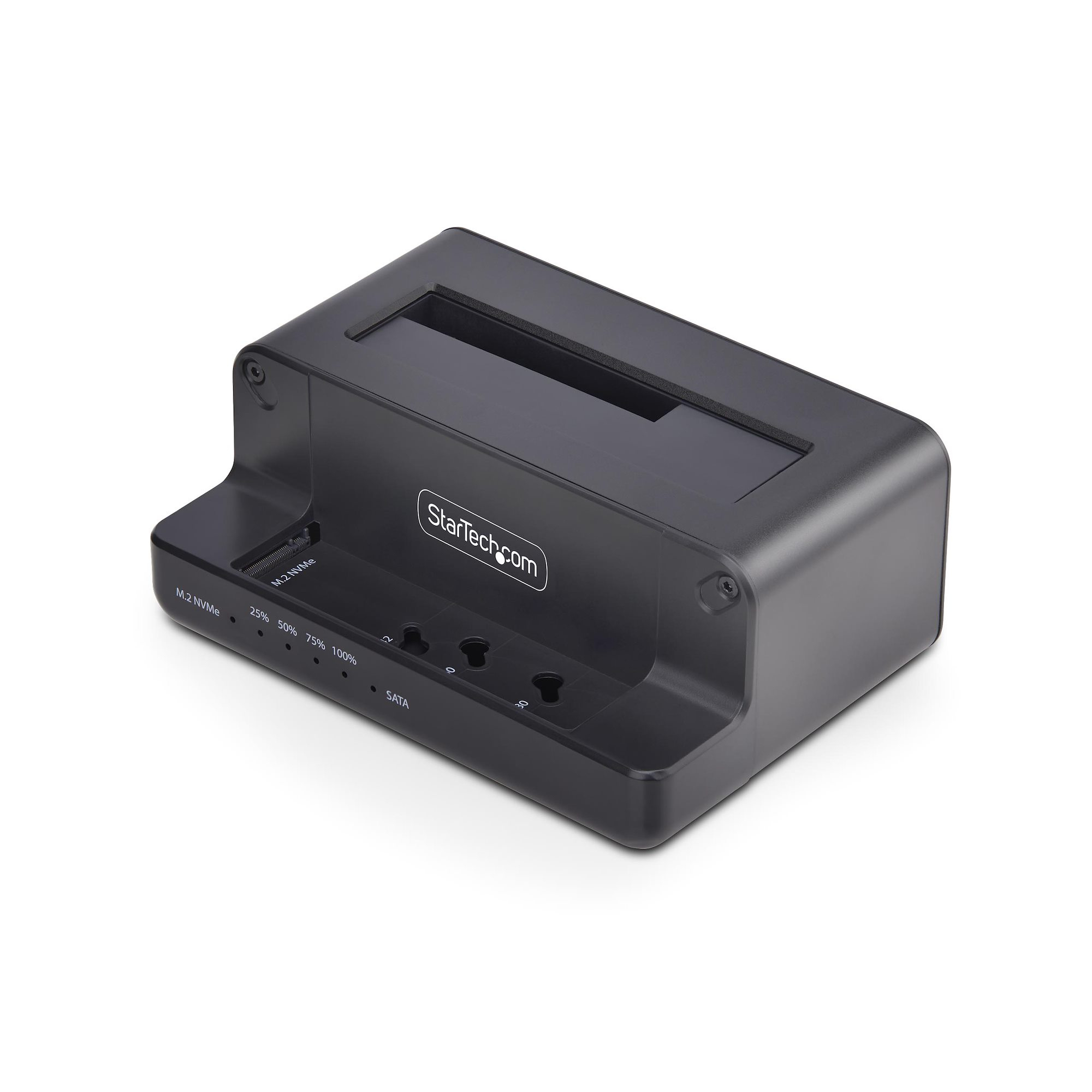

Standalone M.2 NVMe to SATA Cloner Dock
Clone an M.2 NVMe drive to a 2.5"/3.5" SATA SSD/HDD or vice versa. This solution is ideal for hardware upgrades, system imaging, or routine maintenance. The Duplicator Dock supports 2240, 2260, and 2280 M.2 NVMe sizes and fits all standard SATA drives, seamlessly combining both legacy and modern storage solutions.
External Drive Access over USB-C
The USB 3.2 Gen 2 (10Gbps) host connection provides external access to both M.2 NVMe and SATA drives, facilitating data transfer between systems without the need to install the drives internally.
Compact Form Factor
The Standalone M.2 NVMe to 2.5/3.5in SATA Cloner is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals when troubleshooting on-site, with the ability to re-image and re-deploy M.2 NVMe and SATA SSDs/HDDs without the need for a dedicated cloning station.
The SSD Cloner Dock features a top-loading design to promote passive airflow for consistent temperatures during peak performance. The Standalone Duplicator supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
Specs
| Technical details |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Weight & dimensions |
| Dimensions (WxDxH) |
100 x 140 x 55 mm |
| Weight |
292 g |
| Power |
| Power consumption (typical) |
0.1 W |
| AC input voltage |
100 - 240 V |
| Input current |
1.5 A |
| Output voltage |
12 V |
| Output current |
3 A |
| Power plug type |
Type M |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Hard drive |
| Supported HDD sizes |
2.5,3.5" |
| Supported HDD interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
| SSD support |
Yes |
| SSD interface |
M.2, PCI Express 3.0, PCI Express 3.1 |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 85% |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Packaging data |
| Package width |
249 mm |
| Package depth |
118 mm |
| Package height |
65 mm |
| Package weight |
600 g |
| Packaging content |
| Cables included |
USB Type-C |
| AC adapter included |
Yes |
| Manual |
Yes |
| Logistics data |
| Master (outer) case length |
350 mm |
| Master (outer) case width |
510 mm |
| Master (outer) case height |
255 mm |
| Products per master (outer) case |
20 pc(s) |
| Features |
| Product type |
HDD/SSD duplicator |
| Number of simultaneous copies |
1 copies |
| Interface |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Product colour |
Black |
| Duplicator operating modes |
Copy |
| Transfer rate |
27 GB/min |
| Plug and Play |
Yes |
| Chipset |
JMS581D |
| Number of fans |
0 fan(s) |
| LED indicators |
Yes |
Features
StarTech.com M.2 NVMe to 2.5/3.5" SATA Drive Duplicator, Dual Bay Standalone SSD Cloner/Drive Dock, Bidirectional NVMe to SATA / SATA to NVMe, Up to 27GBpm, TAA. Product type: HDD/SSD duplicator, Number of simultaneous copies: 1 copies, Interface: USB 3.2 Gen 2 (3.1 Gen 2). Supported HDD sizes: 2.5,3.5", Supported HDD interfaces: Serial ATA, Serial ATA II, Serial ATA III, SSD interface: M.2, PCI Express 3.0, PCI Express 3.1. Power consumption (typical): 0.1 W, AC input voltage: 100 - 240 V, Input current: 1.5 A. Dimensions (WxDxH): 100 x 140 x 55 mm, Weight: 292 g. Package width: 249 mm, Package depth: 118 mm, Package height: 65 mm
Product Description
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
Perform bidirectional cloning between M.2 NVMe and 2.5/3.5" SATA SSDs/HDDs without a computer, using this M.2 NVMe to SATA Drive Duplicator. The standalone sector-by-sector duplication supports SATA III (6Gbps) and works with any file format.
Standalone M.2 NVMe to SATA Cloner Dock
Clone an M.2 NVMe drive to a 2.5"/3.5" SATA SSD/HDD or vice versa. This solution is ideal for hardware upgrades, system imaging, or routine maintenance. The Duplicator Dock supports 2240, 2260, and 2280 M.2 NVMe sizes and fits all standard SATA drives, seamlessly combining both legacy and modern storage solutions.
External Drive Access over USB-C
The USB 3.2 Gen 2 (10Gbps) host connection provides external access to both M.2 NVMe and SATA drives, facilitating data transfer between systems without the need to install the drives internally.
Compact Form Factor
The Standalone M.2 NVMe to 2.5/3.5in SATA Cloner is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals when troubleshooting on-site, with the ability to re-image and re-deploy M.2 NVMe and SATA SSDs/HDDs without the need for a dedicated cloning station.
The SSD Cloner Dock features a top-loading design to promote passive airflow for consistent temperatures during peak performance. The Standalone Duplicator supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
