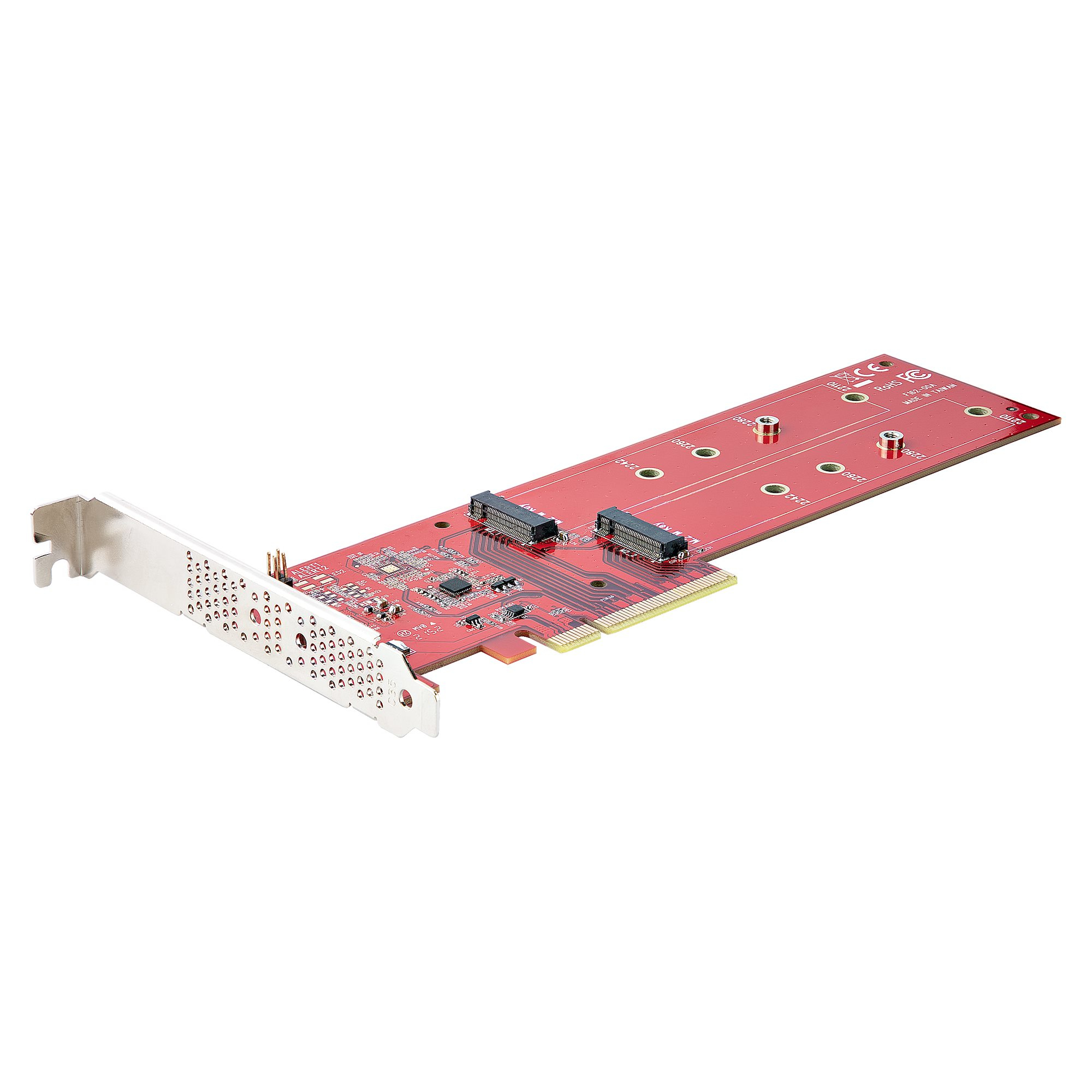

Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | BifurcationThis Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server.Boost System PerformanceTake full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.Access two M.2 PCIe SSDs simultaneouslyNo on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation.Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.Wide CompatibilityThe PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems, if the computer/motherboard supports bifurcation.Vented BracketsThe included full and low-profile vented brackets increase air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistanceThe StarTech.com Advantage
Specs
| System requirements |
| Windows operating systems supported |
Y |
| Linux operating systems supported |
Y |
| Supported storage drive heights |
22 mm |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
M.2 |
| Expansion card standard |
PCIe 4.0 |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 80 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
15 - 90% |
| Weight & dimensions |
| Width |
102 mm |
| Depth |
228 mm |
| Height |
22 mm |
| Weight |
74 g |
| Design |
| Internal |
Y |
| Product colour |
Red |
| LED indicators |
Y |
| Mean time between failures (MTBF) |
6493014 h |
| Hot-swap |
N |
| Logistics data |
| Products per master (outer) case |
30 pc(s) |
| Master (outer) case width |
380 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case height |
310 mm |
| Packaging data |
| Mounting brackets included |
Y |
| Screws included |
Y |
| Quick installation guide |
Y |
| Package width |
170 mm |
| Package depth |
290 mm |
| Package height |
30 mm |
| Package weight |
192 g |
| Features |
| Data transfer rate (max) |
7.8 Gbit/s |
Features
StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Red, Mean time between failures (MTBF): 6493014 h. Data transfer rate (max): 7.8 Gbit/s. Supported storage drive heights: 22 mm. Width: 102 mm, Depth: 228 mm, Height: 22 mm
Product Description
Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | BifurcationThis Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server.Boost System PerformanceTake full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.Access two M.2 PCIe SSDs simultaneouslyNo on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation.Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.Wide CompatibilityThe PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems, if the computer/motherboard supports bifurcation.Vented BracketsThe included full and low-profile vented brackets increase air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistanceThe StarTech.com Advantage
