Stock Status: 1x unit in stock
Connect a DVI monitor to a single-mode DisplayPort output from your computer

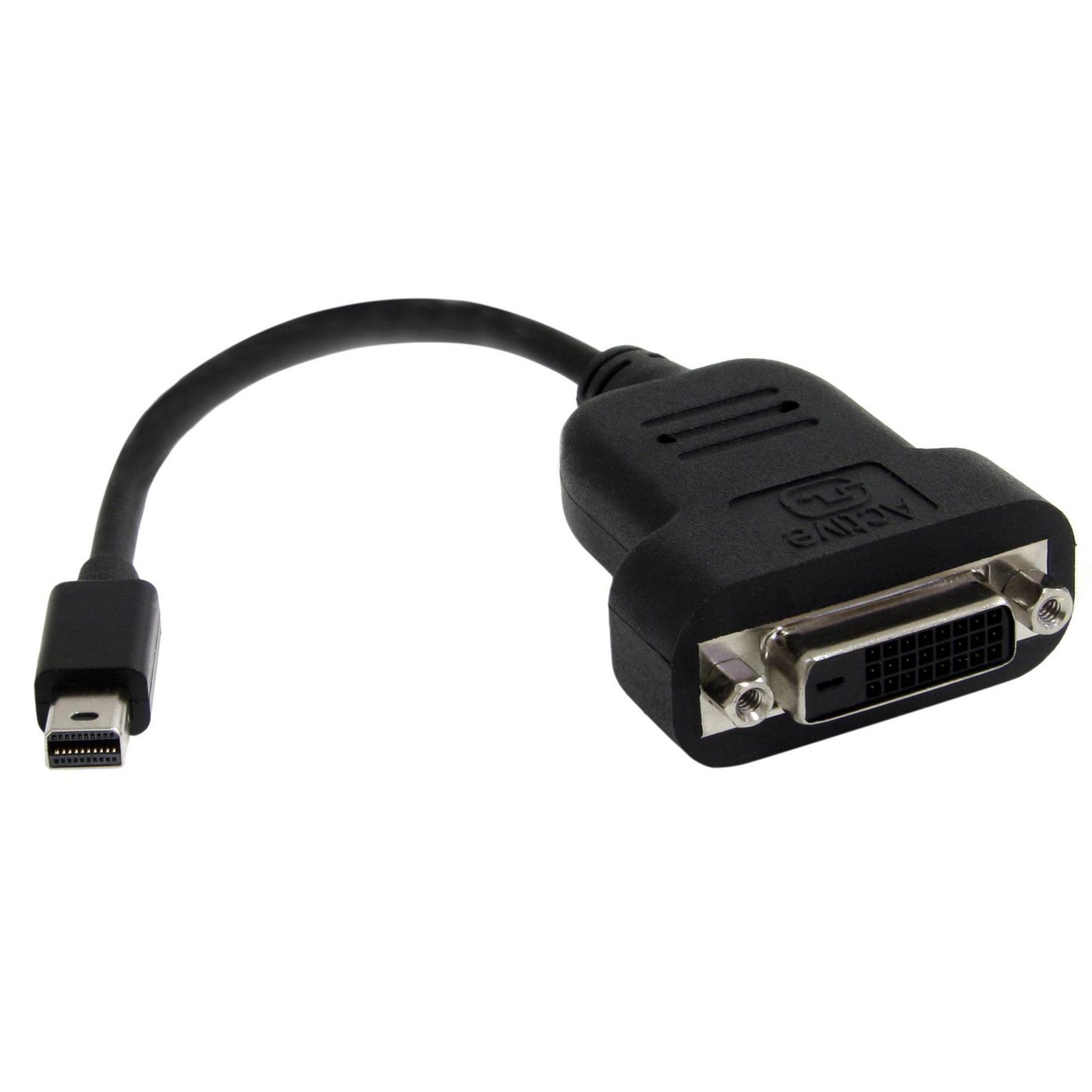

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Features |
| Cable length |
0.12 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| HDCP |
Yes |
| HDCP version |
1.3 |
| DisplayPort version |
1.2 |
| Dual Link DVI |
No |
| Maximum resolution |
1920 x 1200 pixels |
| Maximum refresh rate |
60 Hz |
| Product colour |
Black |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Plug and Play |
Yes |
| Converter type |
Active video converter |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
| Weight |
38 g |
| Width |
44 mm |
| Depth |
200 mm |
| Height |
20 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
495 mm |
| Master (outer) case length |
339 mm |
| Master (outer) case height |
220 mm |
| Products per master (outer) case |
90 pc(s) |
| Packaging data |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
19 mm |
| Package weight |
47 g |
| Certification |
| Compliance certificates |
CE, RoHS |
Features
StarTech.com Mini DisplayPort to DVI Adapter - Active Mini DisplayPort to DVI-D Adapter Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Dongle, mDP to DVI Single-Link. Cable length: 0.12 m, Connector 1: Mini DisplayPort, Connector 2: DVI-D. Compliance certificates: CE, RoHS. Weight: 38 g, Width: 44 mm, Depth: 200 mm. Package width: 200 mm, Package depth: 220 mm, Package height: 19 mm. Quantity per pack: 1 pc(s)
Product Description
Connect a DVI monitor to a single-mode DisplayPort output from your computer
The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
