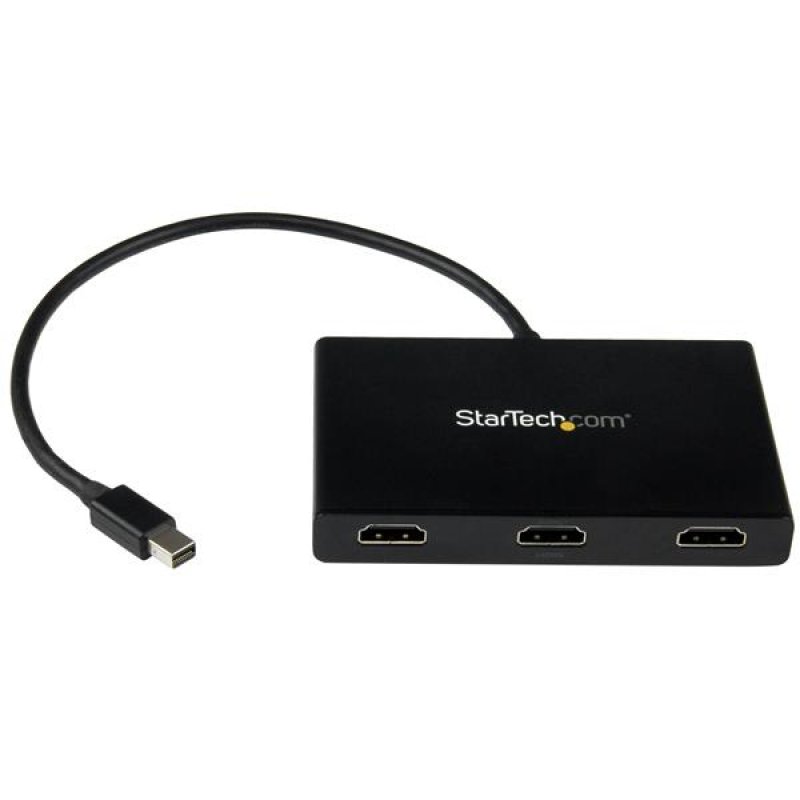

Use this adapter to connect three independent displays to a single mDP 1.2 port
This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows device that supports DisplayPort 1.2, such as models of the Lenovo Think Pad and Microsoft Surface. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won’t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
The MSTMDP123HD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Maximize your productivity by connecting up to three independent displays to your computer using the MST Hub
- Connect your Mini DisplayPort computer to HDMI televisions, monitors or projectors, avoiding the hassle of additional HDMI adapters
- Increase external video performance with support for resolutions up to 4K
Specs
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging content |
| Manual |
Y |
| AC adapter included |
Y |
| Included power plug types |
AU,EU,NA,UK |
| Ports & interfaces |
| Video ports quantity |
3 |
| Video port type |
Mini DisplayPort |
| Video out |
3x HDMI |
| Weight & dimensions |
| Width |
66 mm |
| Depth |
114 mm |
| Height |
14 mm |
| Weight |
120 g |
| Power |
| Input voltage |
100 - 240 V |
| Input current |
0.5 A |
| Output voltage |
5 V |
| Output current |
3 A |
| Power consumption (typical) |
15 W |
| AC input voltage |
100 - 240 V |
| Packaging data |
| Package width |
151 mm |
| Package depth |
240 mm |
| Package height |
63 mm |
| Package weight |
514 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
50 - 90% |
| Colour |
| Colour of product |
Black |
| Product colour |
Black |
| Packaging content |
| AC adapter included |
Y |
| Weight & dimensions |
| Width |
66 mm |
| Depth |
114 mm |
| Height |
14 mm |
| Weight |
119 g |
| Power |
| External power adapter |
Y |
| Input voltage |
100 - 240 V |
| Technical details |
| Maximum resolution |
3840 x 2160 pixels |
| Supported resolutions |
1024x768\n1280x720\n1920x1080\n1920x1200\n2560x1440\n2560x1600 |
| Plug and Play |
Y |
| Housing material |
Plastic |
| Compatible operating systems |
Windows 10 (32/64)\nWindows 8/8.1 (32/64)\nWindows 7(32/64) |
| Chipset |
STDP4320 |
| Packaging data |
| Package width |
152 mm |
| Package depth |
240 mm |
| Package height |
63 mm |
| Package weight |
519 g |
| AC adapter included |
Y |
| Other features |
| Product colour |
Black |
| Housing material |
Plastic |
| Plug and Play |
Y |
| Supported resolutions |
1024x768\n1280x720\n1920x1080\n1920x1200\n2560x1440\n2560x1600 |
| Compatible operating systems |
Windows 10 (32/64)\nWindows 8/8.1 (32/64)\nWindows 7(32/64) |
| Chipset |
STDP4320 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
50 - 90% |
| Logistics data |
| Master (outer) case width |
33.5 cm |
| Master (outer) case length |
50 cm |
| Master (outer) case height |
22 cm |
| Products per master (outer) case |
10 pc(s) |
| Video |
| Supported video modes |
1080p,720p |
| Maximum video resolution |
3840 x 2160 pixels |
| Ports & interfaces |
| Host interface |
Mini DisplayPort |
| Output interface |
HDMI |
| Audio |
| Audio support |
Y |
| Features |
| Maximum resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| Housing material |
Plastic |
| HD type |
4K Ultra HD |
| Maximum refresh rate |
30 Hz |
| Supported graphics resolutions |
1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160 |
| Plug and Play |
Y |
| Supported video modes |
1080p,720p |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Ente |
Features
StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to HDMI MST Hub - Triple 1080p or Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x HDMI. Video port type: Mini DisplayPort, Video out: 3x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Plastic. AC input voltage: 100 - 240 V, Input current: 0.5 A, Output voltage: 5 V. Width: 66 mm, Depth: 114 mm, Height: 14 mm. Package width: 151 mm, Package depth: 240 mm, Package height: 63 mm
Product Description
Use this adapter to connect three independent displays to a single mDP 1.2 port
This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows device that supports DisplayPort 1.2, such as models of the Lenovo Think Pad and Microsoft Surface. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won’t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
The MSTMDP123HD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Maximize your productivity by connecting up to three independent displays to your computer using the MST Hub
- Connect your Mini DisplayPort computer to HDMI televisions, monitors or projectors, avoiding the hassle of additional HDMI adapters
- Increase external video performance with support for resolutions up to 4K
