Stock Status: 1x unit in stock
Enhance a server or workstation's capabilities with dual 10 Gigabit fiber or copper connectivity using the SFP transceivers of your choice

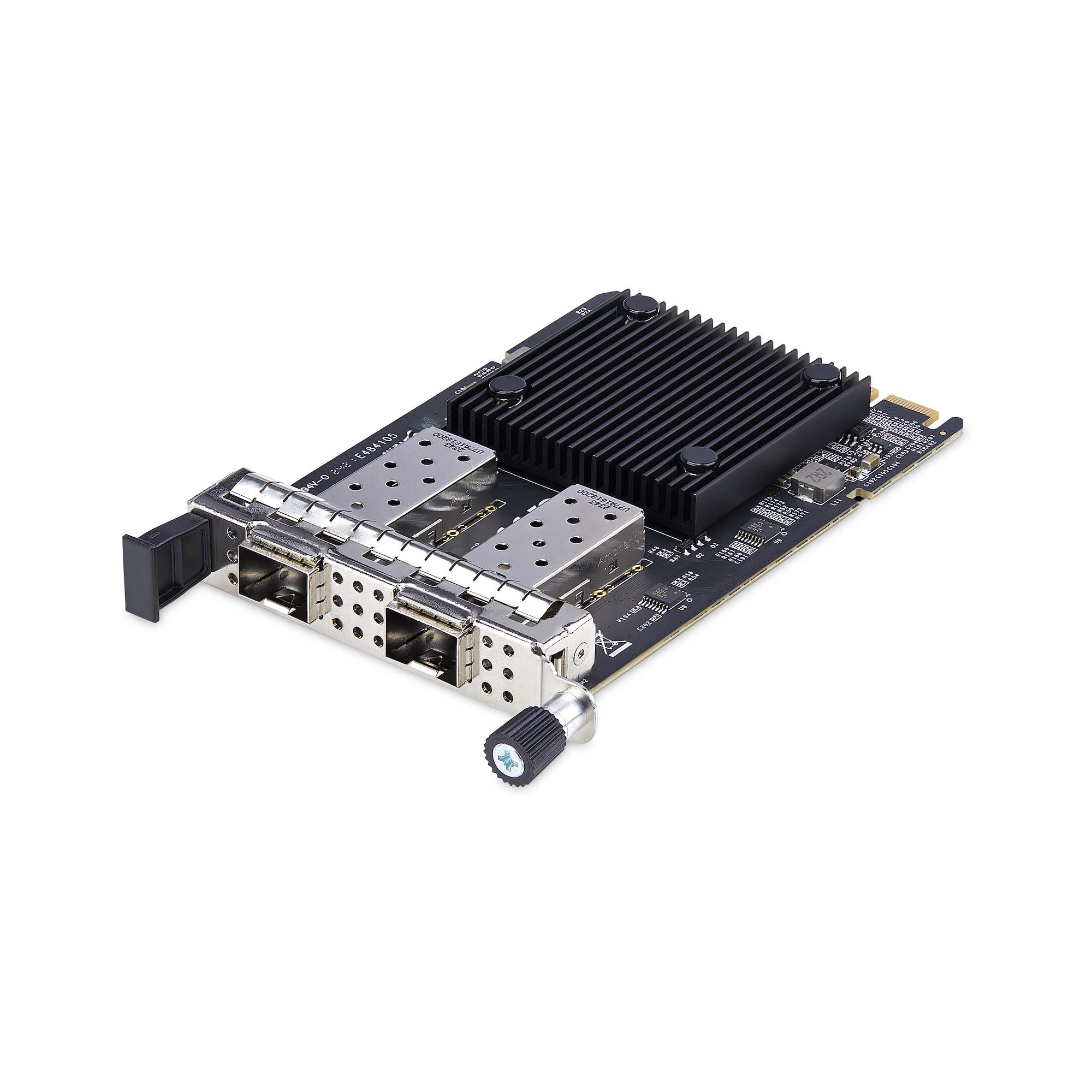

The 2-port 10Gbps OCP network interface card with the Intel X710-BM2 controller adds two open SFP+ slots to a server, increasing connectivity options and network performance.
OCP (Open Compute Project) Interface
The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.
10GbE and 1GbE SFP Support
This card supports 1000Base-T/SX/LX/EX and 10GBase-T/SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-latency connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.
Advanced Features
Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.
The StarTech.com Advantage
Specs
| Networking |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 1588, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae |
| Wake-on-LAN ready |
Yes |
| Full duplex |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Fiber mode structure |
Multi-mode, Single-mode |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Weight & dimensions |
| Width |
85 mm |
| Depth |
132 mm |
| Height |
15 mm |
| Weight |
104 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
OCP 3.0 |
| Interface |
Fiber |
| Fiber ports quantity |
2 |
| Fiber optic connector |
SFP+ |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Design |
| Internal |
Yes |
| Component for |
PC/Server |
| Product colour |
Black |
| Chipset |
Intel® X710-BM2 |
| LED indicators |
Activity, Link |
| Logistics data |
| Master (outer) case width |
605 mm |
| Master (outer) case length |
325 mm |
| Master (outer) case height |
305 mm |
| Products per master (outer) case |
80 pc(s) |
| Packaging data |
| Package width |
145 mm |
| Package depth |
215 mm |
| Package height |
35 mm |
| Package weight |
170 g |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
Features
StarTech.com 2-Port 10Gbps SFP+ OCP 3.0 Server Network Card with Intel X710, SFF 4C+ Compatible, Dual-Port OCP NIC, Works with Windows & Linux. Internal. Connectivity technology: Wired, Host interface: OCP 3.0, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black
Product Description
Enhance a server or workstation's capabilities with dual 10 Gigabit fiber or copper connectivity using the SFP transceivers of your choice
The 2-port 10Gbps OCP network interface card with the Intel X710-BM2 controller adds two open SFP+ slots to a server, increasing connectivity options and network performance.
OCP (Open Compute Project) Interface
The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.
10GbE and 1GbE SFP Support
This card supports 1000Base-T/SX/LX/EX and 10GBase-T/SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-latency connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.
Advanced Features
Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.
The StarTech.com Advantage
