Stock Status: 1x unit in stock
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

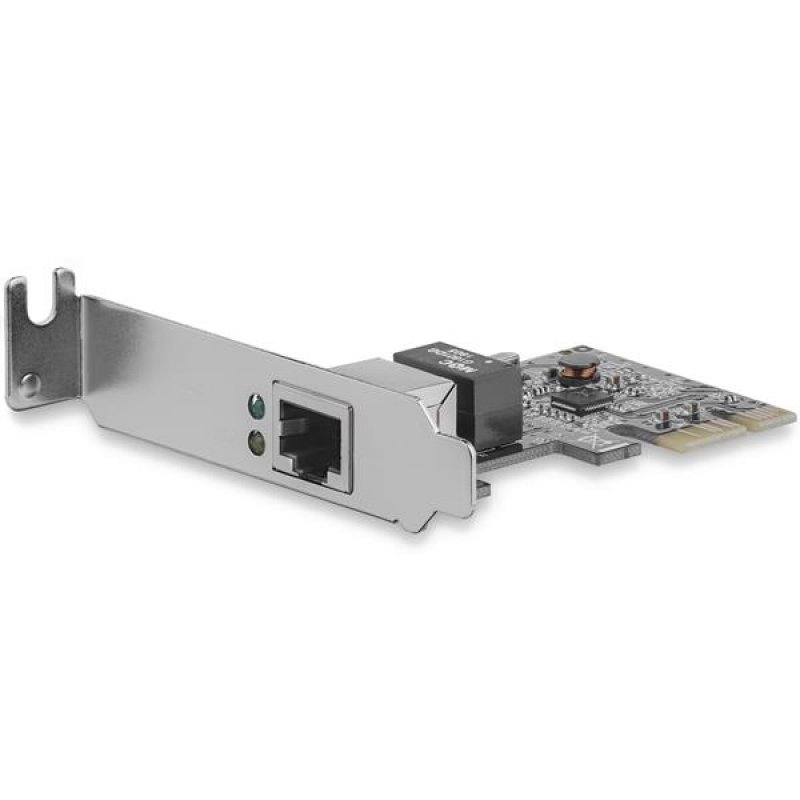

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
Specs
| Bandwidth |
| Data transfer rate (max) |
1000 Mbit/s |
| Full duplex |
Y |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Chipset |
Realtek RTL8111E |
| Ethernet LAN |
Y |
| Cabling technology |
10/100/1000BaseT(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
1000 Mbit/s |
| Auto MDIX IEEE |
Y |
| Full duplex |
Y |
| Jumbo frames support |
Y |
| Supported network protocols |
CSMA/CD |
| Jumbo frames |
9000 |
| System requirements |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 |
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported |
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Weight & dimensions |
| Width |
18 mm |
| Depth |
70 mm |
| Height |
49 mm |
| Weight |
27 g |
| Package width |
176 mm |
| Package depth |
144 mm |
| Package height |
34 mm |
| Package weight |
127 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Internal |
Y |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
0 - 100 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Packaging content |
| Manual |
Y |
| Other features |
| Power LED |
Y |
| Link/Act LED |
Y |
| Chipset |
Realtek RTL8111E |
| Jumbo frames |
9000 |
| Design |
| Internal |
Y |
| Chipset |
Realtek - RTL8111H |
| LED indicators |
Activity, Link |
| Certification |
CE, FCC, REACH |
| Performance |
| Auto MDIX IEEE |
Y |
| Packaging data |
| Manual |
Y |
| Package width |
173 mm |
| Package depth |
144 mm |
| Package height |
31 mm |
| Package weight |
125 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging content |
| Manual |
Y |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
Product Description
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
