Startech.com PCIe Serial Adapter Card PEX4S553 - CMS01
[PEX4S553]

Name: Startech.com PCIe Serial Adapter Card PEX4S553 - CMS01
Brand: startech.com
SKU: PEX4S553
Price: 73.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: PEX4S553

Manufacturer: startech.com

Condition: New

Short Description:

Startech.com PCIe Serial Adapter Card PEX4S553

£73.00
£87.60 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

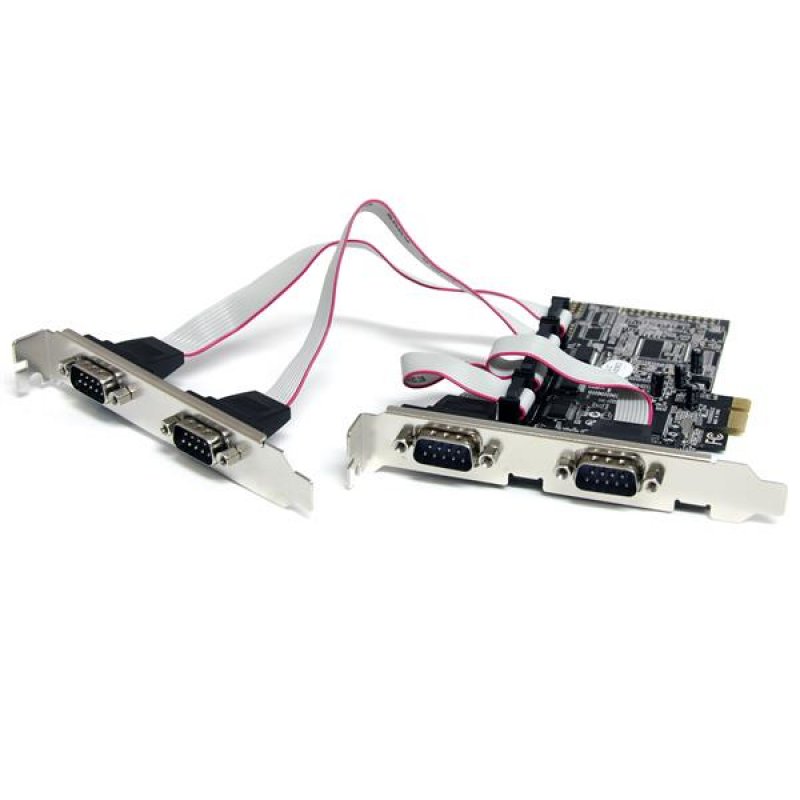

Add 4 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot
The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Native single-chip, single lane PCI Express chipset delivers true PCIe performance, up to 48% more efficient than bridge chip designs
- Standard and low profile/half-height brackets included to ensure fitment in any system

Reviews

Specs

System requirements
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 H
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Other operating systems supported	Windows Embedded POSReady 2009,Windows Embedded Standard 2009,Windows XP Embedded
Ports & interfaces
Internal	Y
Host interface	PCIe
Output interface	Serial
Serial ports quantity	4
Serial interface type	RS-232
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Width	130 mm
Depth	120 mm
Height	19 mm
Weight	74 g
Package width	173 mm
Package depth	141 mm
Package height	28 mm
Package weight	220 g
Other features
Data transfer rate	0.128 Mbit/s
Mac compatibility	N
Compatible operating systems	Windows XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit), Windows Server 2003(32/64 bit), 2008 R2, Linux
Design
Internal	Y
Mean time between failures (MTBF)	26280 h
Certification	CE, FCC, REACH
Performance
Chipset	Moschip MCS9904CV-AA
Packaging data
Package width	141 mm
Package depth	170 mm
Package height	30 mm
Package weight	230 g
Quantity	1
Mounting brackets included	Y
Drivers included	Y
Manual	Y
Features
Chipset	ASIX - MCS9904CV-AA
Baud rate	128 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5,6,7,8
Technical details
Sustainability certificates	RoHS
