Stock Status: 1x unit in stock
AVB | PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS

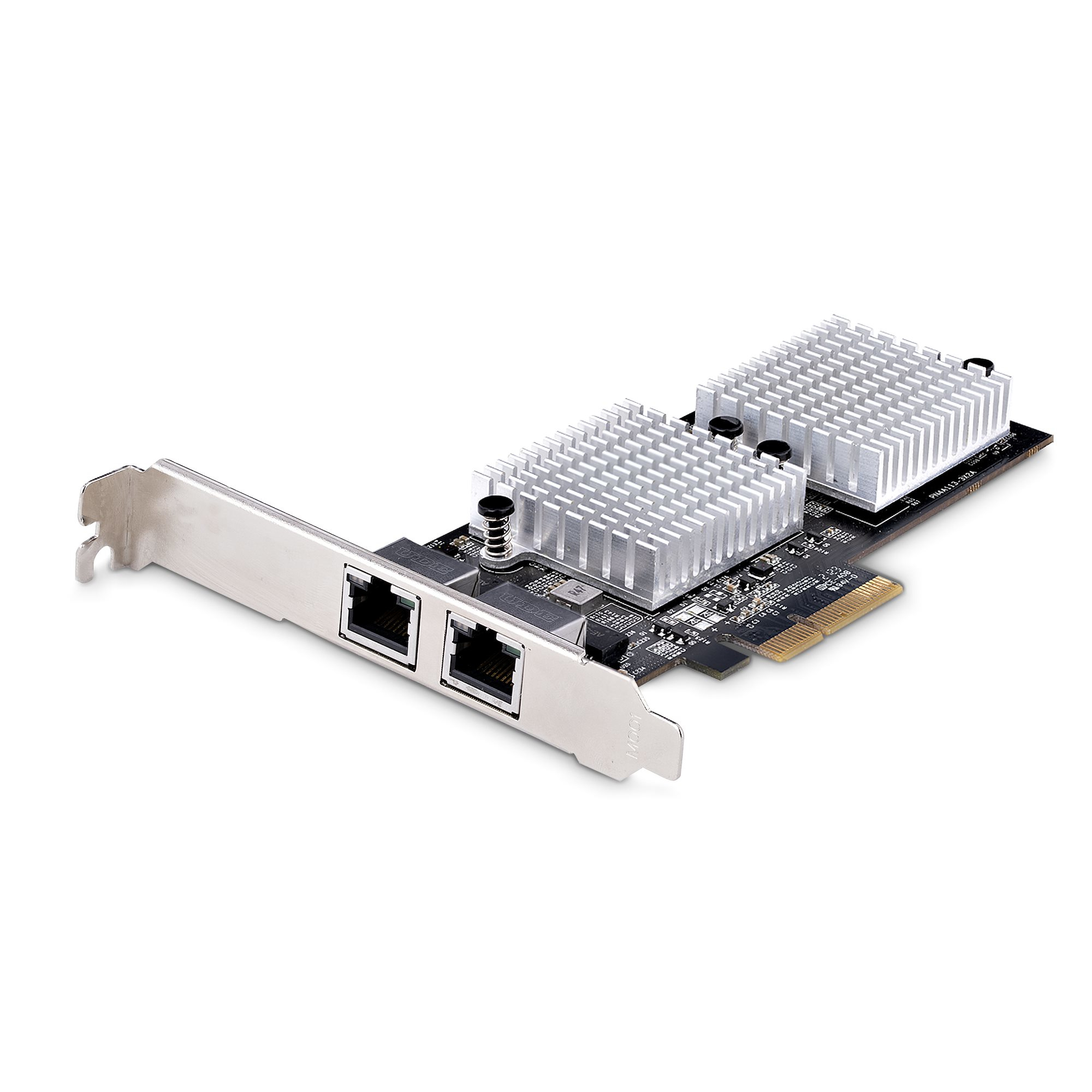

Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds
This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware
NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.
Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
The StarTech.com Advantage
Specs
| Networking |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000,2500,5000,10000 Mbit/s |
| Cabling technology |
10GBase-T |
| Wake-on-LAN ready |
Yes |
| Auto MDIX IEEE |
Yes |
| Full duplex |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
16000 |
| VLAN tagging |
Yes |
| Maximum operating distance |
100 m |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Weight & dimensions |
| Width |
20 mm |
| Depth |
145 mm |
| Height |
65 mm |
| Weight |
116 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
2 |
| PCI version |
3.0 |
| PCI Card form factor |
Full-height (low-profile) |
| Operational conditions |
| Operating temperature (T-T) |
5 - 50 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Design |
| Internal |
Yes |
| Component for |
PC/Server |
| Product colour |
Black |
| Chipset |
Marvell AQC113CS |
| LED indicators |
Activity, Link, Status |
| Logistics data |
| Master (outer) case width |
440 mm |
| Master (outer) case length |
370 mm |
| Master (outer) case height |
315 mm |
| Products per master (outer) case |
40 pc(s) |
| Packaging data |
| Package width |
145 mm |
| Package depth |
215 mm |
| Package height |
35 mm |
| Package weight |
208 g |
| Technical details |
| Compliance certificates |
CE |
| Packaging content |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black
Product Description
AVB | PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS
Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds
This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware
NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.
Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
The StarTech.com Advantage
