Stock Status: 1x unit in stock

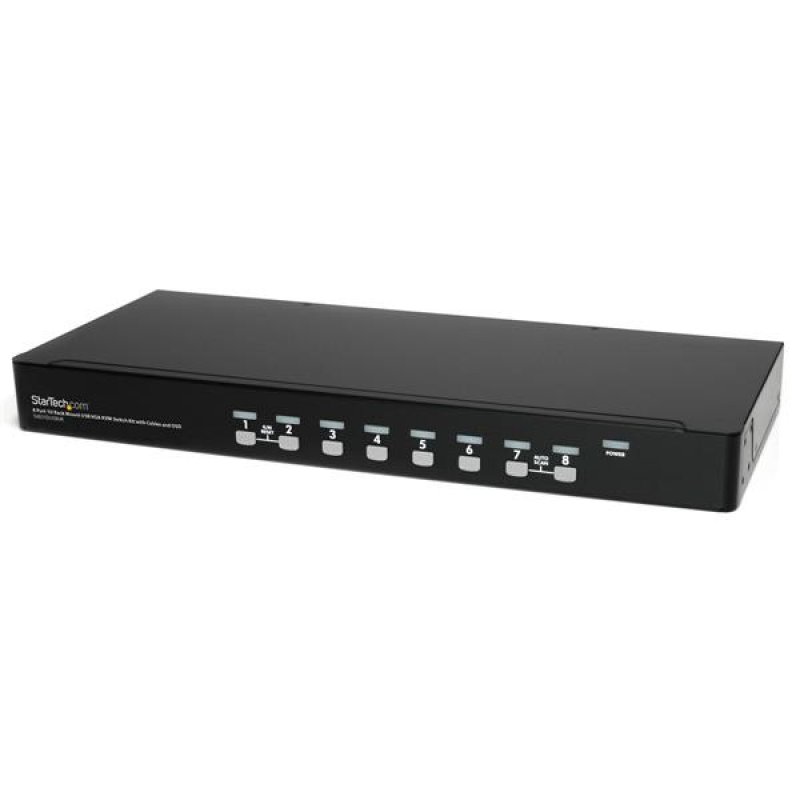

The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment
Specs
| Ports & interfaces |
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Console ports |
USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
9 |
| Console USB ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| USB connector type |
USB Type-A |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
435 mm |
| Depth |
180 mm |
| Height |
45 mm |
| Weight |
2.2 kg |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Input voltage |
100 - 240 V |
| Output voltage |
12 V |
| Output current |
1 A |
| Power consumption (typical) |
12 W |
| External power adapter |
Yes |
| Compatible power plug types |
AU, EU, UK, US |
| Display |
| On Screen Display (OSD) |
Yes |
| Packaging content |
| Cables included |
KVM |
| Manual |
Yes |
| AC adapter included |
Yes |
| Rack mount kit |
Yes |
| Other features |
| Audio support |
No |
| IP control |
No |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Steel |
| Cascadable |
Yes |
| LED indicators |
Power |
| Hot keys |
Yes |
| Certification |
CE, FCC, TAA, REACH |
| Performance |
| Maximum resolution |
1920 x 1440 pixels |
| Maximum analog resolution |
1920 x 1440 pixels |
| Plug and Play |
Yes |
| Daisy chain |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Packaging data |
| Package width |
262 mm |
| Package depth |
606 mm |
| Package height |
121 mm |
| Package weight |
4.7 kg |
| Sustainability |
| Compliance certificates |
RoHS |
Features
StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Maximum resolution: 1920 x 1440 pixels, Maximum analog resolution: 1920 x 1440 pixels. Product colour: Black, Rack capacity: 1U, Housing material: Steel. Input voltage: 100 - 240 V, Output voltage: 12 V, Output current: 1 A. Compliance certificates: RoHS
Product Description
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment
