Stock Status: 1x unit in stock

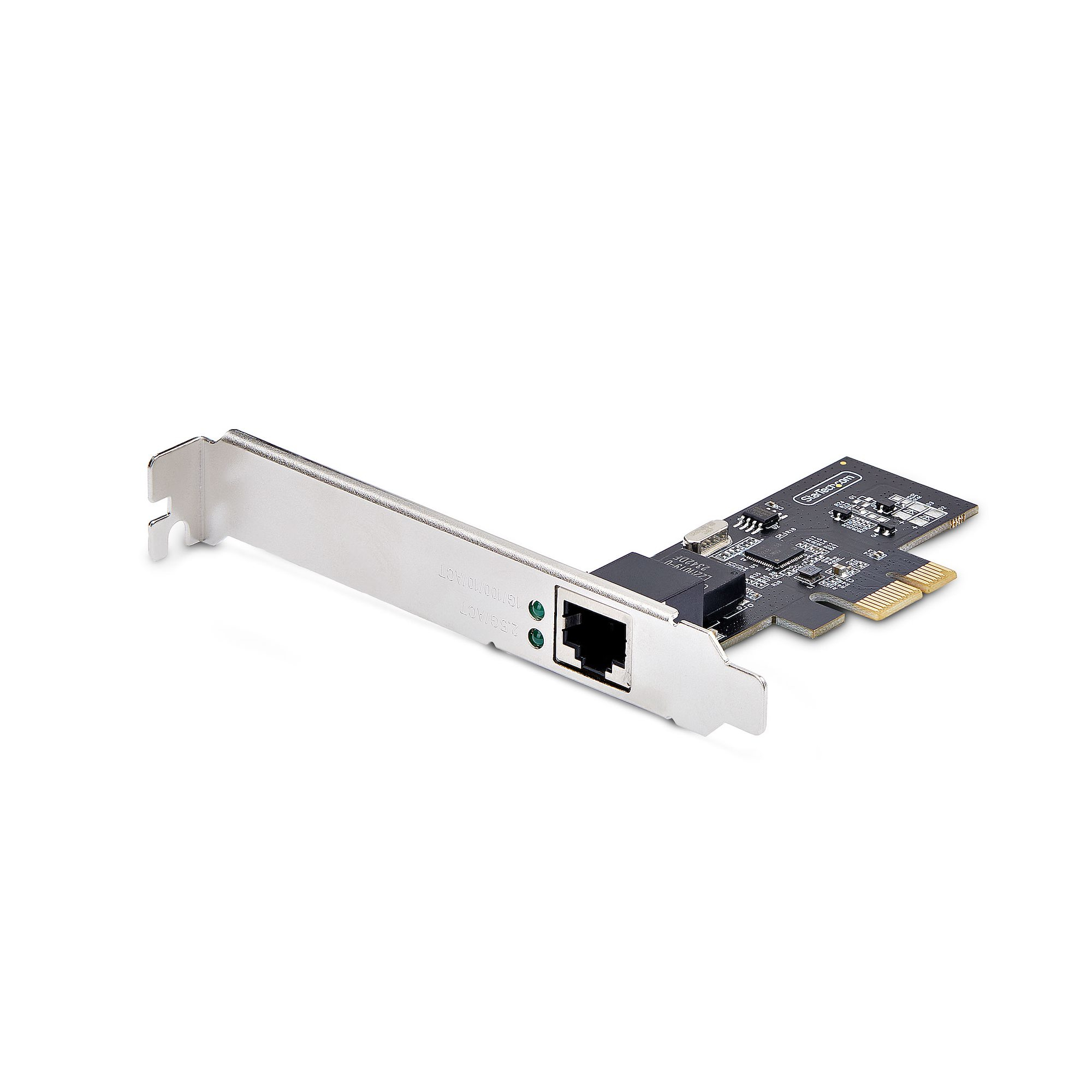

PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support
This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTP, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds over Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This Ethernet NIC card is compatible with Windows, Windows Server, and Linux.
This card supports the following advanced features: PXE boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.
The StarTech.com Advantage
Specs
| Networking |
| Maximum data transfer rate |
2500 Mbit/s |
| Networking standards |
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready |
Yes |
| Auto MDIX IEEE |
Yes |
| Full duplex |
Yes |
| Jumbo frames support |
Yes |
| Auto-negotiation |
Yes |
| Jumbo frames |
9000 |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2019, Windows Server 2022 |
| Weight & dimensions |
| Width |
89 mm |
| Depth |
121 mm |
| Height |
15 mm |
| Weight |
100 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| PCI version |
2.0 |
| Operational conditions |
| Operating temperature (T-T) |
5 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Design |
| Internal |
Yes |
| Component for |
PC/Server |
| Product colour |
Black |
| Chipset |
Intel I225-V |
| LED indicators |
Yes |
| Logistics data |
| Master (outer) case width |
605 mm |
| Master (outer) case length |
385 mm |
| Master (outer) case height |
325 mm |
| Products per master (outer) case |
80 pc(s) |
| Packaging data |
| Package width |
170 mm |
| Package depth |
142 mm |
| Package height |
30 mm |
| Packaging content |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
Features
StarTech.com 1-Port 2.5Gbps NBASE-T PCIe Network Card, Intel® I225-V, Single-Port Computer Network Card, Ethernet MultiGigabit NIC, PCI Express Server LAN Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black
Product Description
PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support
This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTP, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds over Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This Ethernet NIC card is compatible with Windows, Windows Server, and Linux.
This card supports the following advanced features: PXE boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.
