Stock Status: 1x unit in stock

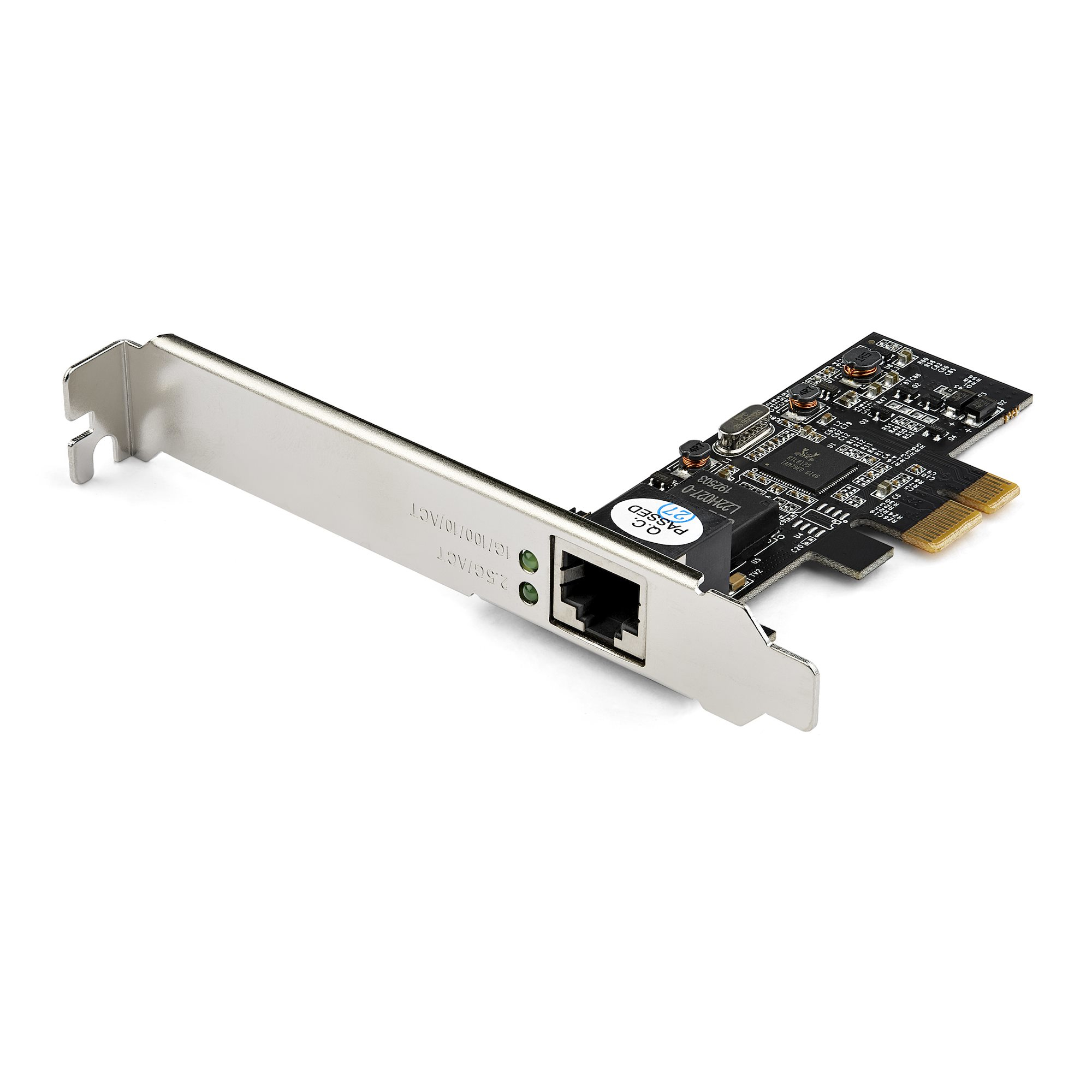

PCI Express LAN Card | Windows ®, MacOS & Linux | Realtek RTL8125| x4 PCIe
This single-port 2.5Gbps PCIe network card offers a versatile and low-cost way to deploy 2.5GbE network connectivity. It adds one copper Ethernet port to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5 Gbps, 1G, 100Mbps, 10Mbps.
Cost-Effective Multi-Gigabit Ethernet Solution
The 2.5GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 2.5GBASE-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps over your CAT5e cabling (up to 100 m depending on the network configuration).
Optimal Technology for Optimal Performance
The network adapter card adds one Ethernet port to your workstation through a x4 PCIe slot. It features 2.5GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The network card also supports NBASE-T and additional features including 16K Jumbo Frames, Auto-MDIX and Wake-on-LAN (WoL).
Efficient Ethernet
The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE802.3u supports the PCIe 2.0 interface for PC embedded applications. It provides up to a 250% increase in data rate over Gigabit Ethernet and requires no changes to existing cable infrastructure.
The ST2GPEX is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
- Compatible with both 2.5GBASE-T and NBASE-T specifications
- Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a
Specs
| Networking |
| Maximum data transfer rate |
2500 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Auto MDIX IEEE |
Yes |
| Full duplex |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, W |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Weight & dimensions |
| Width |
120 mm |
| Depth |
80 mm |
| Height |
20 mm |
| Weight |
138 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| Operational conditions |
| Operating temperature (T-T) |
5 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Other features |
| Quick start guide |
Yes |
| Design |
| Internal |
Yes |
| Component for |
PC |
| Product colour |
Black |
| Chipset |
Realtek RTL8125 |
| LED indicators |
Yes |
| Certification |
CE, FCC, REACH |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Low-profile bracket |
Yes |
| Package width |
170 mm |
| Package depth |
142 mm |
| Package height |
30 mm |
| Technical details |
| Compliance certificates |
RoHS |
Features
StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black
Product Description
PCI Express LAN Card | Windows ®, MacOS & Linux | Realtek RTL8125| x4 PCIe
This single-port 2.5Gbps PCIe network card offers a versatile and low-cost way to deploy 2.5GbE network connectivity. It adds one copper Ethernet port to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5 Gbps, 1G, 100Mbps, 10Mbps.
Cost-Effective Multi-Gigabit Ethernet Solution
The 2.5GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 2.5GBASE-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps over your CAT5e cabling (up to 100 m depending on the network configuration).
Optimal Technology for Optimal Performance
The network adapter card adds one Ethernet port to your workstation through a x4 PCIe slot. It features 2.5GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The network card also supports NBASE-T and additional features including 16K Jumbo Frames, Auto-MDIX and Wake-on-LAN (WoL).
Efficient Ethernet
The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE802.3u supports the PCIe 2.0 interface for PC embedded applications. It provides up to a 250% increase in data rate over Gigabit Ethernet and requires no changes to existing cable infrastructure.
The ST2GPEX is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
- Compatible with both 2.5GBASE-T and NBASE-T specifications
- Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a
