StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V Chip, Quad Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface Card, PCI - C2000
[PR42GI-NETWORK-CARD]

Name: StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V Chip, Quad Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface Card, PCI - C2000
Brand: STARTECH
SKU: PR42GI-NETWORK-CARD
Price: 161.00 GBP
Availability: InStock

Part Number: PR42GI-NETWORK-CARD

Manufacturer: STARTECH

Condition: New

Short Description:

StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V Chip, Quad Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface Card, PCI Express 2.0 (PR42GI-NETWORK-CARD) - Network Adapter - PCIe 2.0 X4 - 10M/100M/1G/2.5 Gigabit Ethernet X 4 - Black PR42GI-NETWORK-CARD

£161.00
£193.20 - Inc VAT

Stock Status: 1x unit in stock

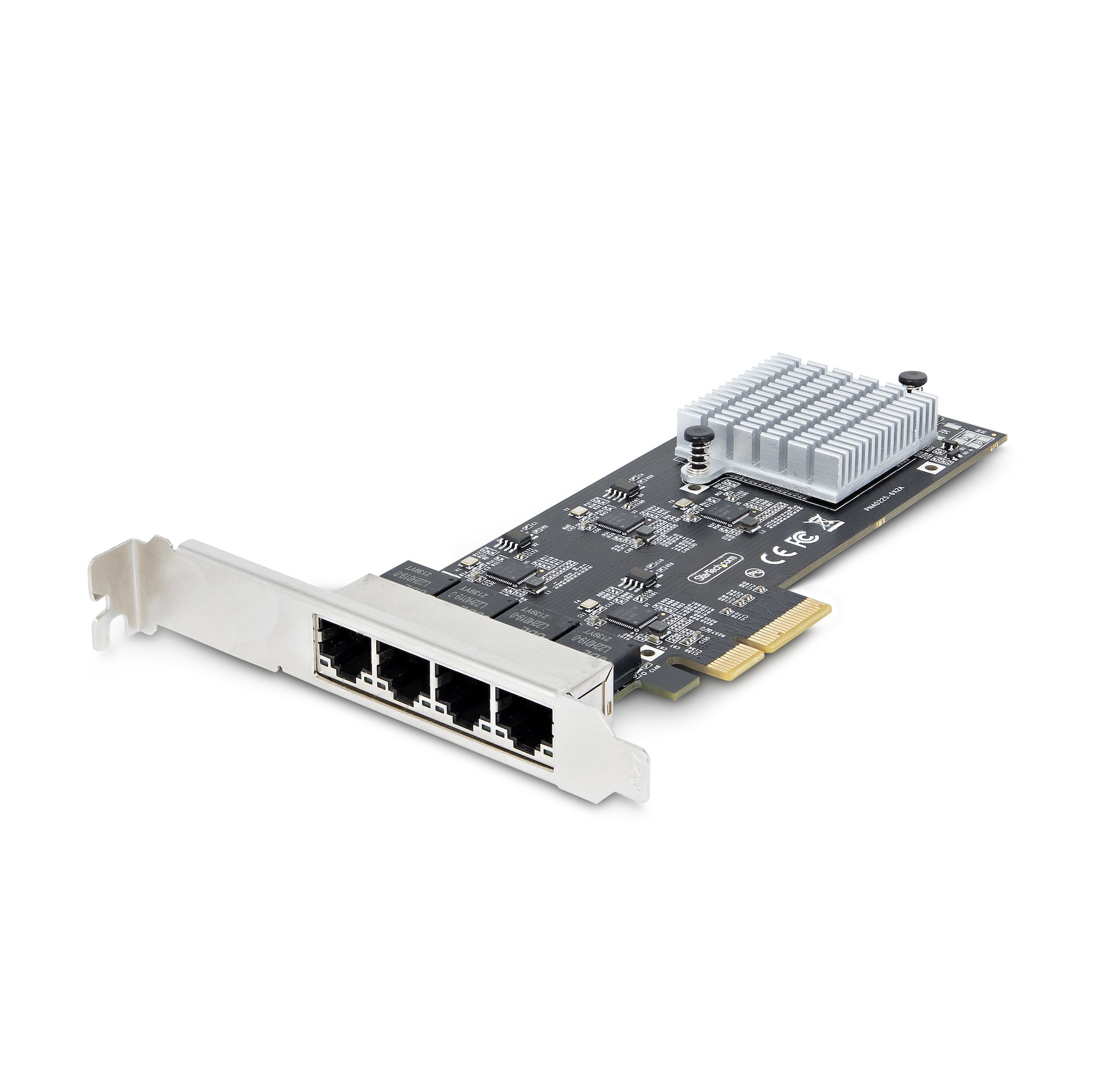

Quad-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support

This quad-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across four 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, four Intel I225-V chipsets are used, providing independent Ethernet controllers to each port.

Enhance Existing Hardware

The network interface card connects via an available x4 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

The StarTech.com Advantage

Reviews

Specs

Networking
Maximum data transfer rate	2500 Mbit/s
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2000,2500 Mbit/s
Copper ethernet cabling technology	10BASE-TX, 100BASE-TX, 1000BASE-T, 2500BASE-T
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Quality of Service (QoS) support	Yes
VLAN tagging	Yes
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2019, Windows Server 2022
Weight & dimensions
Width	180 mm
Depth	120 mm
Height	22 mm
Weight	100 g
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
PCI version	2.0
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Design
Internal	Yes
Component for	PC/Server
Product colour	Black
Chipset	Intel I225-V
LED indicators	Activity, Link
Logistics data
Master (outer) case width	605 mm
Master (outer) case length	325 mm
Master (outer) case height	385 mm
Products per master (outer) case	80 pc(s)
Packaging data
Low-profile bracket	Yes
Package width	170 mm
Package depth	142 mm
Package height	30 mm
Package weight	130 g
Packaging content
Quick installation guide	Yes

Features

StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black

Product Description

Quad-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support

This quad-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across four 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, four Intel I225-V chipsets are used, providing independent Ethernet controllers to each port.

Enhance Existing Hardware

The network interface card connects via an available x4 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

The StarTech.com Advantage
