Stock Status: 1x unit in stock
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.
The performance and reliability you demand in network connectivity
This Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
Easy installation

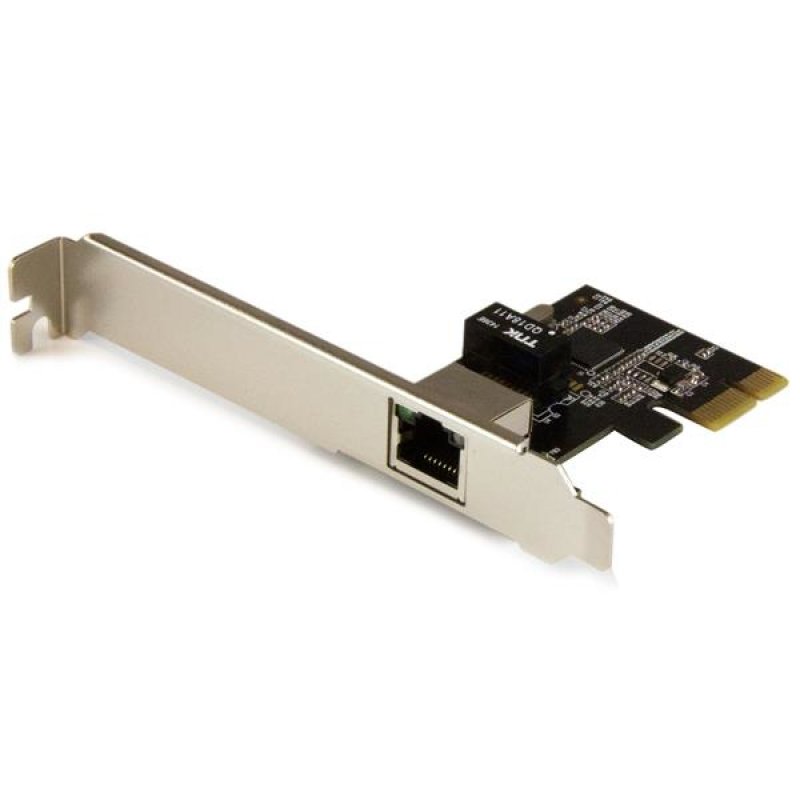

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
| Networking |
| Maximum data transfer rate |
2000 Mbit/s |
| Networking standards |
IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| Wake-on-LAN ready |
Y |
| Auto MDIX IEEE |
Y |
| Full duplex |
Y |
| Auto-negotiation |
Y |
| Jumbo frames support |
Y |
| VLAN tagging |
Y |
| System requirements |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Ente |
| Linux operating systems supported |
Y |
| Server operating systems supported |
Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Weight & dimensions |
| Width |
66 mm |
| Depth |
120 mm |
| Height |
18 mm |
| Weight |
35 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| Operational conditions |
| Operating temperature (T-T) |
5 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Other features |
| Chipset |
Intel I210-AT |
| Design |
| Internal |
Y |
| Product colour |
Black, Metallic |
| LED indicators |
Activity |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
| Chipset |
Intel® I210-AT |
| Packaging data |
| Manual |
Y |
| Mounting brackets included |
Y |
| Package width |
142 mm |
| Package depth |
170 mm |
| Package height |
28 mm |
| Package weight |
100 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging content |
| Mounting brackets included |
Y |
| Manual |
Y |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Black, Metallic
Product Description
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.
The performance and reliability you demand in network connectivity
This Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
