Stock Status: 1x unit in stock

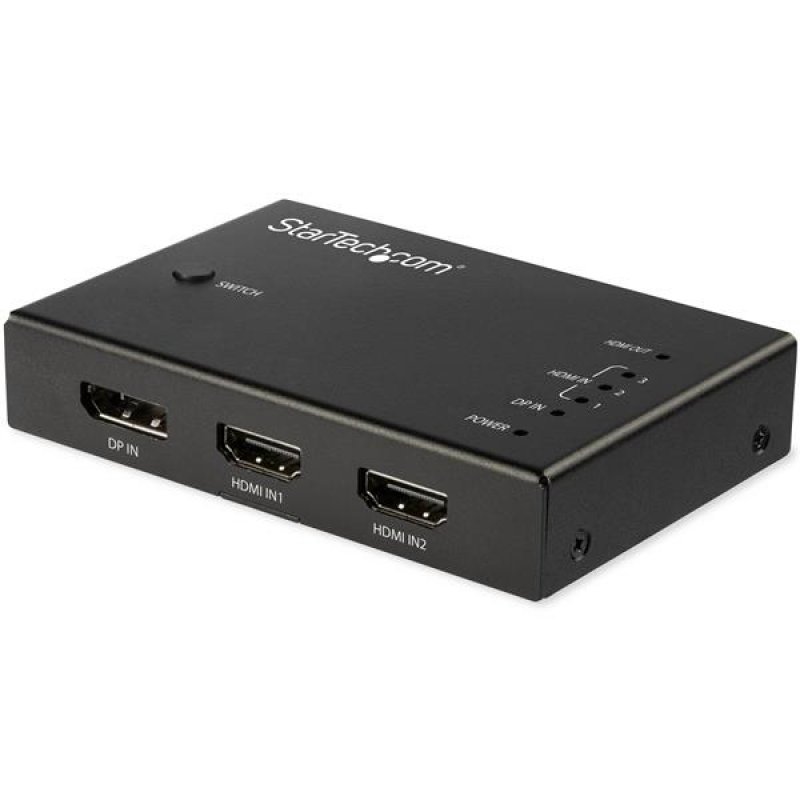

Multi-Port HDMI Switch Box | Automatic Switcher | IR Remote Control
This 4-input HDMI video switch lets you share an HDMI 2.0 display or projector with three HDMI video sources and one DisplayPort video source.
Enjoy Astonishing Picture Quality
The multi-port HDMI switch lets you deliver the capabilities of your HDMI 2.0 video sources to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switcher box works with HDMI 2.0 displays with output resolutions of up to 4096 x 2160 at 60Hz.
With full support for HDMI 2.0 devices and 4:4:4 chroma subsampling, this 4K HDMI video switcher supports a bandwidth up to 18Gbps. As well, the switch supports DisplayPort 1.2 with HBR2, making it ideal for high-resolution computer tasks.
Flexible Input Options
This multi-port video switcher offers four input options, including one DisplayPort and three HDMI ports, enabling you to switch from one of four sources to your HDMI video display. The mix-and-match input options provide users with a flexible solution so they are not limited to one specific input.
Hassle-Free Operation with Automatic Switching
This HDMI switcher box ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-ray player as soon as it's switched on.
This automatic HDMI switch also supports manual operation, using the included IR remote control or the built-in front-panel toggle switch.
VS421HDDP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Experience astonishing picture quality with support for resolutions up to 4K 60Hz
- Hassle-free operation with automatic 4-port switching and an included IR remote control
- Unique input combination with both HDMI and DisplayPort ports
Specs
| Packaging content |
| Remote control included |
Yes |
| Manual |
Yes |
| Mounting brackets included |
Yes |
| Plug adapter type |
NA/JP, UK, EU, ANZ |
| Screws included |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Ports & interfaces |
| Video port type |
HDMI/DisplayPort |
| HDMI version |
2.0 |
| HDMI in |
3 |
| Number of HDMI outputs |
1 |
| DisplayPorts quantity |
1 |
| 3.5 mm (1/8-inch) in |
Yes |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
66 mm |
| Depth |
100 mm |
| Height |
20 mm |
| Weight |
300 g |
| Power |
| AC input voltage |
100 - 240 V |
| AC adapter input current |
0.3 A |
| AC adapter output voltage |
5 V |
| AC adapter output current |
1 A |
| Power plug type |
Type M |
| Certificates |
| Certification |
CE, FCC, REACH |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Packaging data |
| Package width |
160 mm |
| Package depth |
125 mm |
| Package height |
65 mm |
| Package weight |
400 g |
| Features |
| Material |
Metal |
| Product colour |
Black |
| HDCP |
Yes |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| LED indicators |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Audio output channels |
7.1 channels |
| HDCP version |
2.2 |
