Stock Status: 1x unit in stock

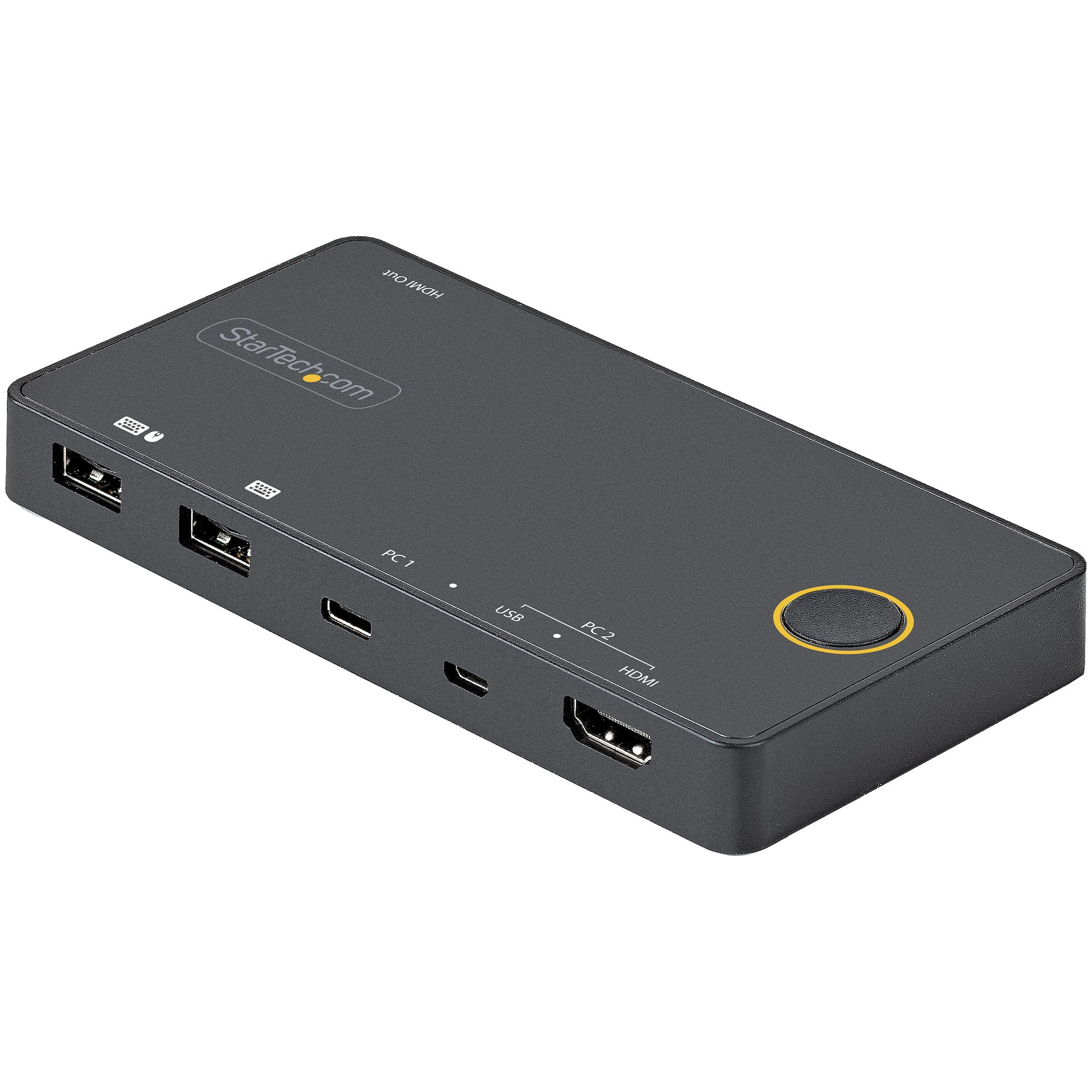

USB-C & USB-A/HDMI Desktop KVM Switch | 2 Port | 4K 60Hz HDMI 2.0This 2-port USB-C™ / USB-A KVM enables you to easily switch between a USB Type-C or Thunderbolt™ 3 desktop/laptop computer and a USB-A and HDMI desktop/laptop computer, using a single keyboard, HDMI® monitor and mouse.Easy to Setup and UseUtilizing USB-C with DP alt-mode and USB-A and HDMI this compact KVM switch only requires three host cable connections, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.PC 1PC 21x HDMI 2.0+1x Micro USB-B1x USB Type-C(Video + Data)For easy operation, the KVM features a single button that toggles between connected computers.Supports 4K 60Hz ResolutionsThe USB-C KVM switch supports UHD resolutions up to 4K (3840 x 2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.Compact and PortableAlong with the USB-C design that ensures cabling requirements are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.Guaranteed CompatibilityThe KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.The SV221HUC4K is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| HDMI ports quantity |
2 |
| HDMI version |
2.0 |
| DisplayPort version |
1.2 |
| USB connector type |
Micro-USB B, USB Type-A, USB Type-C |
| Weight & dimensions |
| Width |
138 mm |
| Depth |
70 mm |
| Height |
15 mm |
| Weight |
200 g |
| Operational conditions |
| Operating temperature (T-T) |
5 - 55 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Power |
| USB powered |
Y |
| Display |
| Built-in display |
N |
| On Screen Display (OSD) |
N |
| Packaging content |
| Cables included |
HDMI, Micro-USB, USB Type-C to USB Type-C |
| Quick installation guide |
Y |
| Other features |
| IP control |
N |
| Design |
| Rack mounting |
N |
| Product colour |
Black |
| LED indicators |
Y |
| Push button |
Y |
| Hot keys |
N |
| Mean time between failures (MTBF) |
50000 h |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Video bandwidth |
60 Hz |
| Data transfer rate (max) |
0.48 Gbit/s |
| Daisy chain |
N |
| Chipset |
Parade - PS176, VLI - VL170, Terminus - FE1.1S |
| Audio channels |
7.1 |
| Number of displays supported |
1 |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
410 mm |
| Master (outer) case length |
470 mm |
| Master (outer) case height |
370 mm |
| Products per master (outer) case |
20 pc(s) |
| Packaging data |
| Package width |
120 mm |
| Package depth |
172 mm |
| Package height |
85 mm |
| Package weight |
250 g |
Features
StarTech.com 2 Port Hybrid USB-A + HDMI & USB-C KVM Switch - Single 4K 60Hz HDMI 2.0 Monitor - Compact Desktop and/or Laptop HDMI KVM Switch - USB Bus Powered - Thunderbolt 3 Compatible. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Mean time between failures (MTBF): 50000 h. Width: 138 mm, Depth: 70 mm, Height: 15 mm. Package width: 120 mm, Package depth: 172 mm, Package height: 85 mm
Product Description
USB-C & USB-A/HDMI Desktop KVM Switch | 2 Port | 4K 60Hz HDMI 2.0This 2-port USB-C™ / USB-A KVM enables you to easily switch between a USB Type-C or Thunderbolt™ 3 desktop/laptop computer and a USB-A and HDMI desktop/laptop computer, using a single keyboard, HDMI® monitor and mouse.Easy to Setup and UseUtilizing USB-C with DP alt-mode and USB-A and HDMI this compact KVM switch only requires three host cable connections, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.PC 1PC 21x HDMI 2.0+1x Micro USB-B1x USB Type-C(Video + Data)For easy operation, the KVM features a single button that toggles between connected computers.Supports 4K 60Hz ResolutionsThe USB-C KVM switch supports UHD resolutions up to 4K (3840 x 2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.Compact and PortableAlong with the USB-C design that ensures cabling requirements are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.Guaranteed CompatibilityThe KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.The SV221HUC4K is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
